Workshop Manual
Rolls- Royce Silver Shadow & Bentley T Series
-- -
Chapter M
Arrangement for Torque
0
Converter Transmission
without Packing Pieces
- - - - - - - -- - - - - - -- - -
I I -,
A 2.614 in. min. (6,641 cm.) , J I,
B 0.23 in. min. (5,95 mm.)
7
8
clearance between gearbox 1
Ah
and starter motor
C 0.138 in. min. (3,572 mm)
static clearance
0.251 in. max.
(6,35 mm.)
static clearance
D 1.362 in. -0.085 in.
(3,460 cm. -2,002 mm.)
E 1.467 in. +0.061 in. -0.044 in.
(3,731 cm. $1,588 mm.
-1,191 mrn.)
F 3.156 in. max. (8,017 cm.)
Arrangement for Four-Speed
Automatic Transmission
G 2.045 in. min. (5,199 cm.)
H 1.472 in. +0.063 in. -0.055 in.
(3,738 cm.
+1,588 mrn.
-1,193 mm.)
J 1.362 in. -0.085 in.
(3,460 cm. -2,002 mm.)
K 1.195 in. (3,034 cm.)
L 0.055 in. min. clearance
(1,193 mm.)
0.258 in. max. clearance
(6,352 mm.)
M 3.156 in. max. (8,017 cm.)
Arrangement for Torque
Converter Transmission with
Packing Pieces fitted
N 0.019 in. (0,398 mm.) min.
working clearance
P 0.108 in. (2,778 mm.) max.
flywheel float
Q 0.036 in. + or - 0.003 in.
(0,795 mm.
+ or - 0,760 mm.)
R 1.362 in. -0.085 in.
(3,460 cm. -2,002 mm.)
S 1.467 in 4-0.061 in. -0.044 in.
(3,730 cm.
f 1,159 mm.
-1,191 mm.)

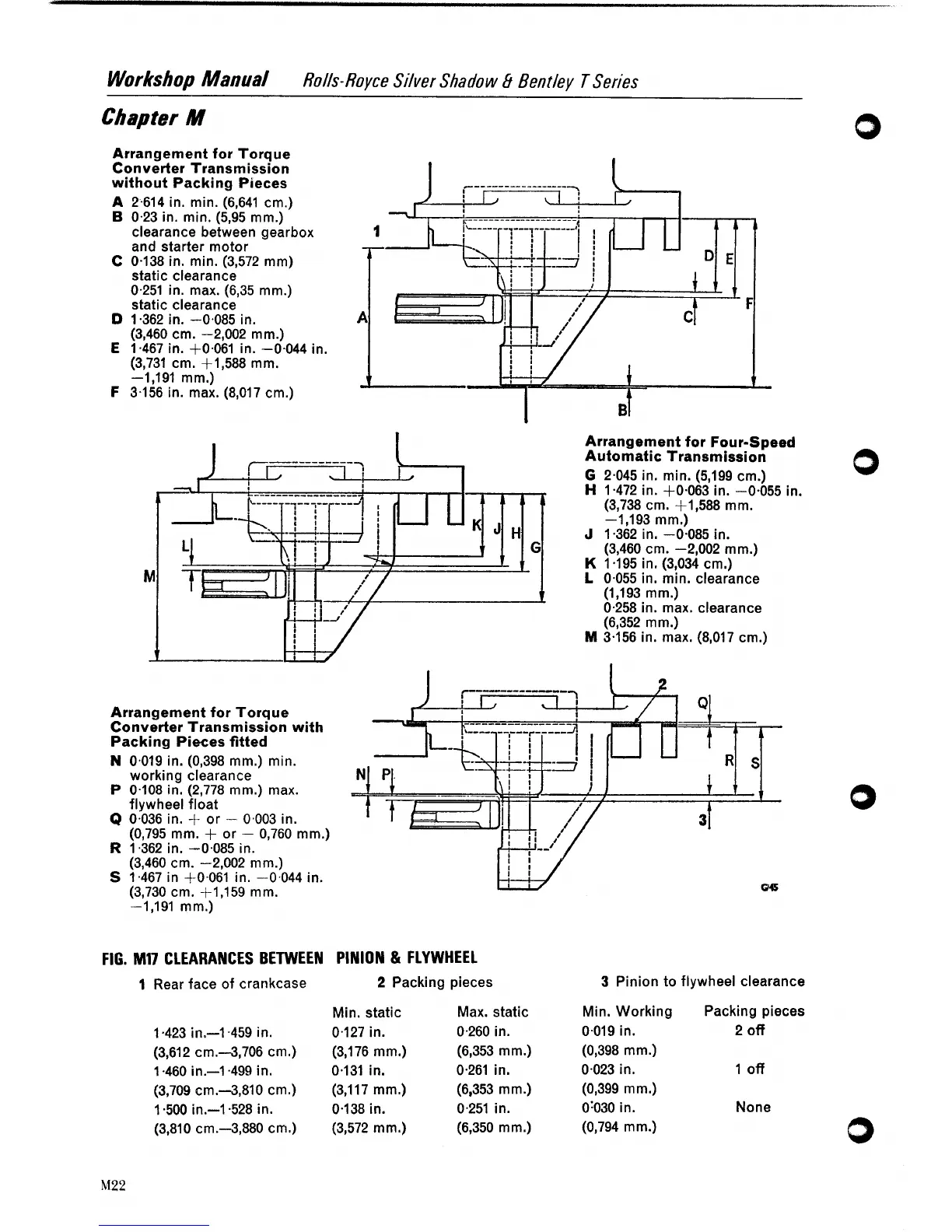

FIG. MI7 CLEARANCES BETWEEN PINION & FLYWHEEL
1 Rear face of crankcase
2 Packing pieces
Min. static Max. static
1.423
i n.-I ,459 in.
0.127 in. 0.260 in.
(3,612
cm.--3,706 cm.)
(3,176 mm.) (6,353 mm.)
1.460 in .-I .499 in.
0.131 in. 0.261 in.
(3,709
cm.-3,810 cm.)
(3,117 mm.) (6,353 mm.)
1.500 in.-1.528 in.
0.138 in. 0.251 in.
(3,810
cm.-3,880 cm.) (3,572 mm.)
(6,350 mm.)
3 Pinion to flywheel clearance
Min. Working Packing pieces
0.019 in. 2 off
(0,398 mm.)
0.023 in. 1 off
(0,399 mm.)
0:030 in. None
(0,794 mm.)
