4. Using special pliers (RH 8090), remove the steel
clips (if fitted) securing the outlet hose to the filter
unit; detach the hose. Discard the clips.
To remove the filter unit, slacken the worm drive
clip securing the filter unit to its mounting bracket.
Withdraw the filter unit from the securing clip.
Note The filter unit is a sealed unit and no
attempt should be made to clean the
element.
i
4
Mixture weakening device fittings-To fit
2
Fit the mixture weakening device fittings by reversing
Y
the procedure given for removal noting the following
0 3 points.
2
59
-r
1. Ensure that all pipes and hoses are in good con-
3 dition.
z
-
M 2. Renew all sealing washers.
4
EI
3.
Renew all steel clips (if fitted).
."

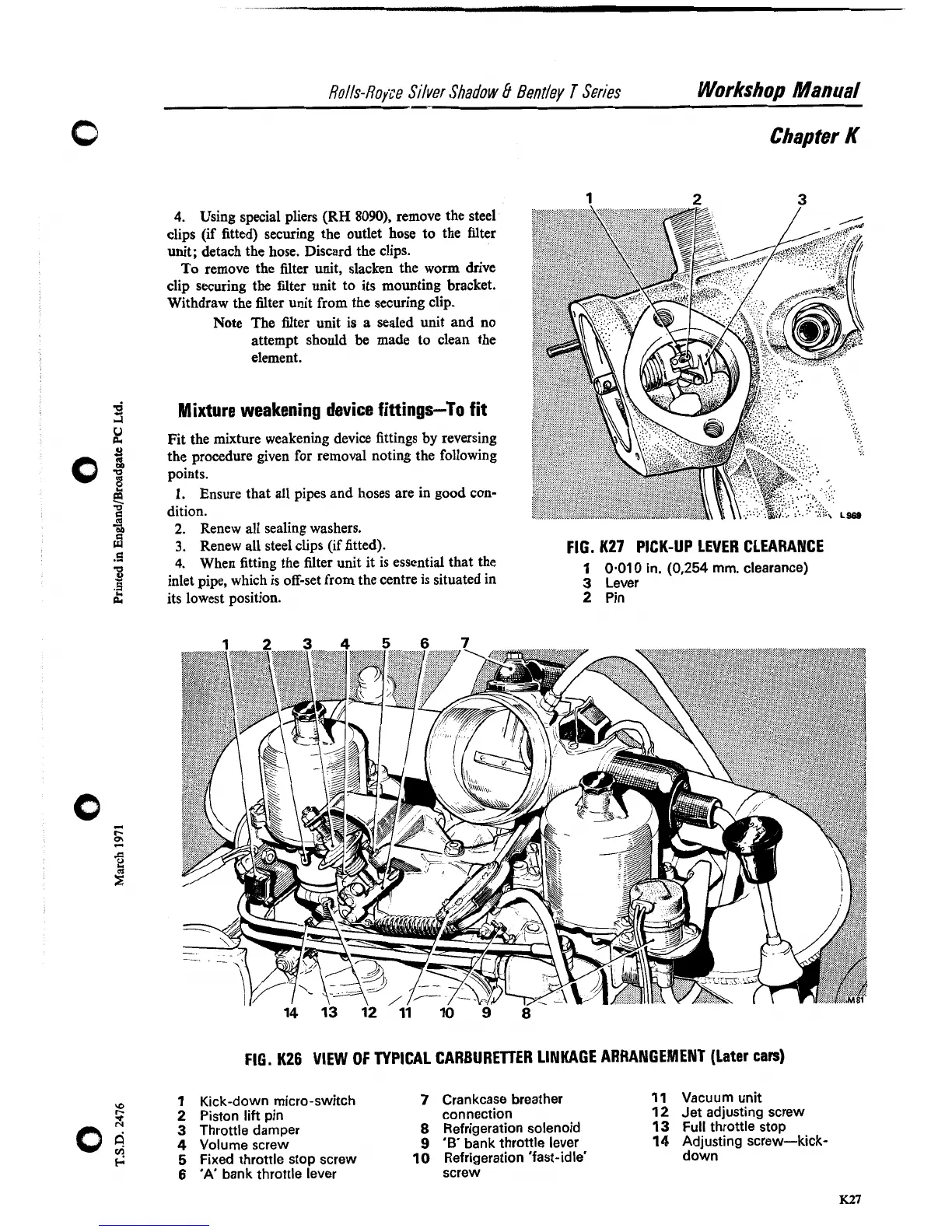

FIG. K27 PICK-UP LEVER CLEARANCE
4.
When fitting the filter unit it is essential that the
1 0.01 0 in. (0,254 mm. clearance)
inlet pipe, which is off-set from the centre is situated in
f 3 Lever
its lowest position.
2 Pin
FIG. K26 VIEW OF TYPICAL CARBURETTER LINKAGE ARRANGEMENT (Later cars)
1 Kick-down micro-switch 7 Crankcase breather 11 Vacuum unit
X
d 2 Piston lift pin
connection
12 Jet adjusting screw
3 Throttle damper 8 Refrigeration solenoid
13 Full throttle stop
4 Volume screw 9 'B' bank throttle lever
14 Adjusting screw-kick-
5 Fixed throttle stop screw 10 Refrigeration 'fast-idle' down
6 'A' bank throttle lever screw
