Rolls- Royce Silver Shadow B Bentley T Series
Workshop Manual
Chapter
M
Gearchange selector thermal cut-out
gear range selector thermal cut-out be removed from
the fuse panel. This will isolate the gear range
(see Figs. M2 & M3)
selector.
If work is to be carried out on the car with the
The gear range selector thermal cut-out
is
engine running, it is strongly recommended that the
removed
by pulling away from the fuse panel.

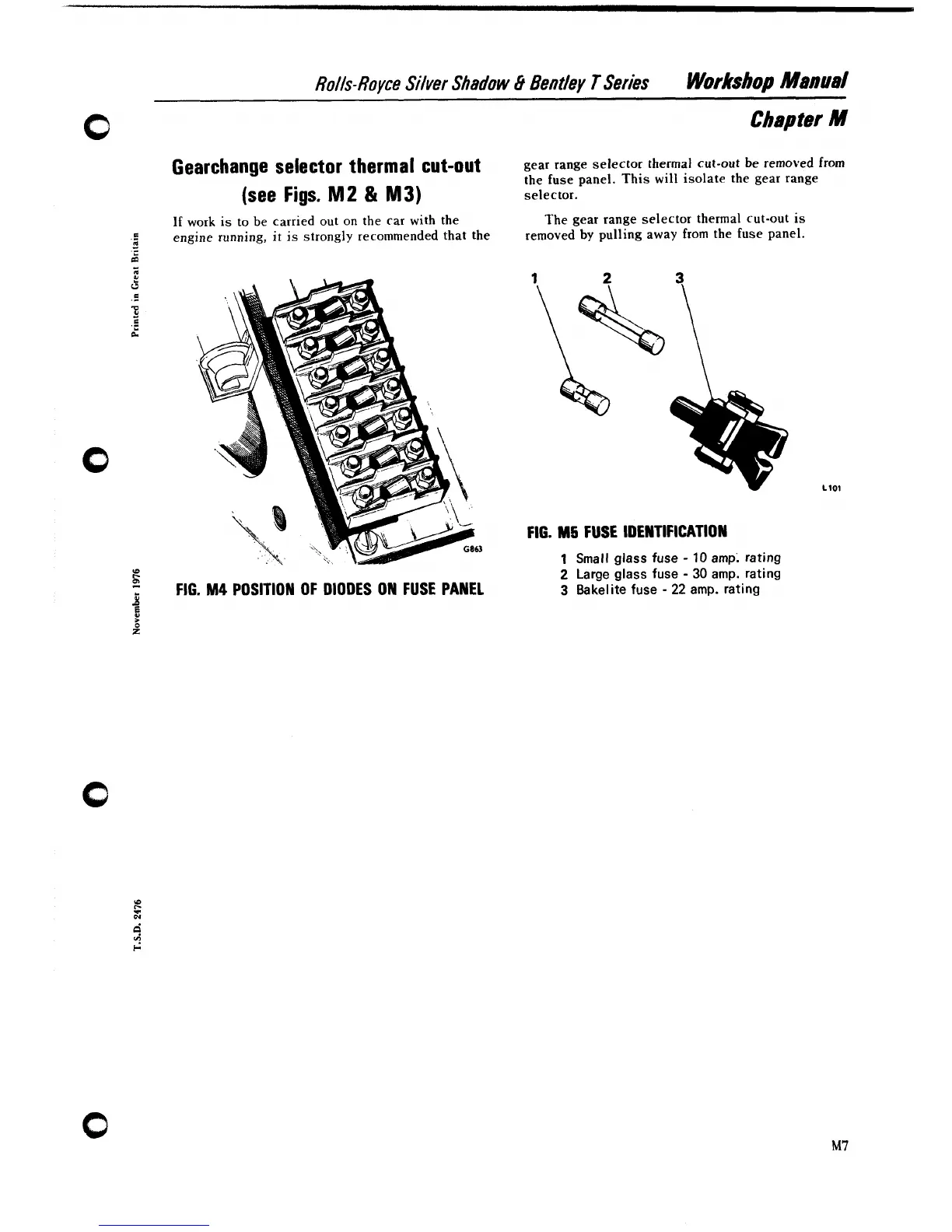

FIG. M5 FUSE IDENTIFICATION
1 Small glass fuse - 10 amp. rating
2 Large glass fuse - 30 amp. rating
FIG. M4 POSITION OF DIODES ON FUSE PANEL
3 Bakelite fuse - 22 amp. rating
