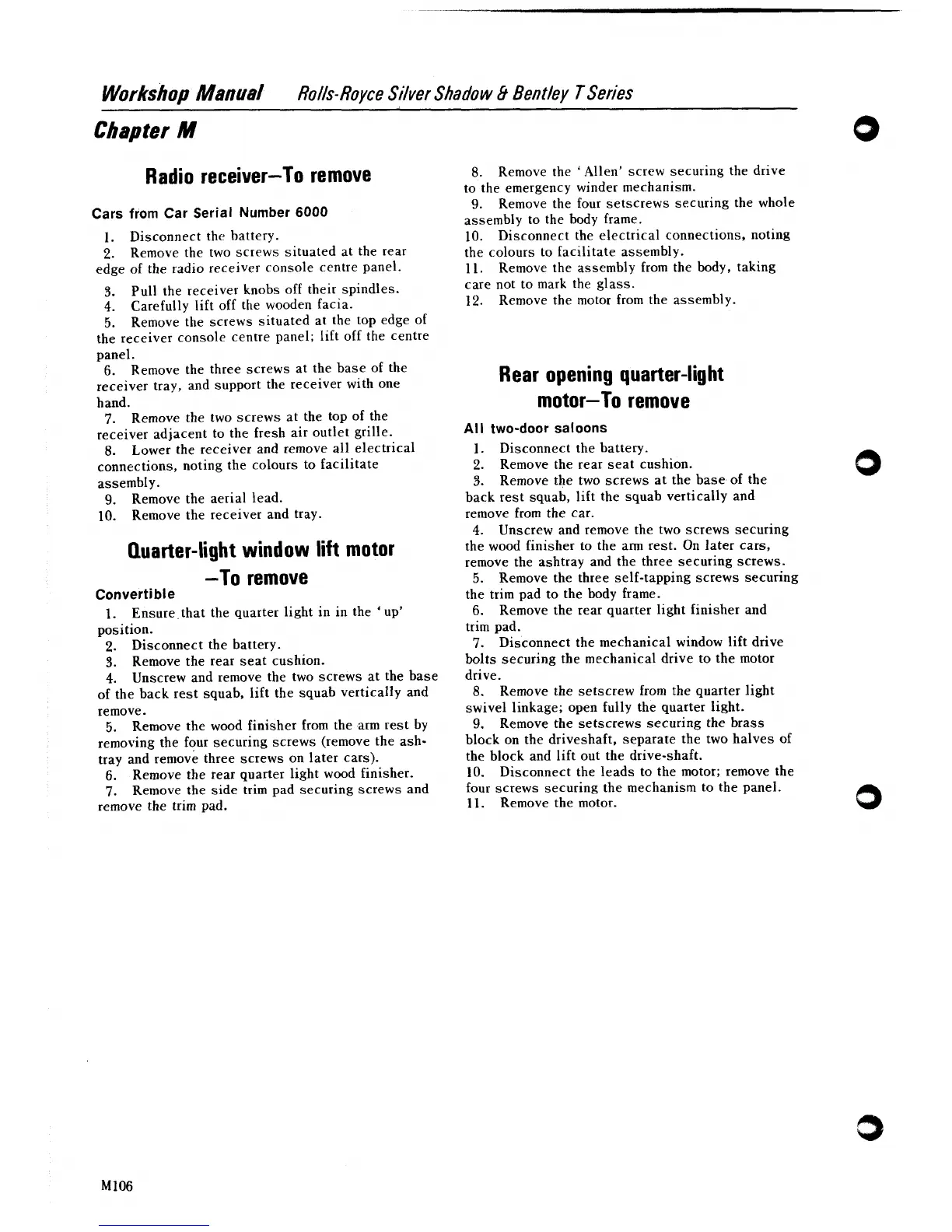

Workshop
~Wanual
Rolls- Royce Silver Shadow
B
Bentley
T
Series
Chapter
M
Radio receiver-To remove
Cars from Car Serial Number
6000
1. Disconnect the battery.
2.
Remove the two screws situated at the rear
edge of the radio receiver console centre panel.
3.
Pull the receiver knobs off their spindles.
4.
Carefully lift off the wooden facia.
5.
Remove the screws situated at the top edge of
the receiver console centre panel; lift off the centre
panel.
6.
Remove the three screws at the base of the
receiver tray, and support the receiver with one
hand.
7.
Remove the two screws at the top of the
receiver adjacent to the fresh air outlet grille.
8.
Lower the receiver and remove all electrical
connections, noting the colours to facilitate
assembly.
9.
Remove the aerial lead.
10.
Remove the receiver and tray.
Quarter-light window lift motor
-To remove
Convertible
1.
Ensure that the quarter light in in the 'up'
position.
2.
Disconnect the battery.
3.
Remove the rear seat cushion.
4.
Unscrew and remove the two screws at the base
of the back rest squab, lift the squab vertically and
remove.
5.
Remove the wood finisher from the arm rest by
removing the four securing screws (remove the ash-
tray and remove three screws on later cars).
6.
Remove the rear quarter light wood finisher.
7.
Remove the side trim pad securing screws and
remove the trim pad.
8.
Remove the
'
Allen' screw securing the drive
to the emergency winder mechanism.
9.
Remove the four setscrews securing the whole
assembly to the body frame.
10.
Disconnect the electrical connections, noting
the colours to facilitate assembly.
11.
Remove the assembly from the body, taking
care not to mark the glass.
12.
Remove the motor from the assembly.
Rear opening quarter-lig ht
motor-To remove
All two-door saloons
1. Disconnect the battery.
2.
Remove the rear seat cushion.
3.
Remove the two screws at the base of the
back rest squab, lift the squab vertically and
remove from the car.
4.
Unscrew and remove the two screws securing
the wood finisher to the arm rest. On later cars,
remove the ashtray and the three securing screws.
5.
Remove the three self-tapping screws securing
the trim pad to the body frame.
6.
Remove the rear quarter light finisher and
trim pad.
7.
Disconnect the mechanical window lift drive
bolts securing the mechanical drive to the motor
drive.
8.
Remove the setscrew from the quarter light
swivel linkage; open fully the quarter light.
9.
Remove the setscrews securing the brass
block on the driveshaft, separate the two halves of
the block and lift out the drive-shaft.
10.
Disconnect the leads to the motor; remove the
four screws securing the mechanism to the panel.
11. Remove the motor.
