Rolls-Royce Silver Shadow & Bentley T Series
Workshop Manual
Chapter 1
Section 15

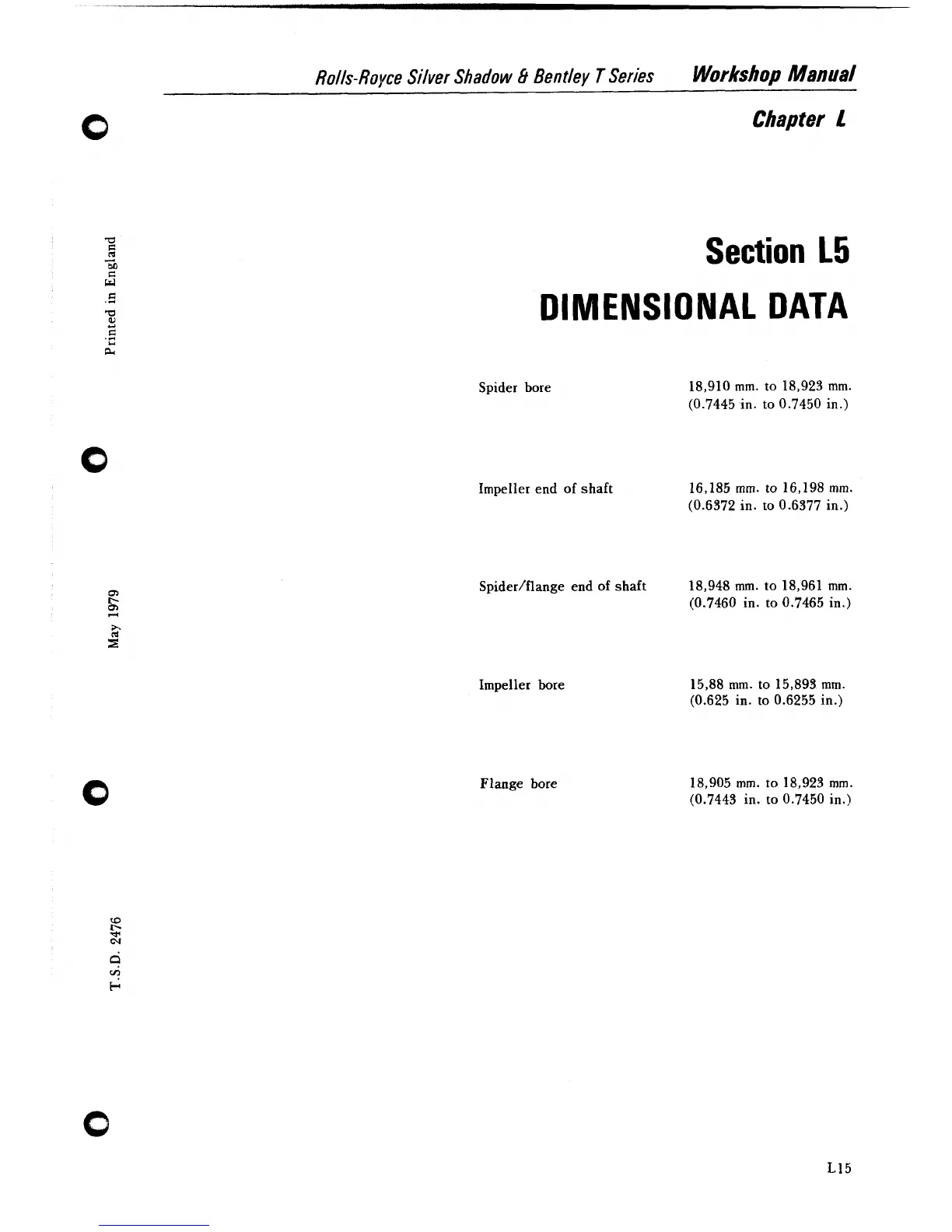

DIMENSIONAL DATA
Spider bore
18,910 mm. to 18,923 mm.
(0.7445 in.
to 0.7450 in.)
Impeller end
of shaft
16,185 mm. to 16,198 mm.
(0.6372 in.
to 0.6377 in.)
Spider/flange end of shaft
18,948 mm. to 18,961 mm.
(0.7460 in.
to 0.7465 in.)
Impeller bore
Flange bore
15,88 mm. to 15,893 mm.
(0.625 in. to 0.6255 in.)
18,905 mm.
to 18,923 mm.
(0.7443 in.
to 0.7450 in.)
