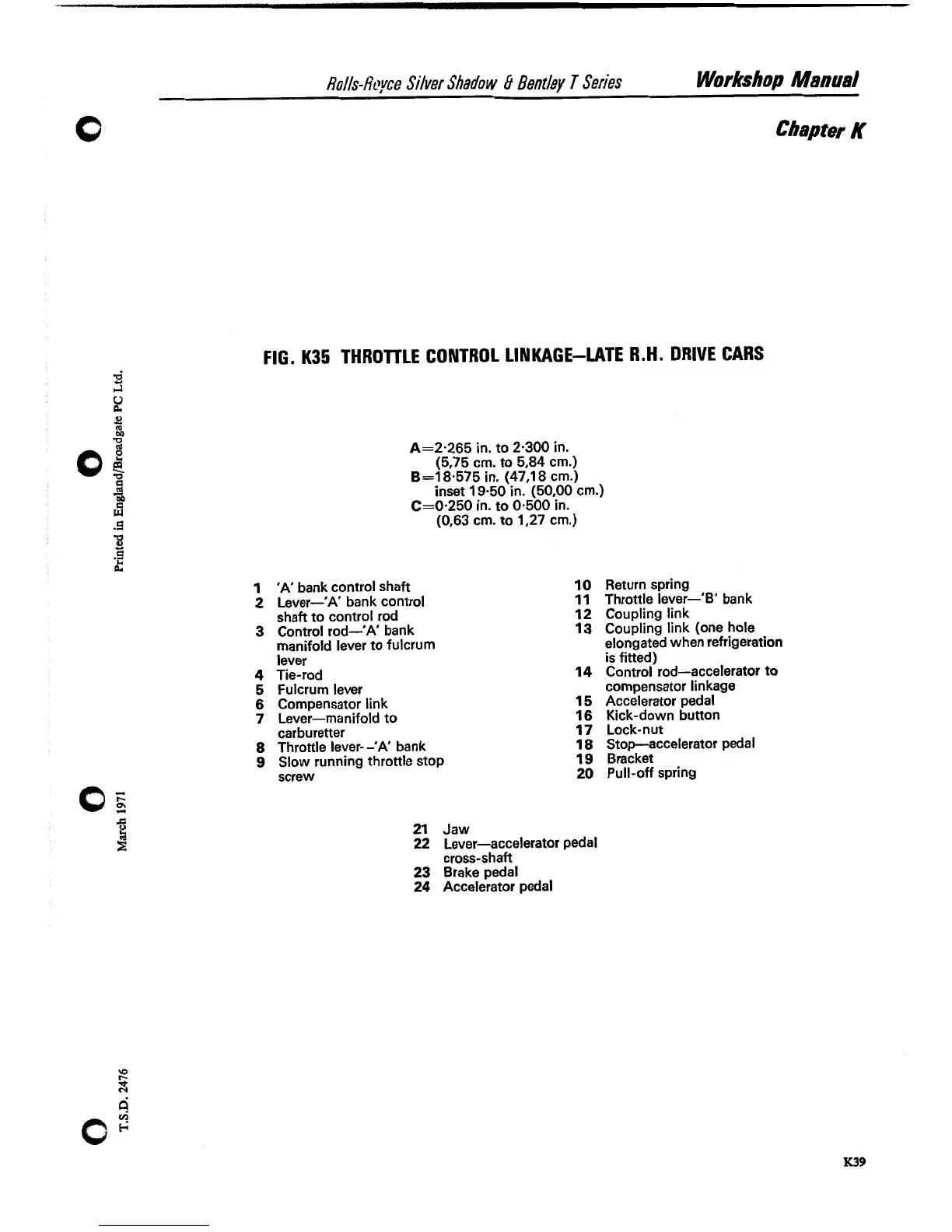

FIG. K35 THROITLE CONTROL LINKAGE-LATE R.H. DRIVE CARS
A=2-265 in. to 2.300 in.
(5,75 cm. to 5.84 cm.)
B=18.575 in. (47,18 cm.)
inset
19.50 in. (50,OO cm.)
C=0.250 in. to 0.500 in.
(0,63 cm. to 1,27 cm.)
1 'A' bank control shaft
2 Lever-'A' bank control
shaft to control rod
3 Control rod-'A' bank
manifold lever to fulcrum
lever
4 Tie-rod
5 Fulcrum lever
6 Compensator link
7 Lever-manifold to
carburetter
8 Throttle lever--'A' bank
9 Slow running throttle stop
screw
21 Jaw
22 Lever-accelerator pedal
cross-shaft
23 Brake pedal
24 Accelerator pedal
Return spring
Throttle lever-'B' bank
Coupling link
Coupling link (one hole
elongated when refrigeration
is fitted)
Control rod-accelerator to
compensator linkage
Accelerator pedal
Kick-down button
Lock-nut
Stop-accelerator pedal
Bracket
Pull-off spring
