Rolls-Royce Silver Shadow B Bentley T Series
Workshop &nua/
0 Chapter K

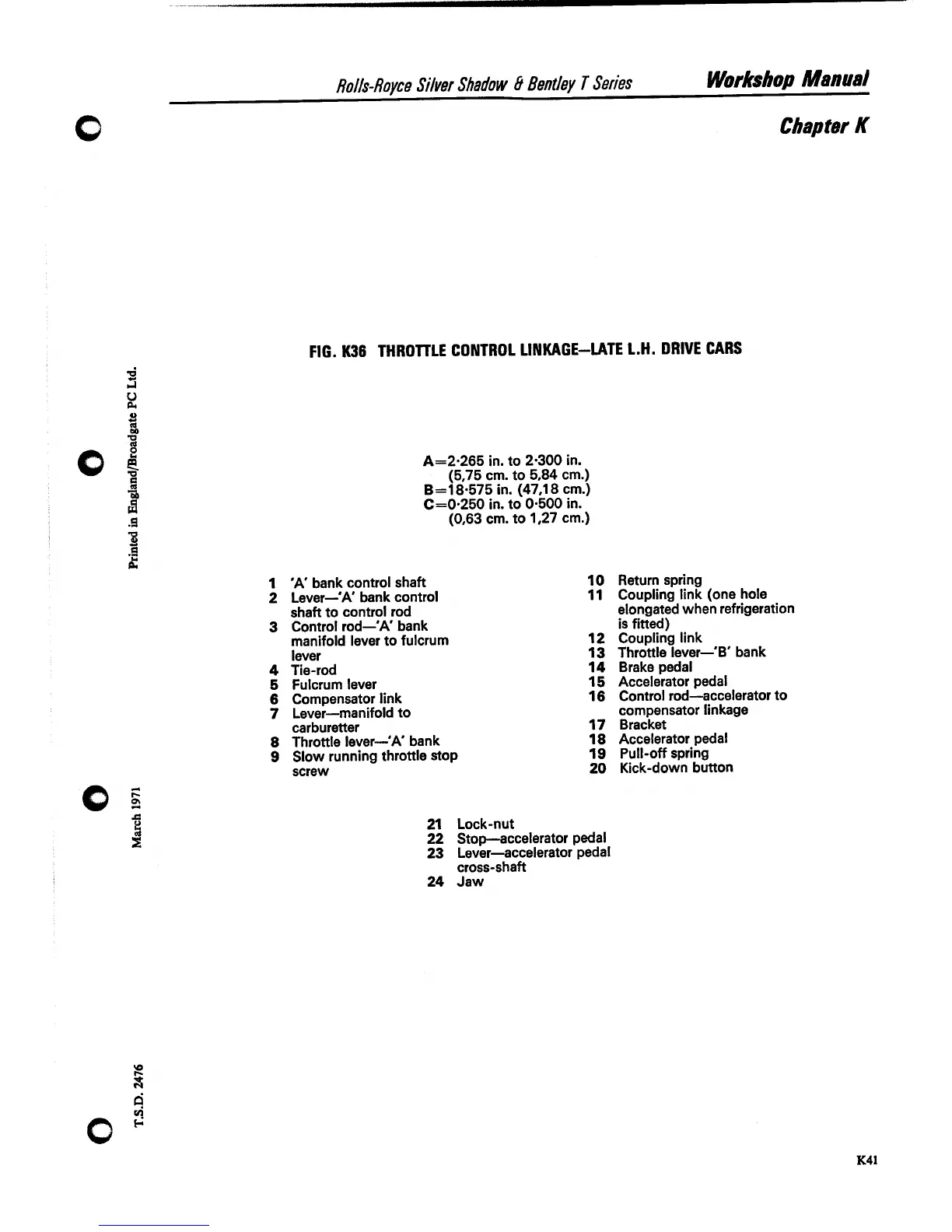

FIG. K36 THROTTLE CONTROL LINKAGE-LATE L.H. DRIVE CARS
A=2.265 in. to 2.300 in.
(5,75 cm. to 5,84 cm.)
B=18.575 in. (47,18 cm.)
C=0.250 in. to 0.500 in.
(0,63 cm. to 1,27 cm.)
1 'A' bank control shaft
2 Lever-'A' bank control
shaft to control rod
3 Control rod-'A' bank
manifold lever to fulcrum
lever
4 Tie-rod
5 Fulcrum lever
6 Compensator link
7 Lever-manifold to
carburetter
8 Throttle lever-'A' bank
9 Slow running throttle stop
screw
21 Lock-nut
22 Stop-accelerator pedal
23 Lever-accelerator pedal
cross-shaft
24 Jaw
Return spring
Coupling link (one hole
elongated when refrigeration
is fitted)
Coupling link
Throttle lever-'B' bank
Brake pedal
Accelerator pedal
Control rod-accelerator to
compensator linkage
Bracket
Accelerator pedal
Pull-off spring
Kick-down button
