LOGO! Manual
A5E00380835-01
76

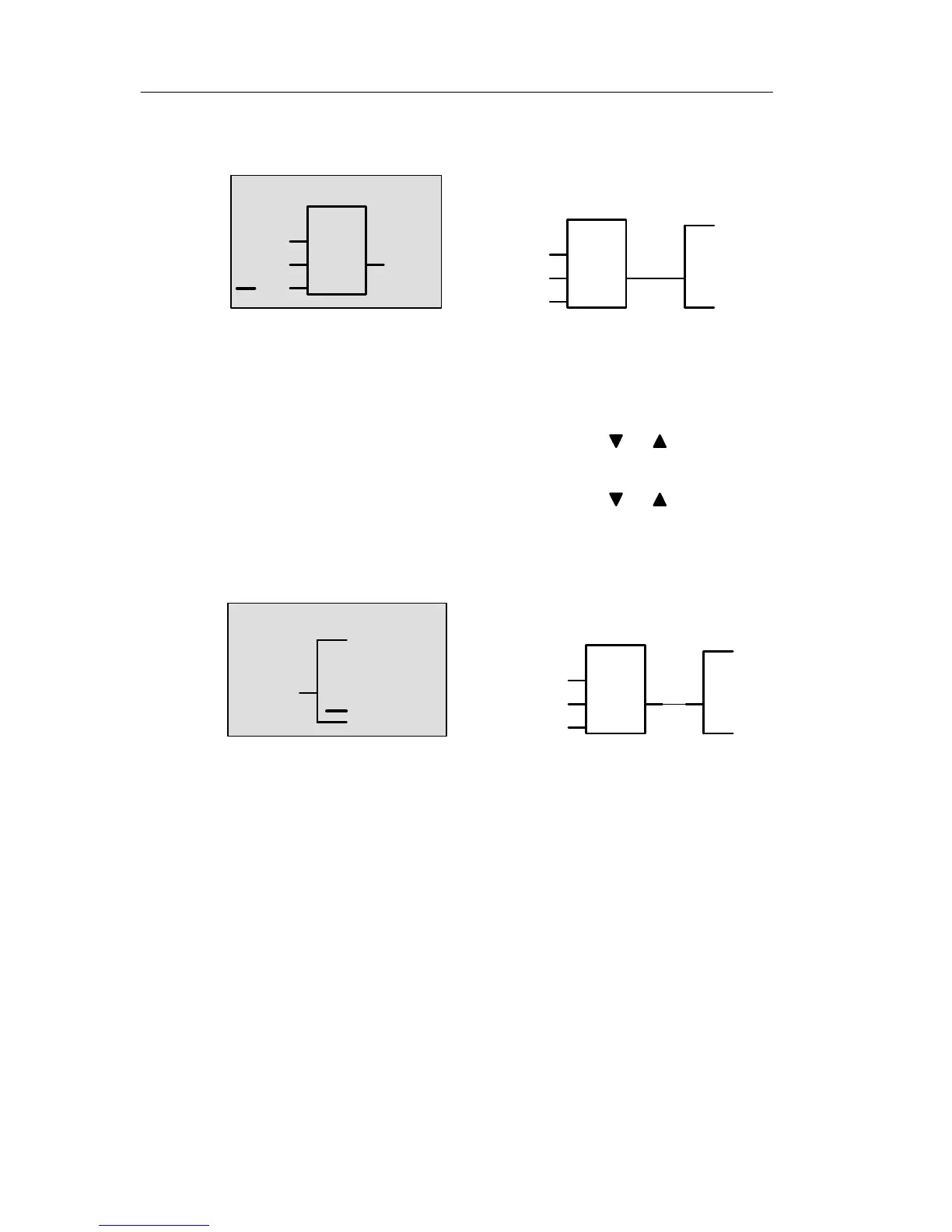

I2 is now connected to the input of the OR block:
1
The display now shows:
B1
Q1
1
Q1
I1
I1
B1
I2
I2
Your circuit program layout in
LOGO! up to now
We do not need the last two inputs of the OR block for this
circuit program. You can mark the unused inputs with an ’x’.
Enter the ’x’ character twice:
1. Switch to editing mode: Press OK
2. To select the Co list: Press or
3. To accept the Co list: Press OK
4. To select ’x’: Press or
5. To apply x: Press OK
The display now shows:
1
Q1
This is the layout of your
circuit program
I1
B1
I2
Q1B1
x
