Minimum distances from transponder to transponder (without multitag mode)
Table 6- 4 Minimum distances transponder edge to transponder edge
MDS D124 / MDS D160 / MDS D324 /
MDS D423 / MDS D424 / MDS D428 /
MDS D460 / MDS D524 / MDS D528
MDS D422 / MDS D425 / MDS D522
Minimum distances from antenna to antenna
D > 60 mm (with 2 antennas)
> 80 mm (with 3 antennas)

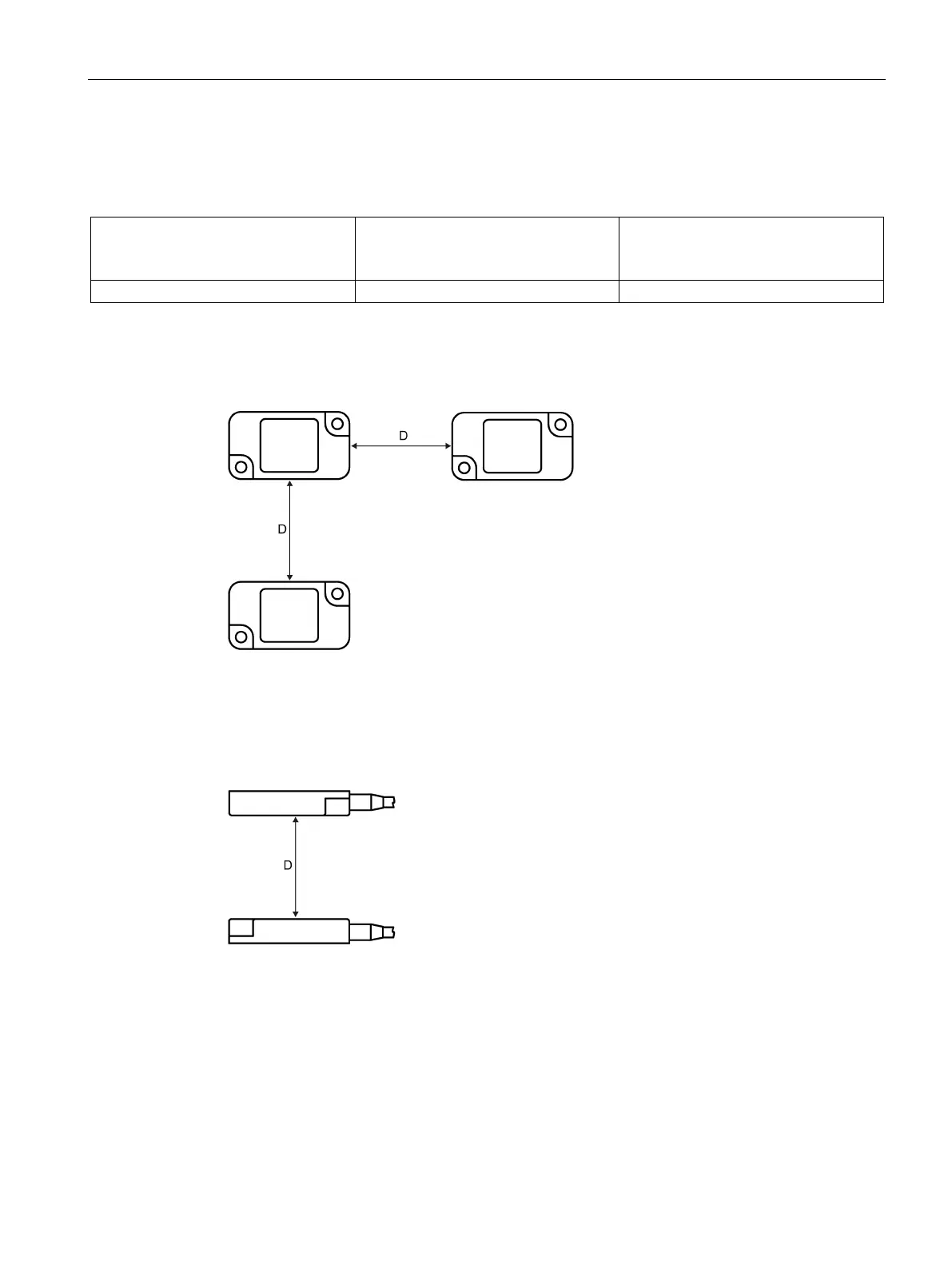

Figure 6-3 Minimum distance for ANT 3
Figure 6-4 Face-to-face distance between two ANT 3s
