Antennas
6.5 ANT 30
SIMATIC RF200
166 System Manual, 07/2015, J31069-D0227-U001-A9-7618

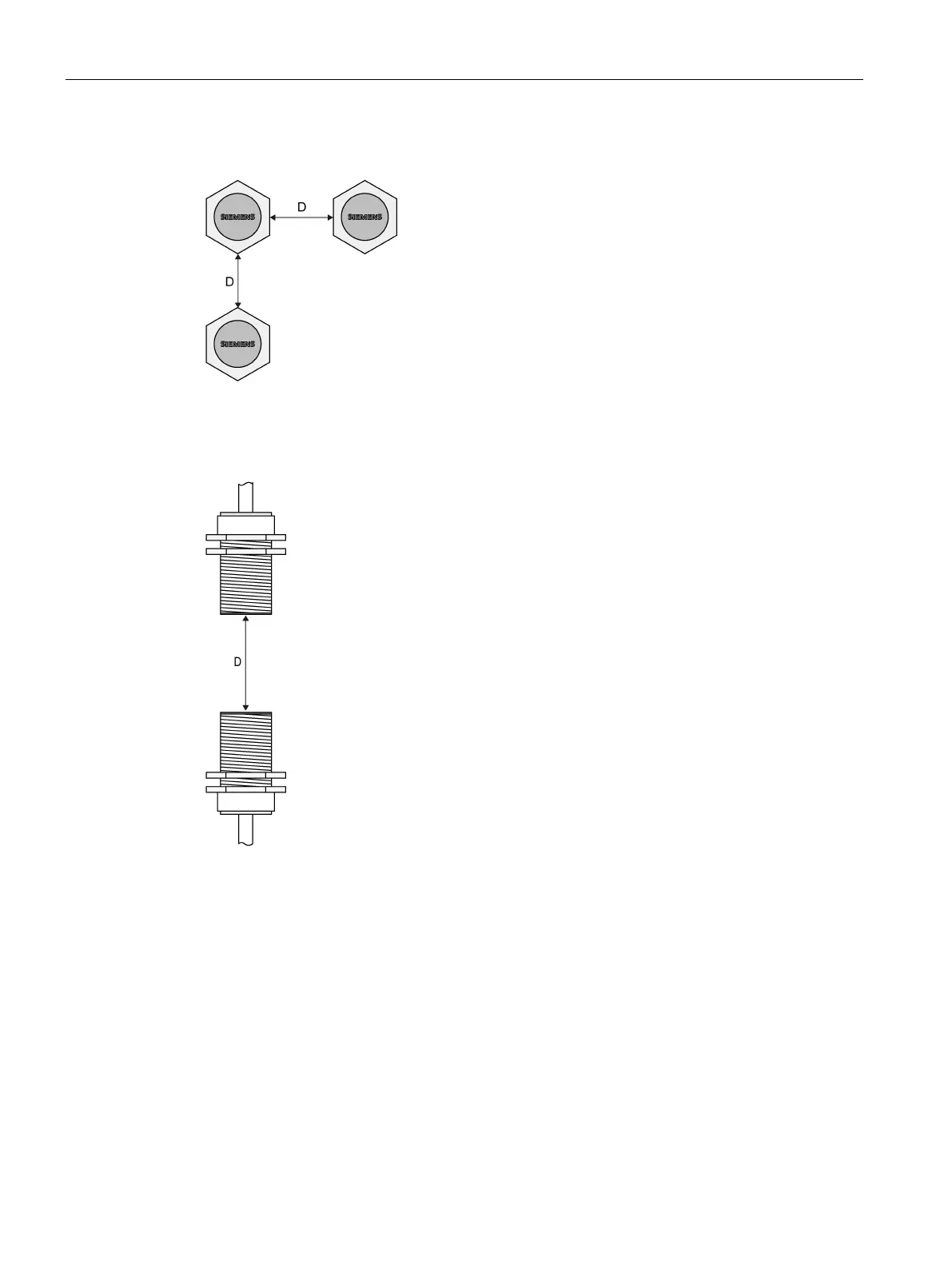

Definition of distance D
D > 40 mm (with 2 antennas)
> 50 mm (with 3 antennas)
Figure 6-23 Minimum distance for ANT 30
D
> 200 mm
Figure 6-24 Face-to-face distance between two ANT 30s
