RF200 system planning
4.1 Fundamentals of application planning
SIMATIC RF200
26 System Manual, 07/2015, J31069-D0227-U001-A9-7618

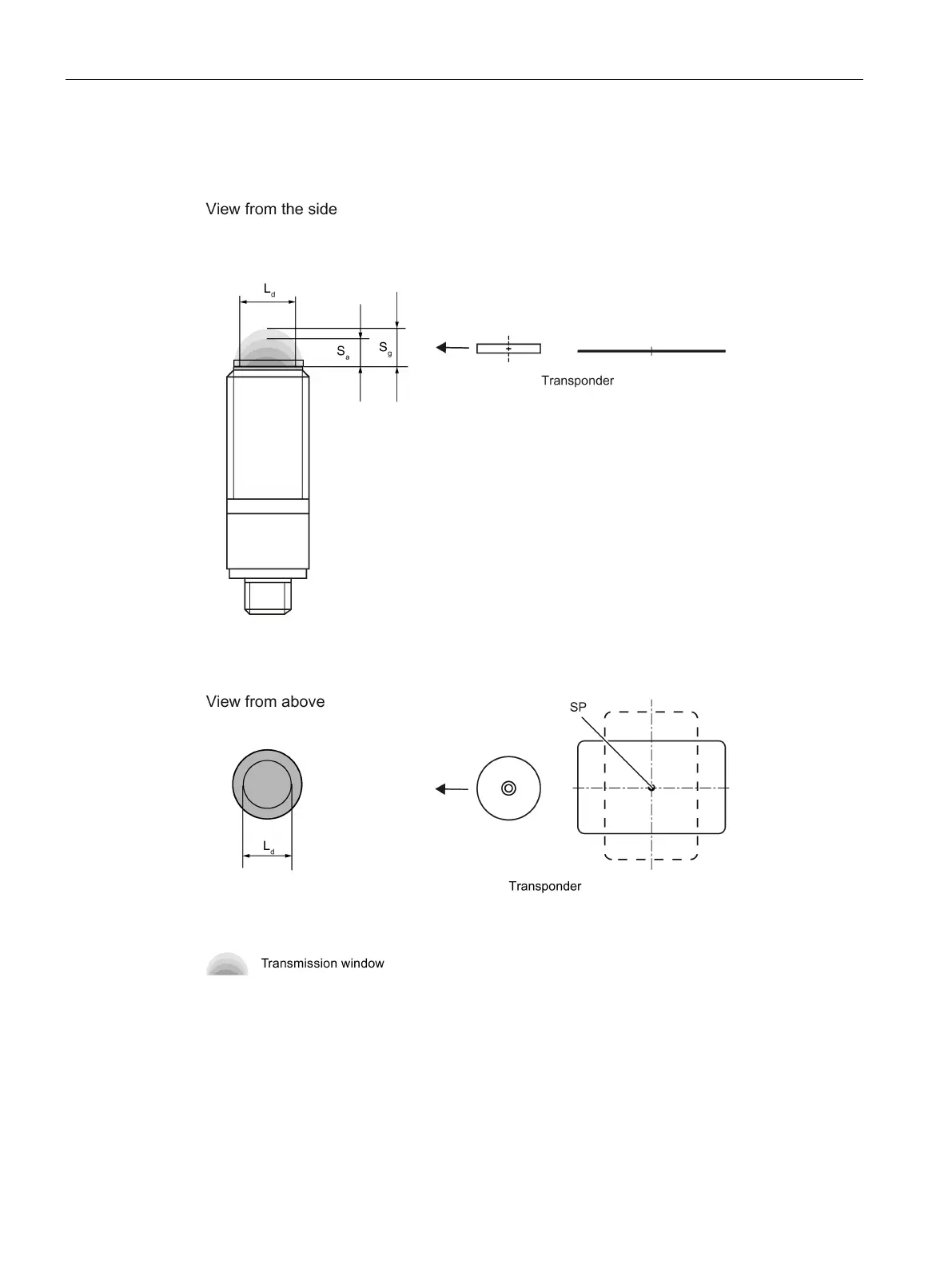

The picture below shows the transmission window of the SIMATIC RF210R and
SIMATIC RF220R readers between transponder and reader:
Operating distance between transponder and reader
S
g
Limit distance (maximum clear distance between upper surface of the reader and the tran-
sponder, at which the transmission can still function under normal conditions)
Diameter of a transmission window
Intersection of the axes of symmetry of the transponder
Figure 4-1 RF210R/RF220R transmission window
