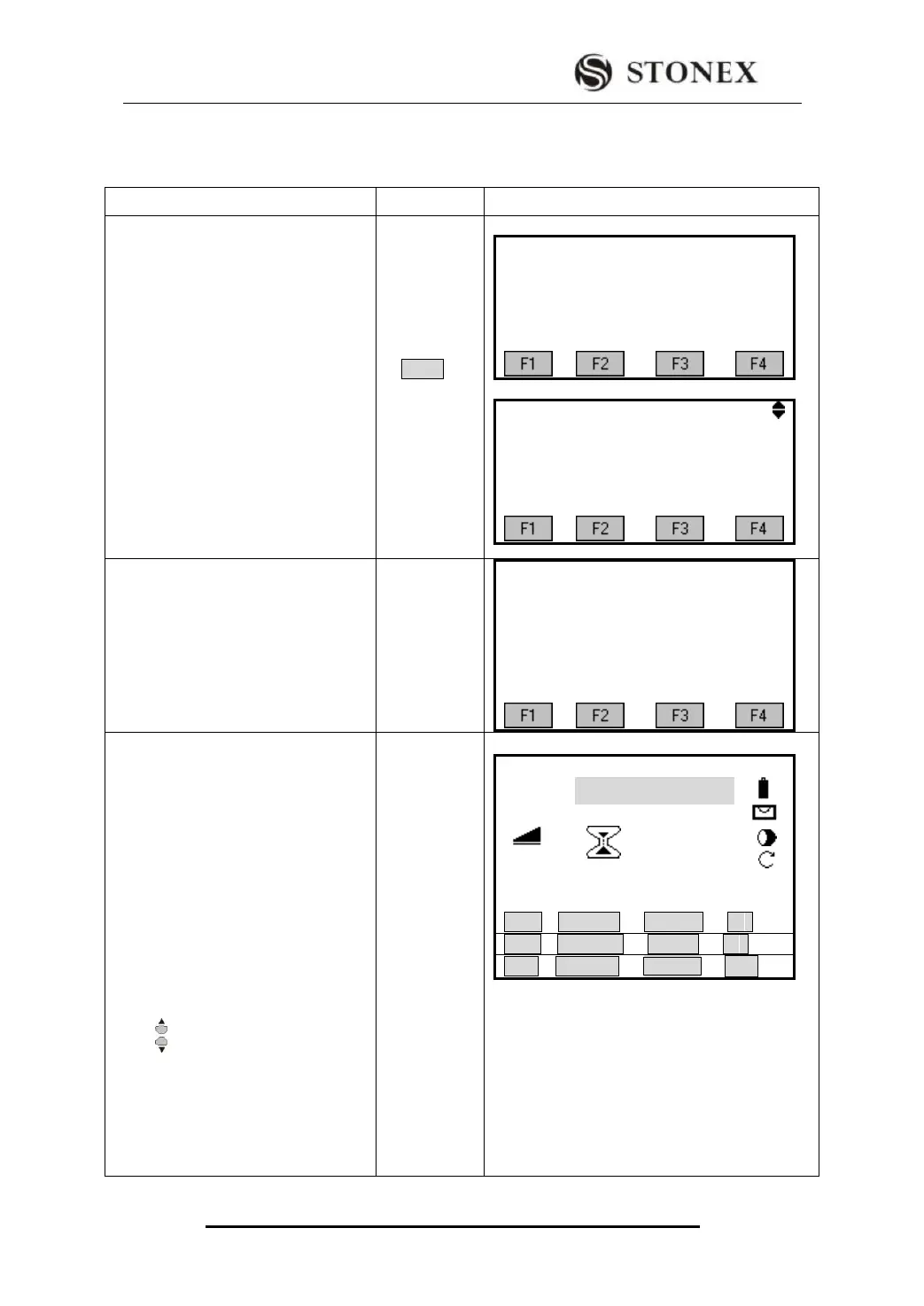

STONEX R2 User Manual

STONEX R2
119
c： Calculated area always closed to the start point P1, projected onto the horizontal
plane.
OPERATIONAL STEPS ：
OPERATIONAL STEPS
OPERATION
DISPLAY
① In Programs menu, press [PAGE]
to turn to Page 2. And press [F2] to
start Area Measurement.
PAGE
[F2]
【Program】 1/3 ▼
F1 Surveying (1)
F2 Stake Out (2)
F3 Free Station (3)
F4 COGO (4)
【Programs】 2/3
F1 Tie Distance (1)
F2 Area(Plan) (2)
F3 Remote Height (3)
F4 Reference Line/Arc (4)
②Set job, measurement station and
backsight orientation, and press [F4] to
start area measurement.(As the method
of setting job, station and orientation
have been introduced previously, it
will not be repeated here.).
【Area】
[*]F1 Setting Job (1)
[*]F2 Setting Station (2)
[*]F3 Setting Orientation (3)
F4 Start (4)
③ Several methods to obtain points
applied in area measurement are
available.
A：Input PtID of the first target point
and the prism height of that point.
Collimate the prism center and press
[F1] (All) or [F1] (DIST) + [F2]
(RECORD) to start measurement.
B：Press [LIST], in Pt Search dialog,
press to call up PtID directly from
job.
C: Input PtID and press [SEARCH] to
Input first
target PtID
and R.Ht
+
[F1]
or[F1]
+
[F2]
[F3]
A：Input PtID to start measurement.
B：Press[LIST] to call up directly PtID from job
【Area 】
PtID： 1
R.HT： 1.500 m
： ---.--- m
NoPts ： 0
Area ： 0.000 m
2
Ⅰ
All EDM RESULT ↓
DIST RECORD LIST ↓
ENH SEARCH ∣←
