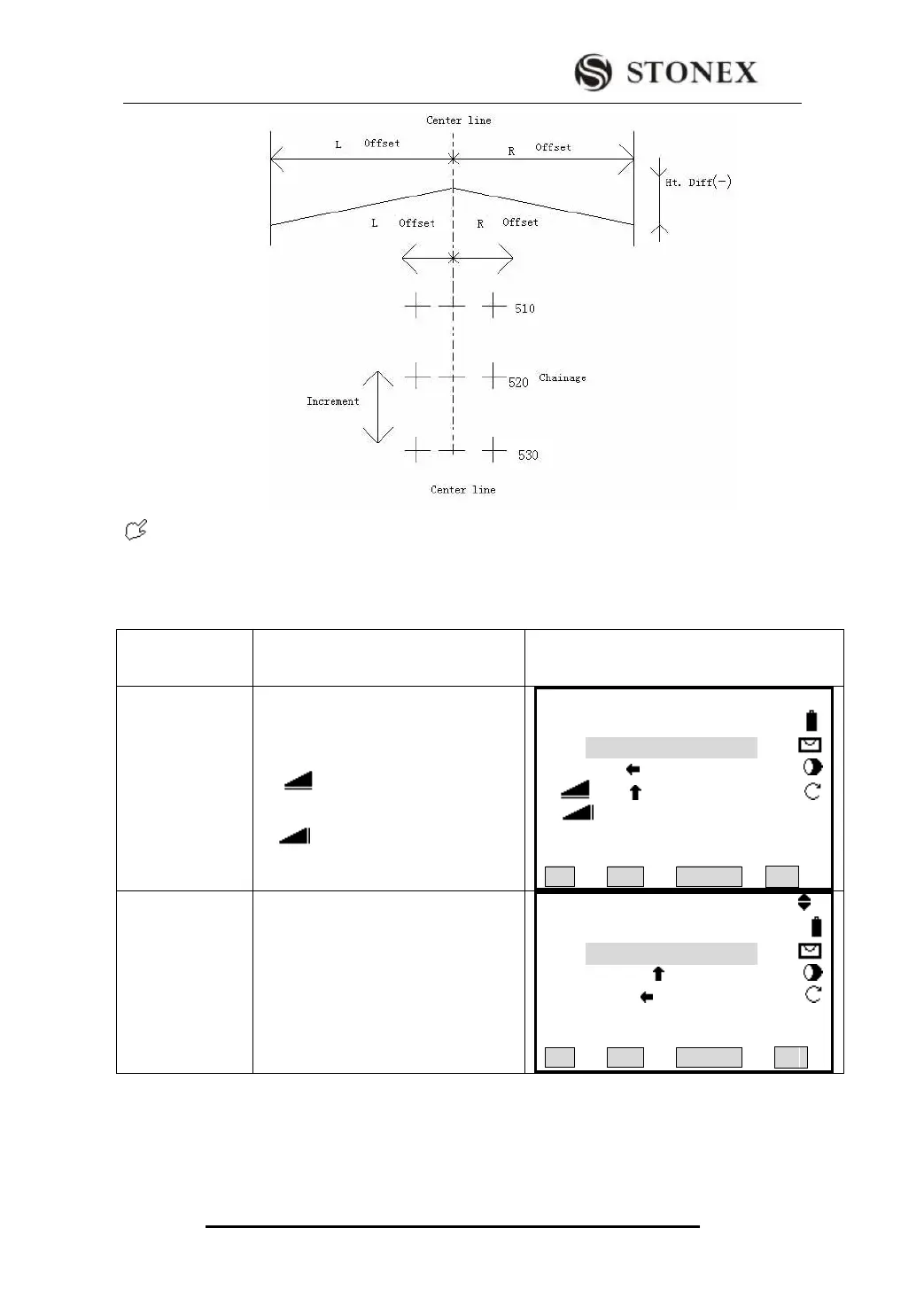

In the process of stake-out, user should first stake out points on the central line, then
the featured points on both sides.
The method to stake out alignment is similar to that of point stake-out, with three methods
available:
STAKE-OUT
METHOD
OFFSET MEANING
DIPLAY
Polar Stake-out
△Hz (Angle Offset): Positive when
stake-out point is on the right of the
present measurement point.
△ (Distance Offset) ： Positive
when stake-out point is further away.
△ (Height Offset)：Positive when
stake-out point is higher.
【Alignment S-O】 1/3 ▼
PtID： C100+0.0
R.Ht： 2.000 m
△Hz ： -61°59′32″
△ ： 127.369 m
△ ： ---.--- m
Ⅰ
All DIST RECORD ↓
Orthogonal
Stake-Out
△ LOff (Longitude Offset): Positive
when stake-out point is further away.
△TOff (Latitude offset): Intercrosses
the line of sight. Positive when
stake-out point is on the right of the
present measurement point.
【Alignment S-O】 2/3
PtID： C100+0.0
R.Ht： 2.000 m
△LOff： 58.592 m
△TOff： -114.270 m
△H ： ---.--- m Ⅰ
All DIST RECORD ↓
