STONEX R2 User Manual

STONEX R2
53

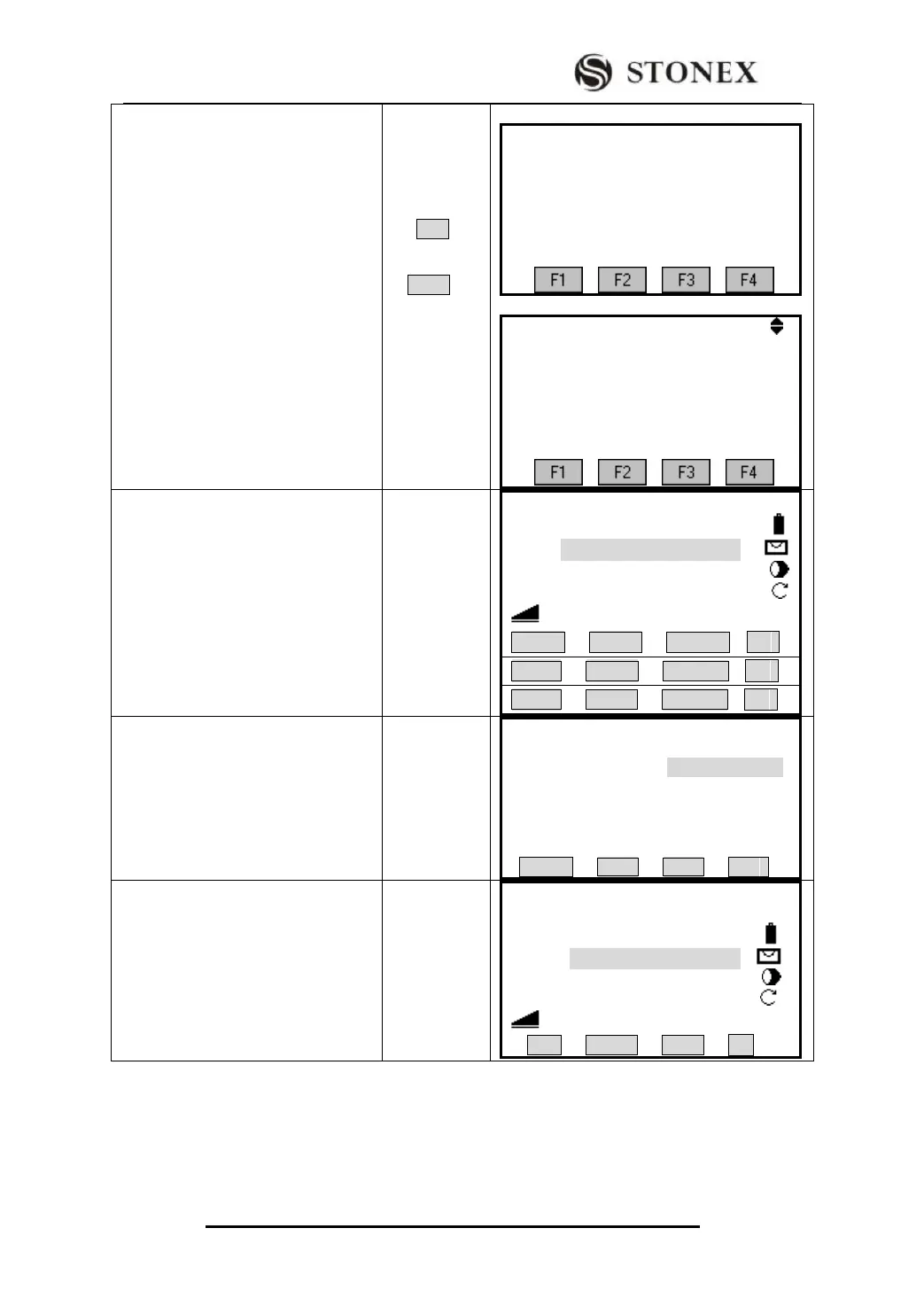

① Press [FNC] to enter into the
Function menu. Press [PAGE] to turn
to Page 2.
FNC
+
PAGE
【Function】1/4 ▼
F1 Level (1)
F2 Target Offset (2)
F3 Delete Last Record (3)
F4 Main Settings (4)
【Function】 2/4
F1 Height Transfer (5)
F2 Hidden Point (6)
F3 Free- Coding (7)
F4 Check Tie (8)
② Press [F1] to enter into Height
Transfer function.
[F1]
【Height Transfer】 1
Select Target Meas!
Pt ID： --- ---
R. HT： 1.500 m
H / Z ： ---.--- m
： ---.--- m Ⅰ
All EDM SEARCH ↓
LIST DIST RECORD ↓
EHN INS.HT VIEW |←
③Press [F4](↓) twice to display the
third page of soft keys. Press [F2] to
enter into the settings of instrument
height.
[F4]
+
[F4]
+
[F2]
【Height Transfer】
Stn. Pt.
Ins. HT: 2.000 m
X0/N0 ： 100.000 m
Y0/E0 ： 100.000 m
H0 ： 10.000 m
BACK OK
④ Input the current instrument height,
and press [F4] to return to the screen of
Height Transfer.
Input
instrument
height
+
[F4]
【Height Transfer】
Height Transfer 1
Select Target Meas!
Pt. ID: --- ---
R.HT: 1.500 m
H/Z: ---.--- m
： ---.--- m Ⅰ
EHN INS.HT VIEW |←
