Applications Guide
Network Busy Lamp Field (BLF)
Strata CIX Programming Vol.1 12/09 A-17
Applications Guide
Network DSS
When you set up Network DSS, you assign the DSS numbers in the primary CIX first. Then, once you
network the remote CIXs, they will use the DSS numbers set in the primary CIX.
An example of how to set up Network DSS is shown in Figure 5. In this example, if CIX670-1 is the
primary/host site, then CIX670-2 and CIX100 become remote sites.

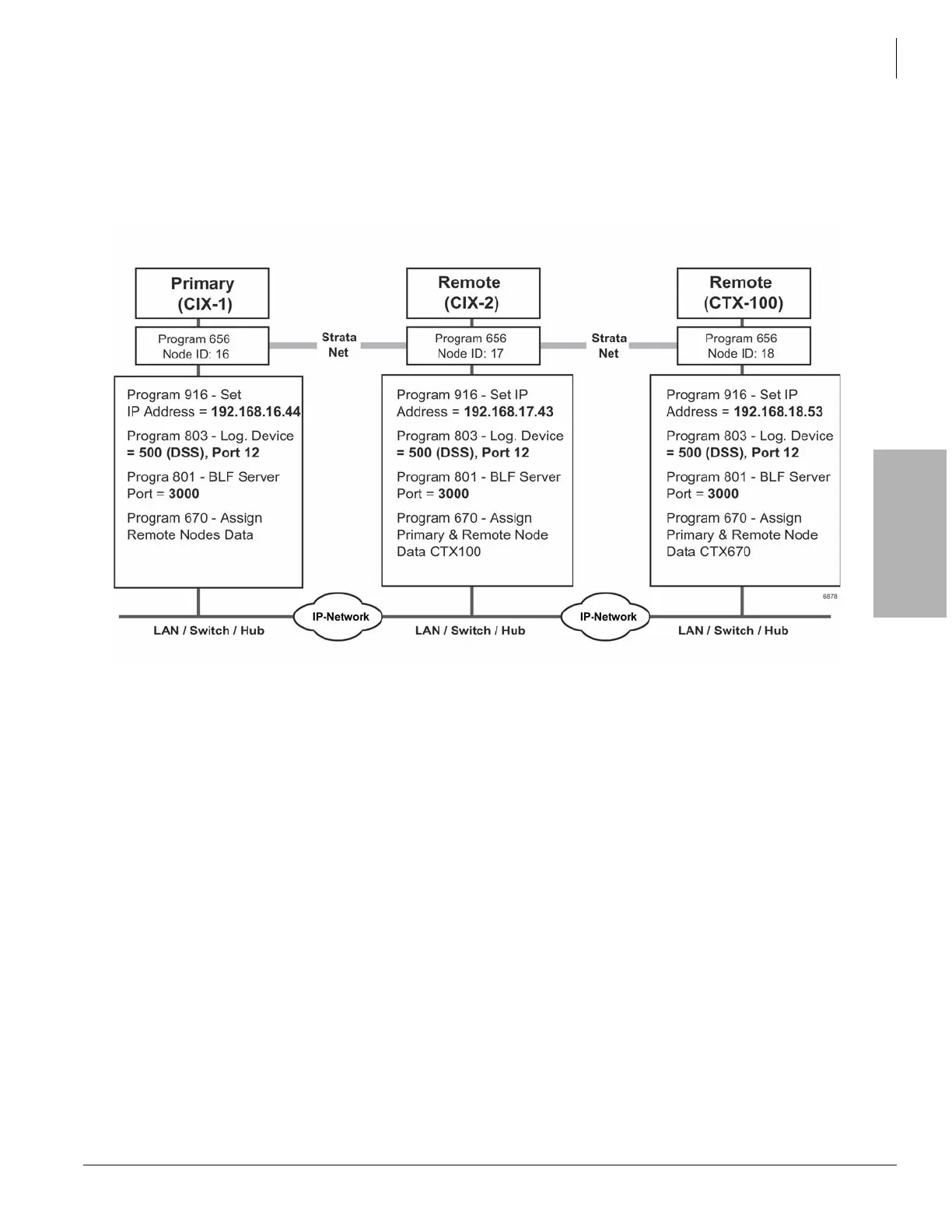

Figure A-5 Network DSS Example
Program Network DSS from Network eManager
1. Create the Node ID in “102 Flexible Access Codes” on page 4-3.
Note If you have already created the Node ID using Strata Net, skip Step 1 and go to the next step.
2. Set up the IP address of the primary CIX using Program “916 IP Configuration” on page 10-10.
3. In Network eManager, select Strata Net > Node ID to set the Primary Node ID. Refer to “656 Node ID
Assignment” on page 9-33.
4. Program the CTI Port for Network DSS. From the Program menu, select System > I/O Device. Refer to
“803 Application Port Assignments” on page 4-36.
• 00 Logical Device No. = 500 (DSS)
• 01 Device Connection = LAN
• Port Index No. = 12
5. Define the LAN Device port number (12 in the example above). Select System > I/O Device, select the
LAN Device tab. Refer to “801 Network Jack LAN Device Assignment” on page 4-39. Make the
following selections:
• 00 LAN Port Index No. = 12
• 01 Protocol = UDP
• 02 Application Type = Server
To Next Page
