Changing the Voltage Setting or Fuse
The current voltage setting is shown in the voltage display window above the power switch.
Y To change the voltage setting or fuse
5. Turn off the Peltier unit and disconnect the power cord from the wall outlet.
6. Use a small screwdriver to pry the fuse drawer out of the fuse compartment by pulling the
tab up and away from the drawer.
7. To change the voltage setting, remove the voltage selector cube from the drawer and
carefully remove the fuse from the cube.
8. Rotate the cube 180 degrees and then replace the cube in the drawer. The correct voltage
setting should display in the window on the bottom of the fuse drawer.

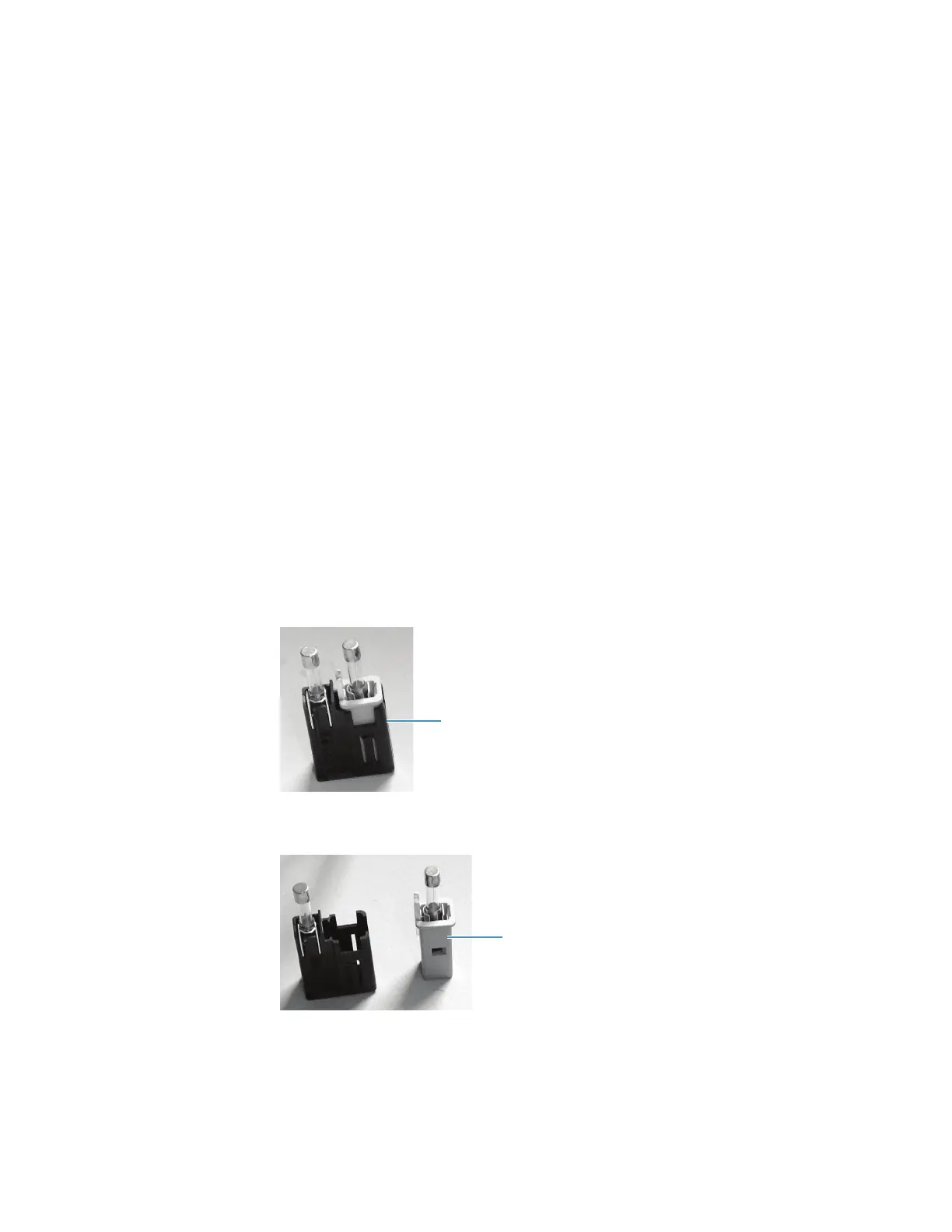

Fuse drawer
Voltage selector cube
