ENGINE
4-66 Rev. 000 TX525 Service Manual

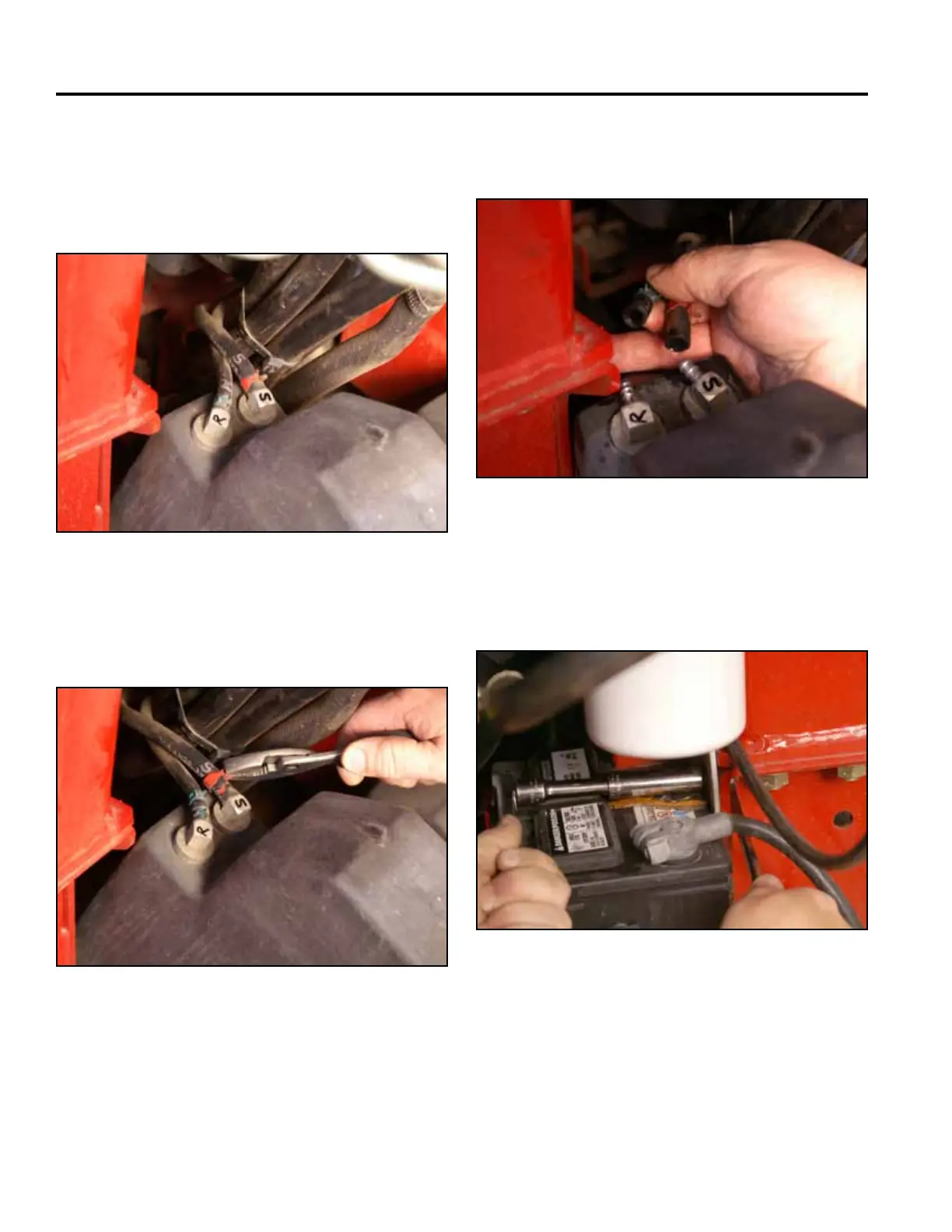

13. Slidethe2fuelhoseclampsdownthefuellineaway
fromthefueltankttings(Fig.0320).
Fig 0320 PICT-4264
12. Markthesuctionfuellineandtankttingwithan“S”
andthereturnfuellineandtankttingwithan“R”
(Fig.0319):
 S-Fuelsuctionline
 R-Fuelreturnline
Fig 0319 PICT-4263
14. Slidethe2fuellinesoffthefueltankttings.Re-
movethefueltank(Fig.0321).
Fig 0321 PICT-4265
15. Removethebolt,washerandnutsecuringthebat-
teryclamptotheframe.Removethebatteryclamp
(Fig.0322).
Fig 0322 PICT-4310a
