ENGINE
4-67TX525 Service Manual Rev. 000

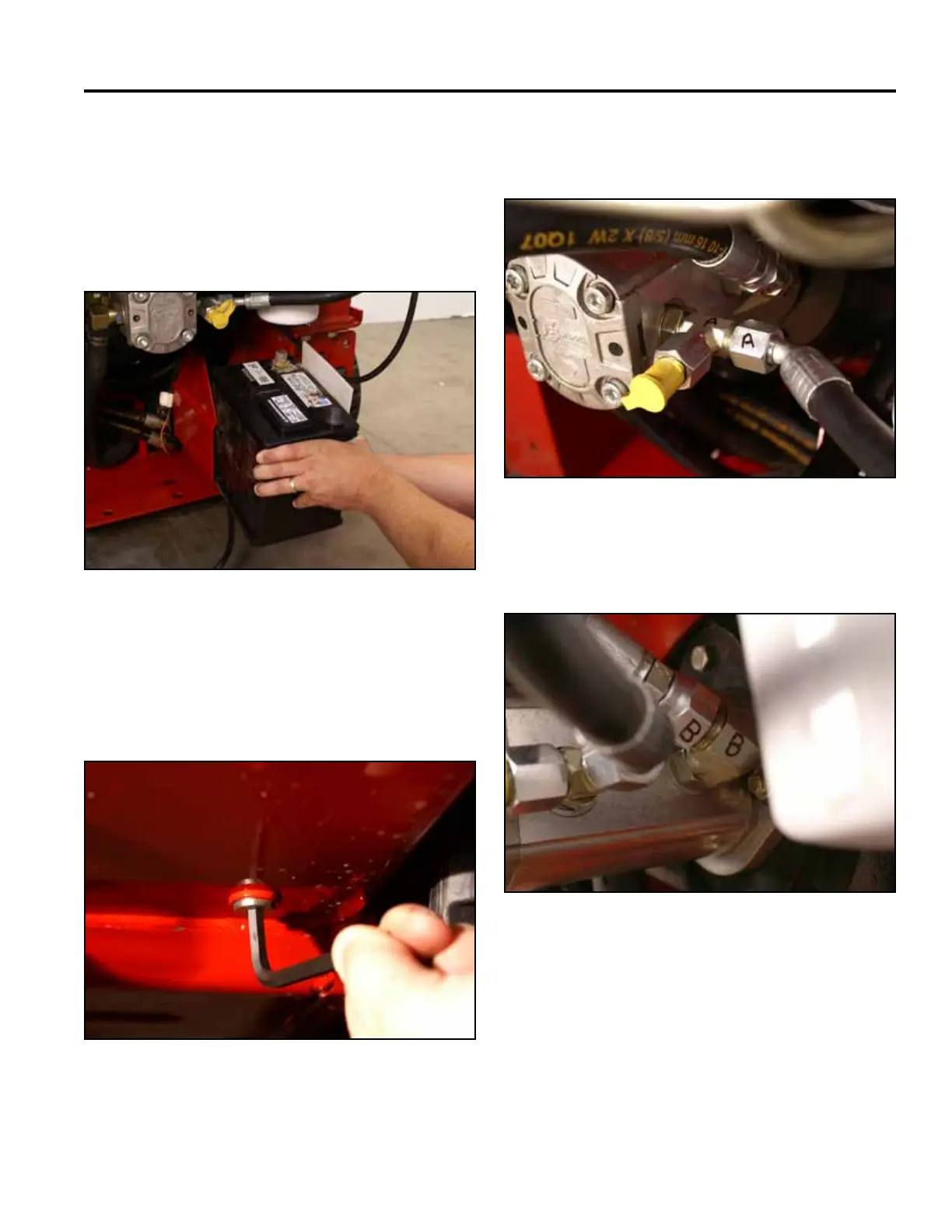

17. Usinga1/4”hexwrench,removetheengineoildrain
pluglocatedontheundersideoftheframeinside
therighthandwheelandtrackassembly.Drainthe
engineoilintoadrainpan(Fig.0324).
Fig 0324 PICT-3283
16. Slidethebatterypartiallyoutofthebatterymount.
Disconnectthenegativebatterycablefromthe
battery.Slidethebatteryoutofthebatterymount
farthertoaccessthepositivebatterycableterminal.
Disconnectthepositivebatterycableandremove
thebatteryandbatteryguardfromthebatterymount
(Fig.0323).
Fig 0323 PICT-5382
18. Markthetandempumplinesandttingsasfollows:
A. Pumppressurelinetoloadervalve(Fig.0325)
Fig 0325 PICT-4765
B. Pumppressurelinetoauxiliaryvalve(Fig.0326)
Fig 0326 PICT-4766a
