ENGINE
4-68 Rev. 000 TX525 Service Manual

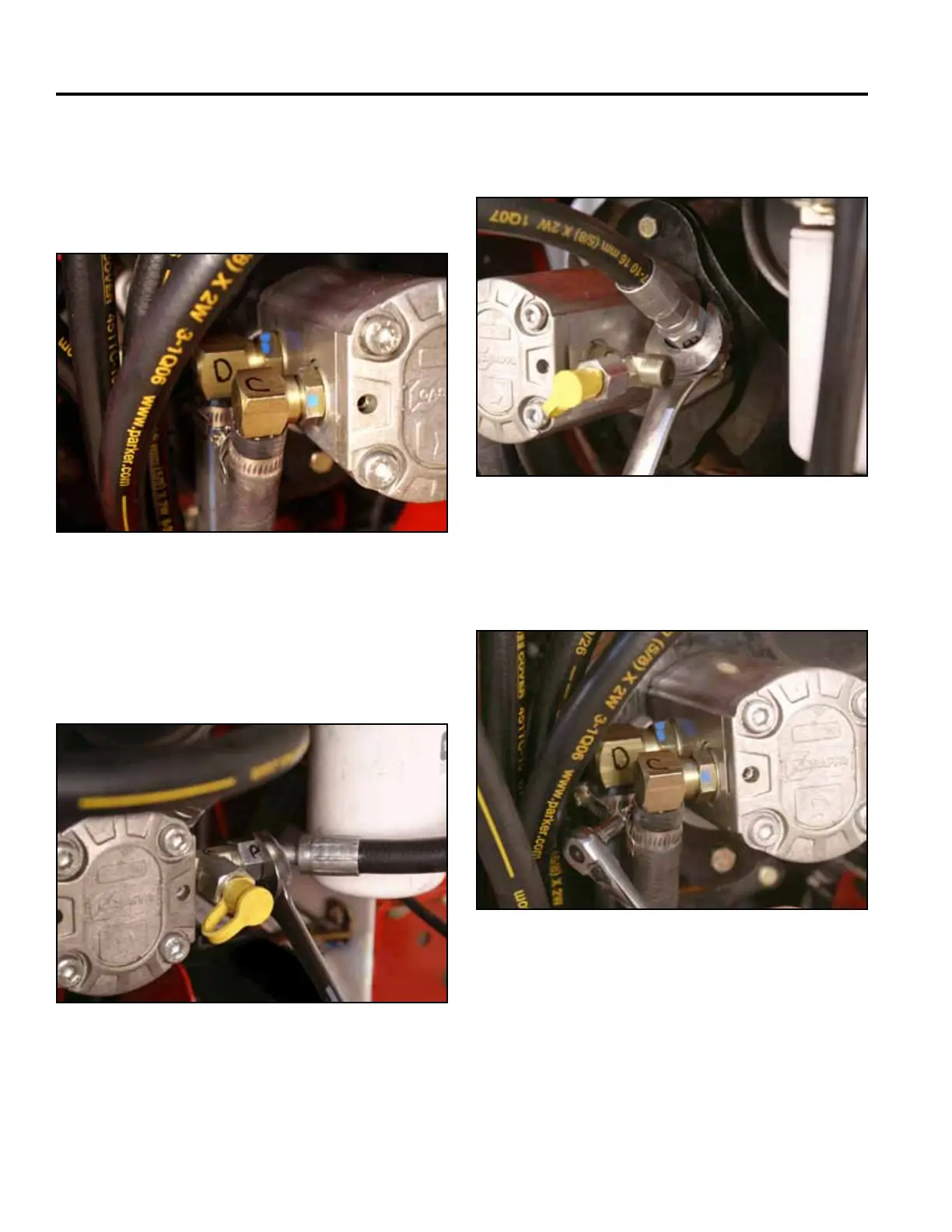

19. Placeadrainpanunderthehydraulictandempump.
20. Usinga15/16”wrench,removethehydraulicline
fromthetestportt-tting(Fig.0328).
Fig 0328 PICT-4768b
C. Suctionlinefromthetank(smallertting)(Fig.
0327).
D. Suctionlinefromthetank(largertting)(Fig.
0327).
Fig 0327 PICT-4767
21. Usinga1-1/8”wrench,removethehydraulicline
fromthepumpttinglabeledB(Fig.0329).
Fig 0329 PICT-4770a
22. Loosenthehoseclampssecuringthesuctionlines
tothepumpttingsmarkedCandD(Fig.0330).
Fig 0330 PICT-4773a
