ENGINE
4-72 Rev. 000 TX525 Service Manual

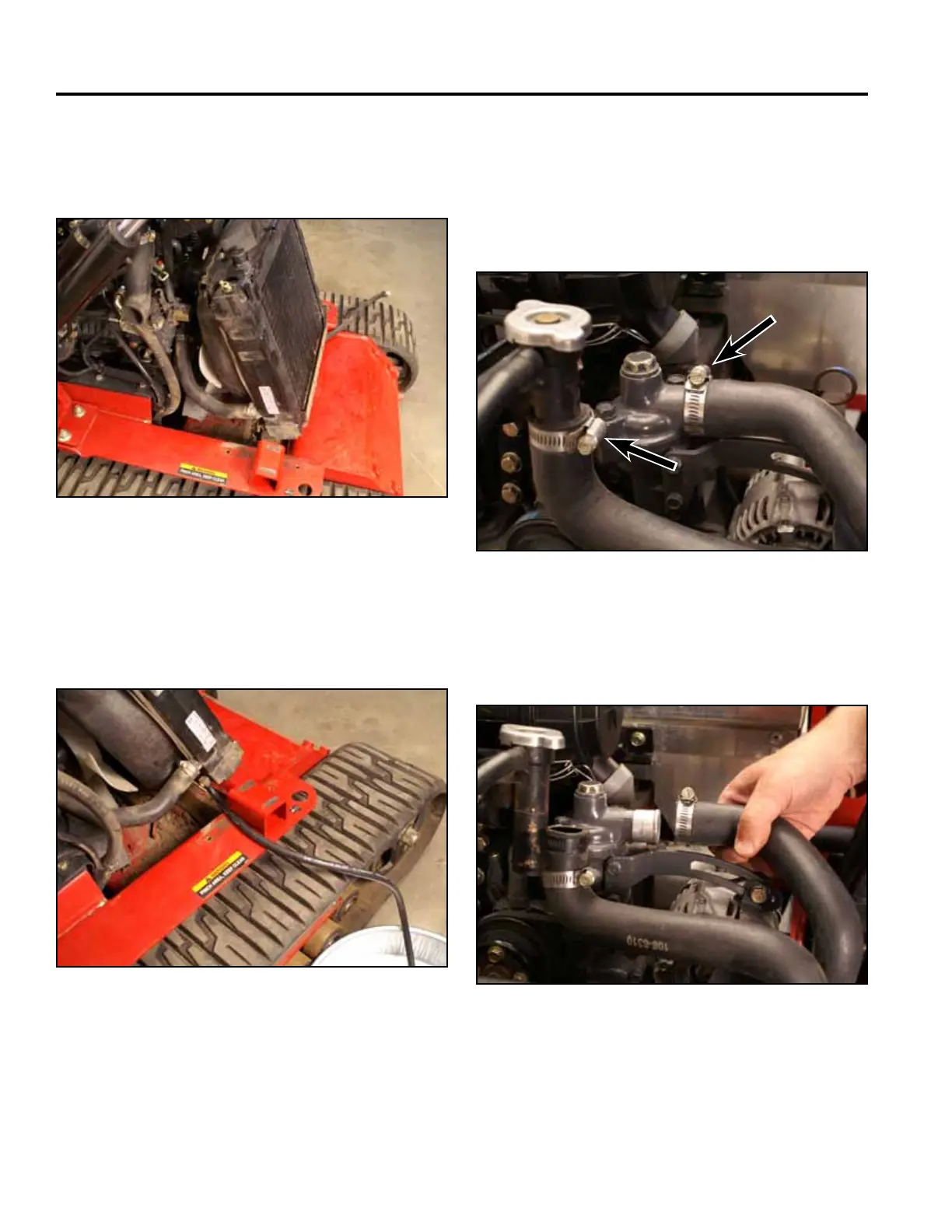

39. Tilttheradiator/oilcoolerassemblyforwardandlift
itoutoftheframesothatthedrainpetcockisabove
theframe(Fig.0342).
Fig 0342 PICT-4973
40. Slidealengthof5/16”hoseontothedrainpetcock.
Placetheotherendofthehoseintoadrainpan.
Openthepetcockandremovetheradiatorcapto
drainthecoolant(Fig.0343).
Fig 0343 PICT-4974
41. Removethedrainhoseandclosethepetcock.Set
theradiatorbackinplaceintheframe.
42. Usinga3/8”socket,loosenthehoseclampssecur-
ingtheradiatorhosestotheradiatorlltubeand
thermostathousing(Fig.0344).
Fig 0344 PICT-5395
43. Slidethe2radiatorhosesofftheradiatorlltube
andthethermostathousing(Fig.0345).
Fig 0345 PICT-5397
