ENGINE
4-83TX525 Service Manual Rev. 000

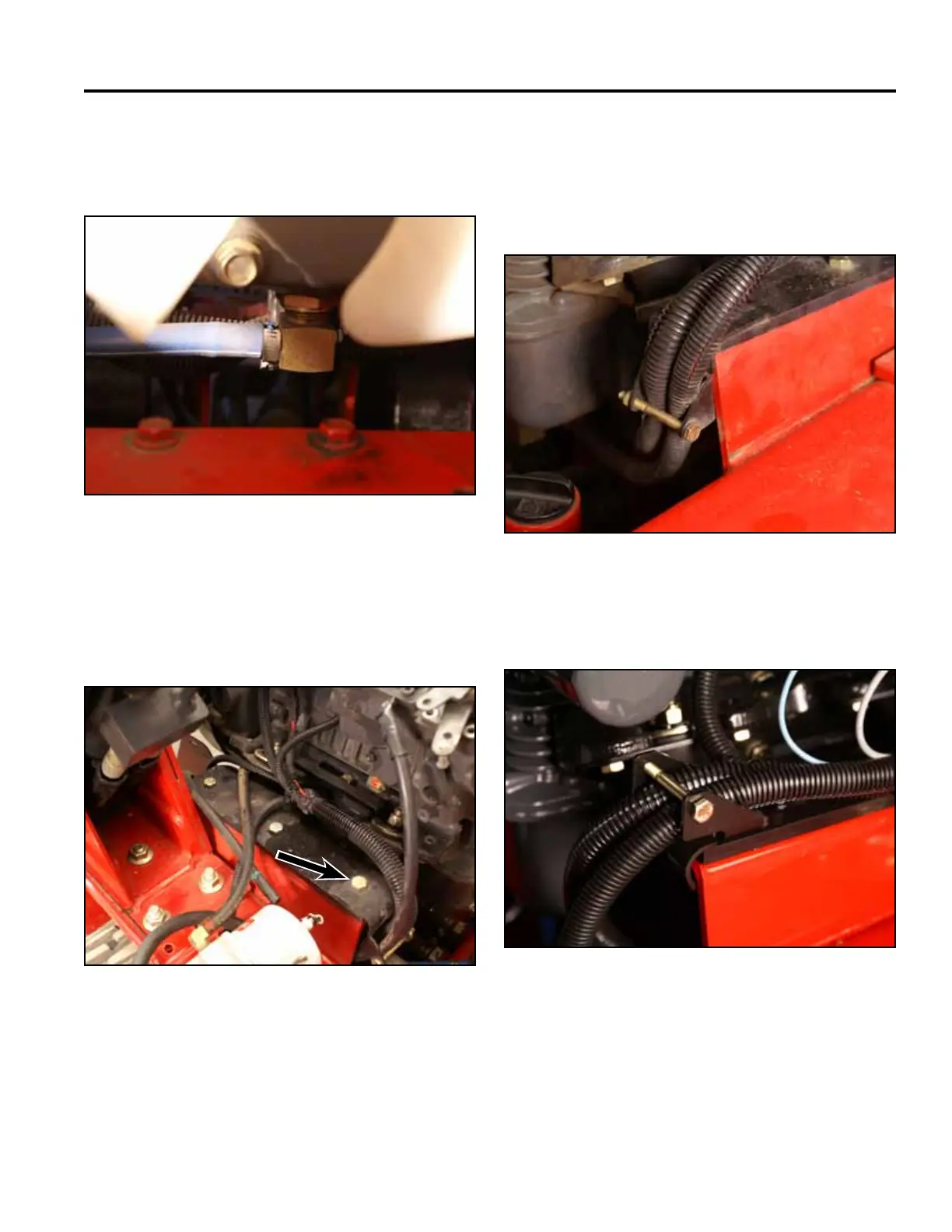

85. Loosenthehoseclampsecuringtheoildrainhose
totheengine.Disconnecttheoildrainhosefromthe
engineoildrainange(Fig.0386).
Fig 0386 PICT-5478
86. Usinga9/16”socketandwrench,removethebolt
andnutsecuringtherighthandsideoftheengine
assemblymountandcableguidetothemainframe
(Fig.0387).
Fig 0387 PICT-5479
Note: Both the left hand and right hand cable guide
appearance and position slightly changed
from 2007 models to 2008 and newer models
(Fig. 0388 and Fig. 0389):
 2007cableguides:
Fig 0388 PICT-5427
 2008andnewercableguide:
Fig 0389 PICT-5425
