ENGINE
4-93TX525 Service Manual Rev. 000

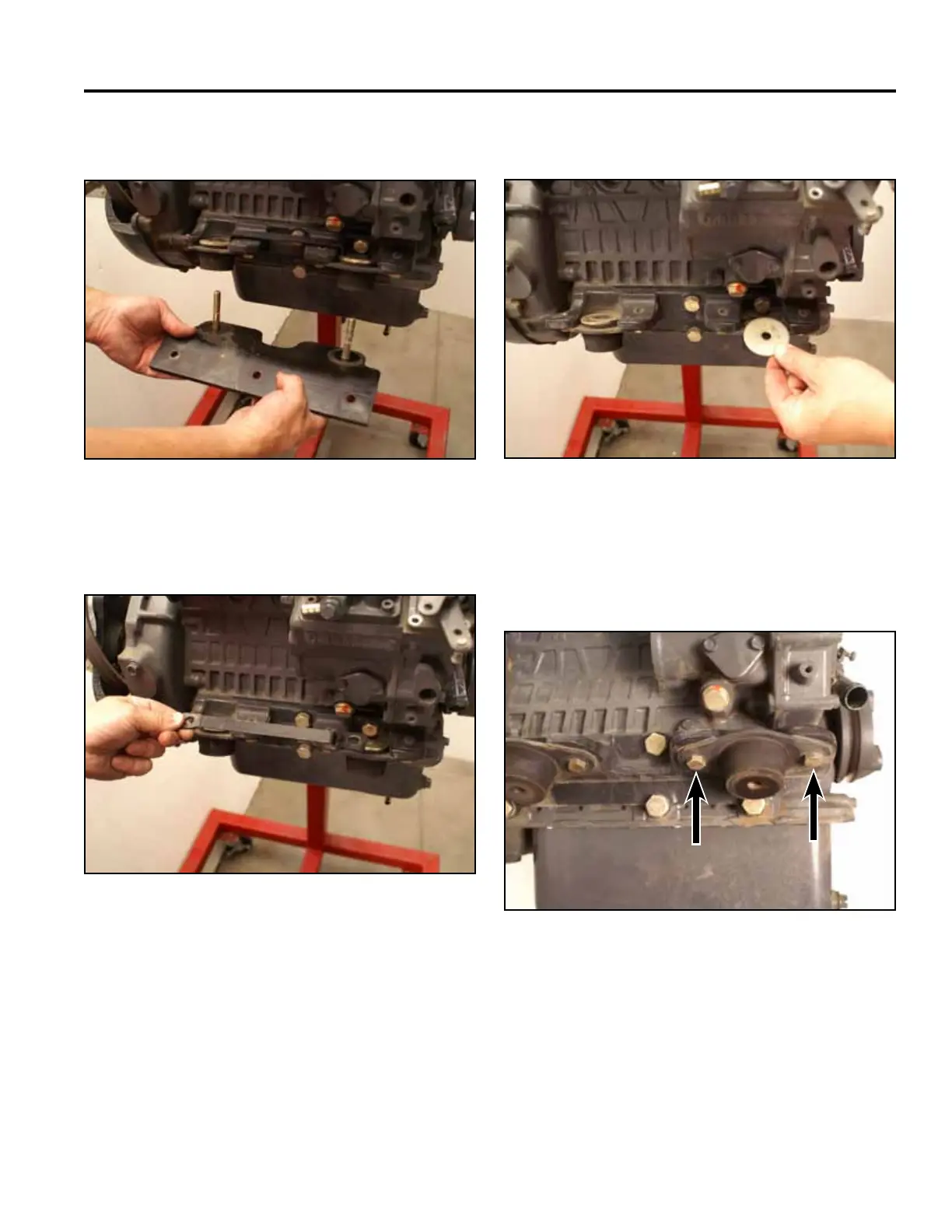

22. Removetheenginemountplate(Fig.0426).
Fig 0426 PICT-5537
23. Removethereboundstrap(Fig.0427).
Fig 0427 PICT-5538
24. Removethe2reboundwashers(Fig.0428).
Fig 0428 PICT-5539
25. Usinga1/2”socket,removethe2boltssecuringthe
forwardISOenginemounttotherighthandengine
mount(Fig.0429).
Fig 0429 PICT-5541
