ENGINE
4-94 Rev. 000 TX525 Service Manual

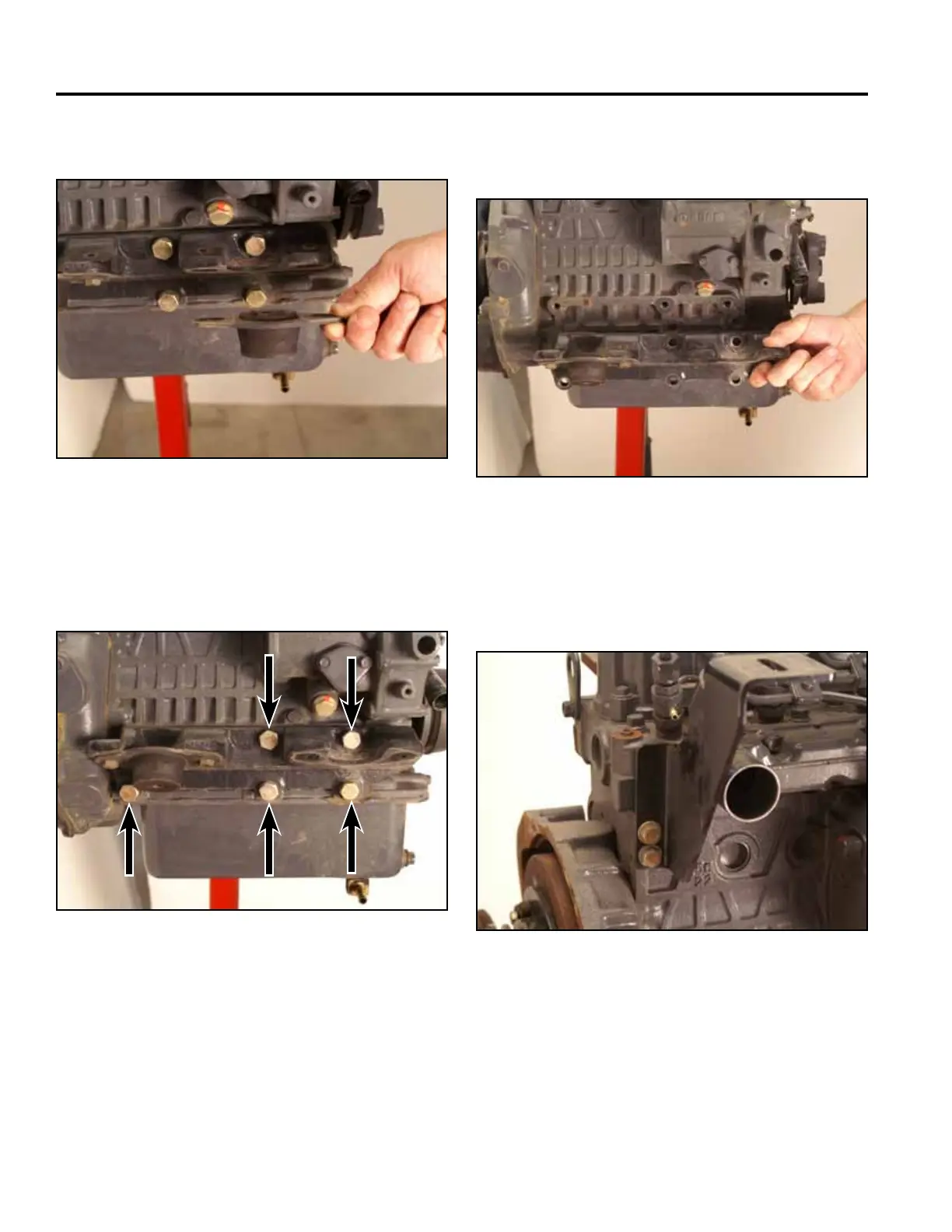

26. RemovetheISOenginemount(Fig.0430).
Fig 0430 PICT-5542
27. Usinga17mmsocket,removethe5boltssecuring
therighthandenginemounttotheengine(Fig.
0431).
Fig 0431 PICT-5543
28. Removetherighthandenginemountfromthe
engine(Fig.0432).
Fig 0432 PICT-5544
29. Usinga13mmsocket,removethe2boltsandat
washerssecuringthemufersupporttotheengine
block(Fig.0433).
Fig 0433 PICT-5545
