ENGINE
4-100 Rev. 000 TX525 Service Manual

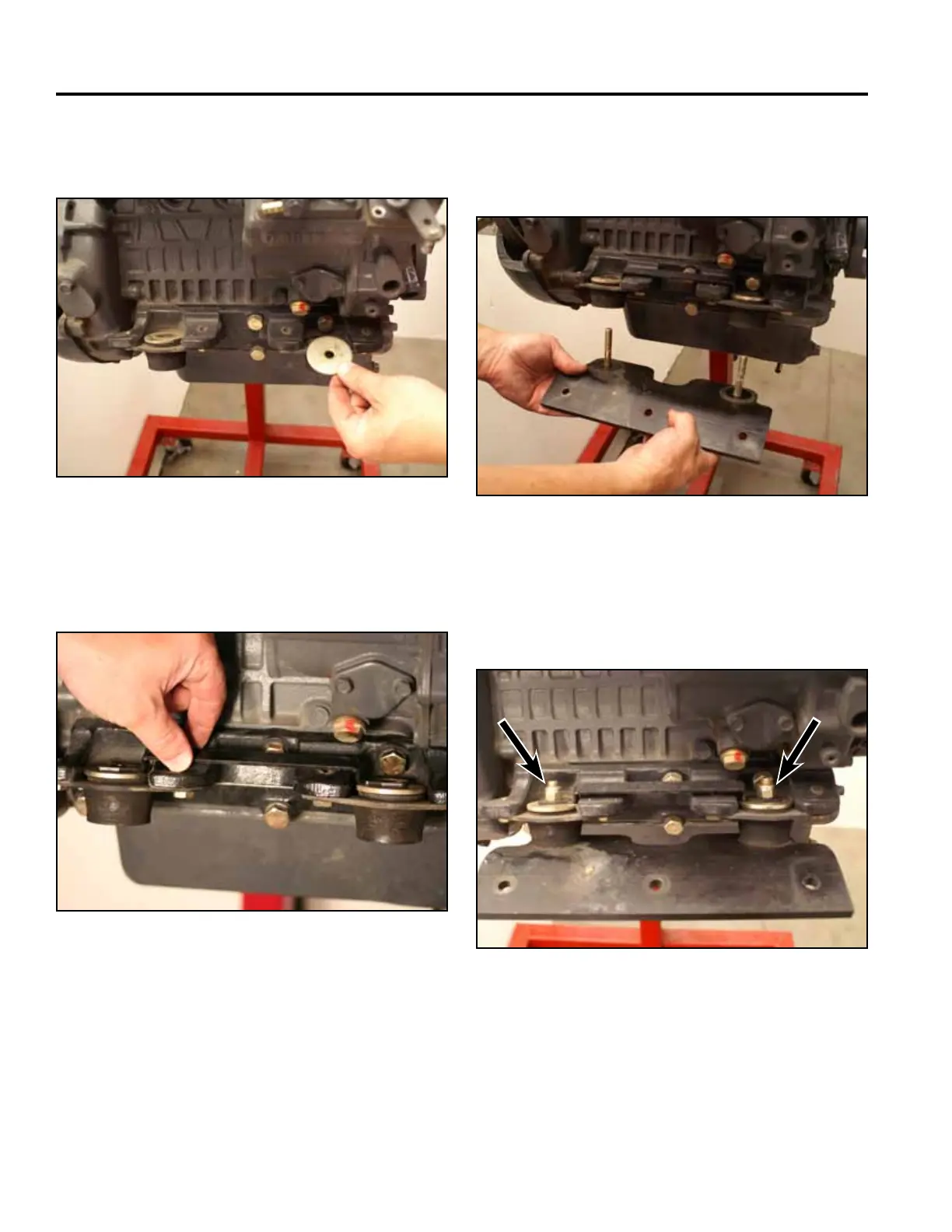

15. Position2reboundwashersontotheISOengine
mounts(Fig.0454).
Fig 0454 PICT-5539
16. Positionthereboundstrapontotherebound
washers(Fig.0455).
Fig 0455 IMG_8094
17. Positiontheenginemountplatesothattheboltsare
insertedthroughtheISOmounts,reboundwashers
andreboundstrap(Fig.0456).
Fig 0456 PICT-5537
18. Usinga9/16”socketandwrench,install2nuts
securingtheenginemountplatetotherighthand
enginemount(Fig.0457).
Fig 0457 PICT-5536
