Toro TX525 - Page 156

ENGINE
4-103TX525 Service Manual Rev. 000

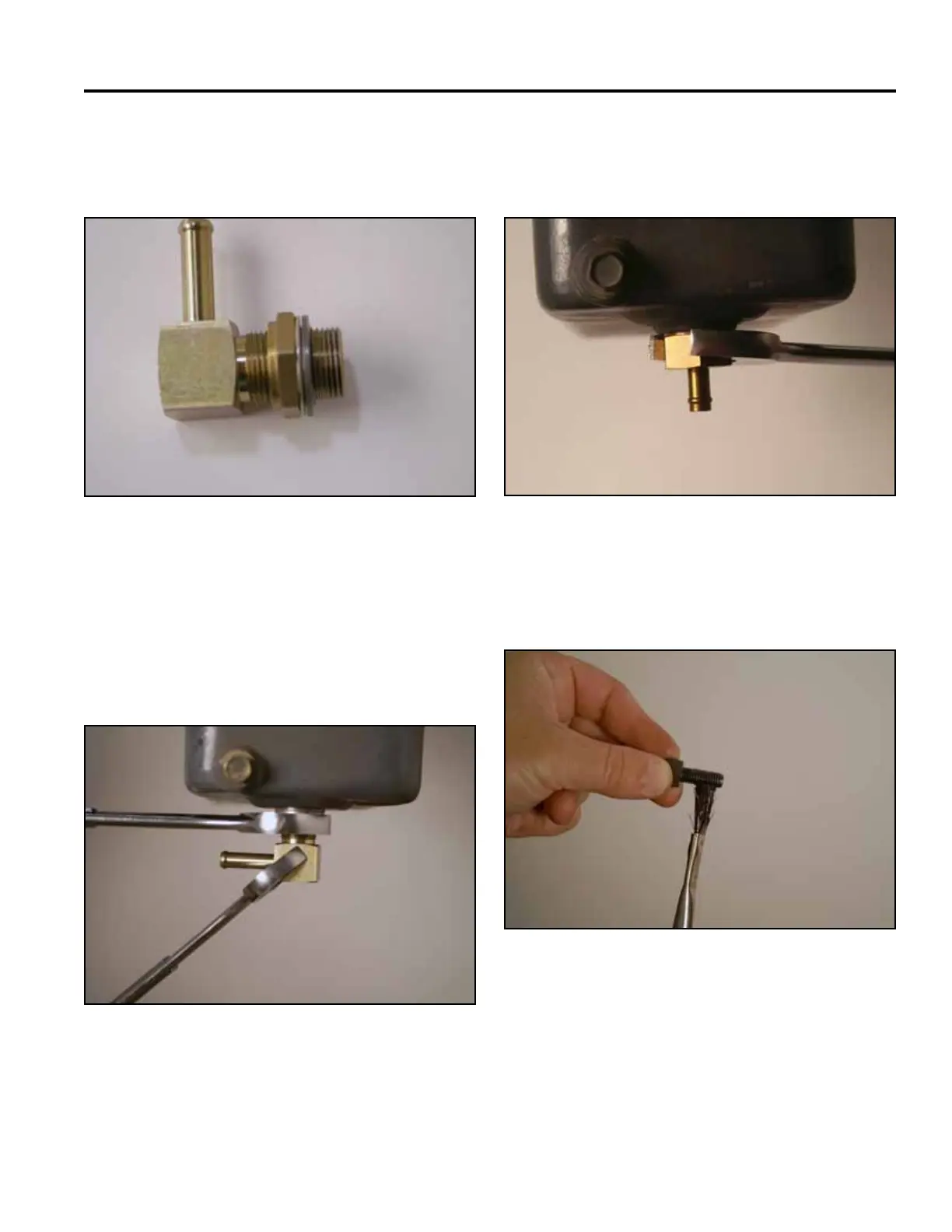

27. 90degreeoildrainttingonly:Useanewrubber
sealingwasher.Threadthelockingnutupagainst
thesealingwashersasshown(Fig.0466).
Fig 0466 PICT-5554a
28. 90degreeoildrainttingonly:Threadtheoildrain
ttingintotheoilpanuntilthewashersrestagainst
theoilpan.Positiontheoildrainttingasshown.
Usinga1”wrenchtoholdtheoildraintting,usea
1-1/8”wrenchtotightenthejamnutupagainstthe
washers(Fig.0467).
Fig 0467 PICT-5555a
30. Applythreadlockingcompoundtothe3fanmount
spacerbolts(Fig.0469).
Fig 0469 PICT-5540a
29. Straightoildrainttingonly:Useanewrubber
sealingwasher.Usinga1-1/8”wrench,installtheoil
drainttingintotheoilpanandtighten(Fig.0468).
Fig 0468 PICT-8723a
