ENGINE
4-114 Rev. 000 TX525 Service Manual

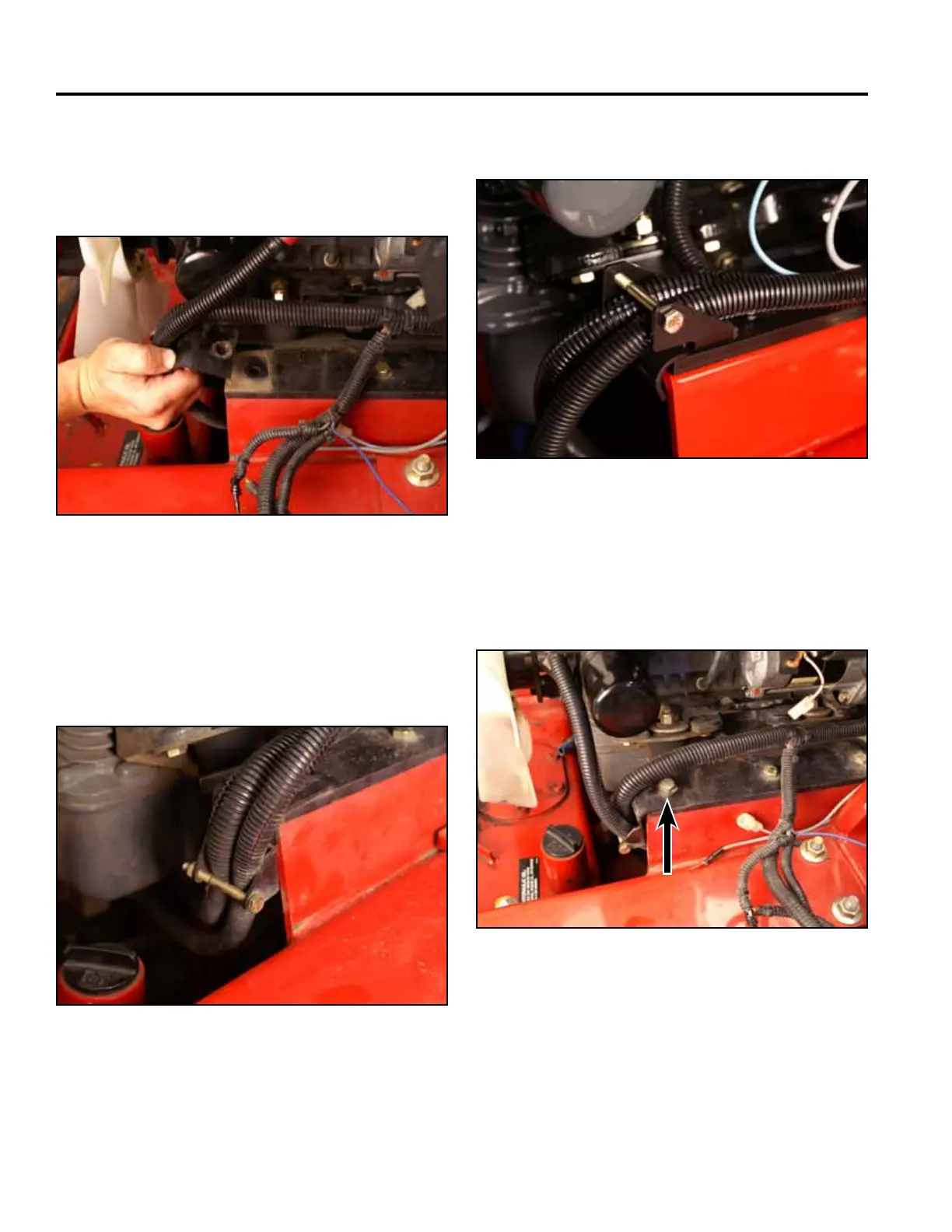

17. Positionthelefthandcableguideandtherouted
harnesscablesaligningthecableguidemounting
holewiththeengineandmainframemountinghole
(Fig.0508).
Fig 0508 PICT-5483
Note: Both the left hand and right hand cable guide
appearance and position slightly changed
from 2007 models to 2008 models (Fig. 0509
and Fig. 0510):
2007cableguides:
Fig 0509 PICT-5427
2008cableguide:
Fig 0510 PICT-5425
18. Usinga9/16”socketandwrench,looselyinstallthe
boltandnutsecuringthelefthandsideoftheengine
assemblyandcableguidetothemainframe(Fig.
0511).
Fig 0511 PICT-5482
