ENGINE
4-122 Rev. 000 TX525 Service Manual

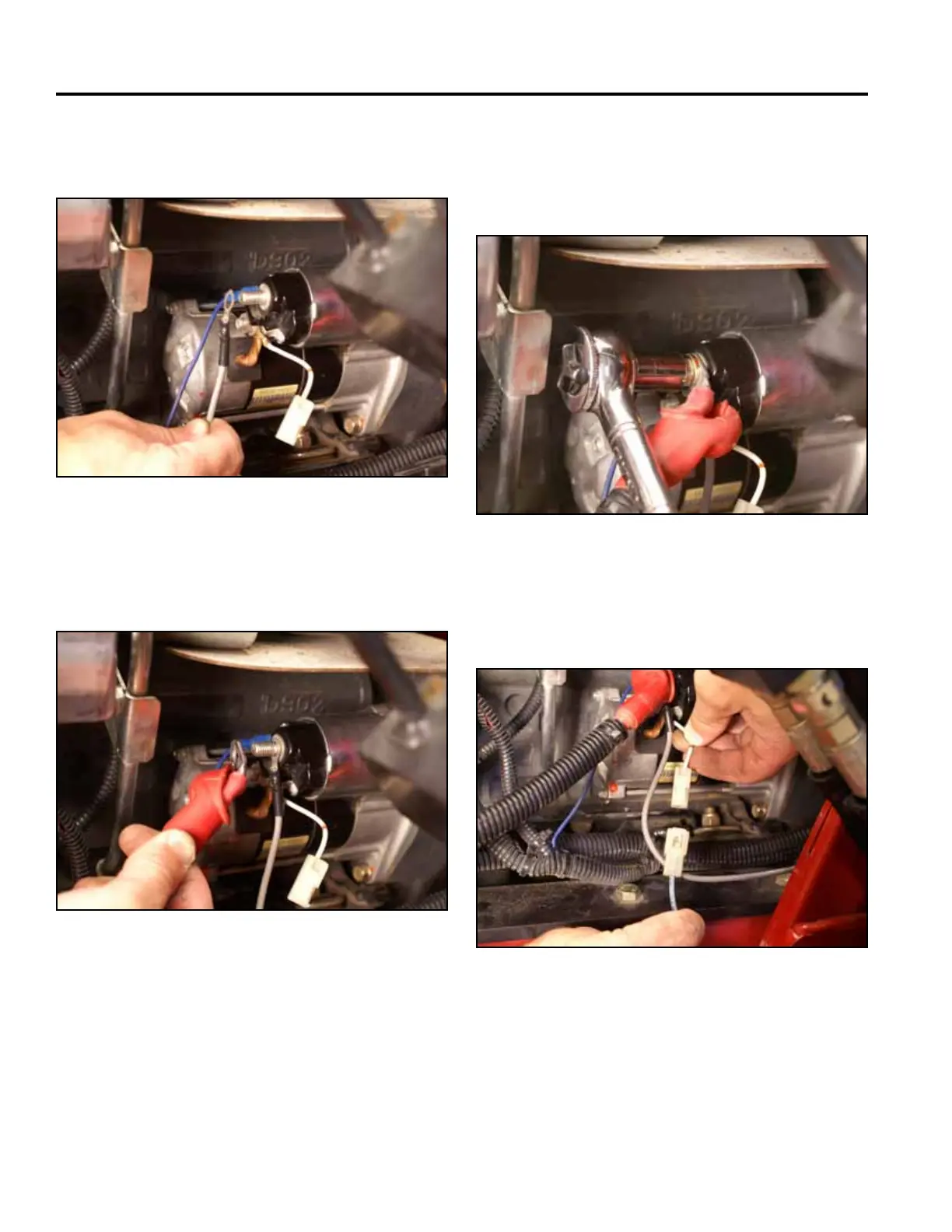

44. Slidethe2.0mm(grey)fusiblelinkterminalontothe
starterterminal(Fig.0539).
Fig 0539 PICT-5448
45. Slidethepositivebatterycableontothestarter
terminal(Fig.0540).
Fig 0540 PICT-5447
46. Usinga12mmsocket,installanutsecuringthe
fusiblelinkandpositivebatterycabletothestarter
terminal.Slidetheredbootovertheterminal(Fig.
0541).
Fig 0541 PICT-5446a
47. Plugtheharnessconnectorintothe.08mm(blue)
fusiblelinkconnector(Fig.0542).
Fig 0542 PICT-5444
