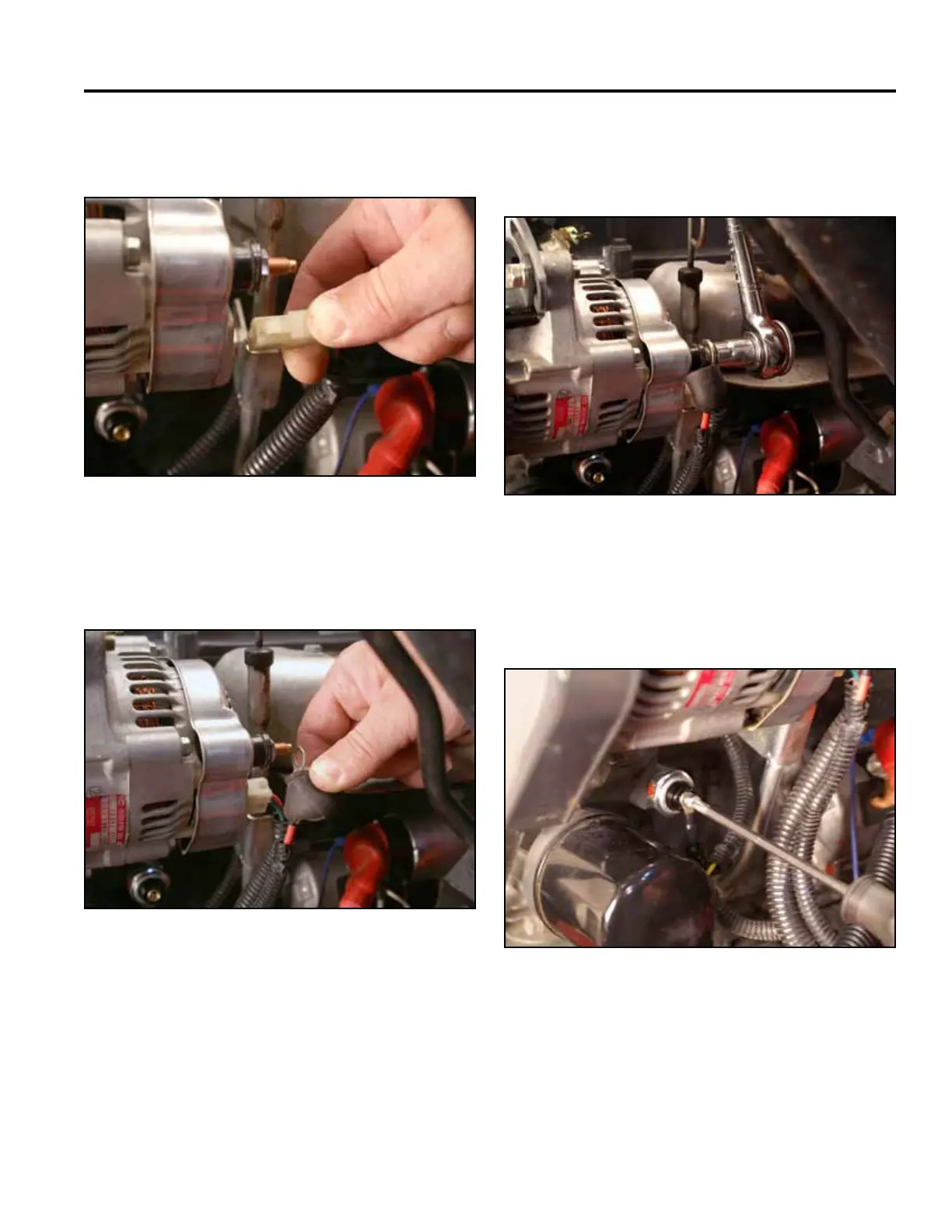

48. Plugtheharnessconnectorintothealternator(Fig.
0543).
Fig 0543 PICT-5439a
49. Slidetheharnessterminalontothealternator
terminal(Fig.0544).
Fig 0544 PICT-5437a
50. Usinga10mmsocket,installanutandwasher
securingtheharnessterminaltothealternator(Fig.
0545).Slidethebootontotheterminal.
Fig 0545 PICT-5436
51. UsingaPhillipsscrewdriver,installascrewsecuring
theharnessterminaltotheengineoilpressure
sensor(Fig.0546).
Fig 0546 PICT-5432
