Toro TX525 - Page 179

ENGINE
4-126 Rev. 000 TX525 Service Manual

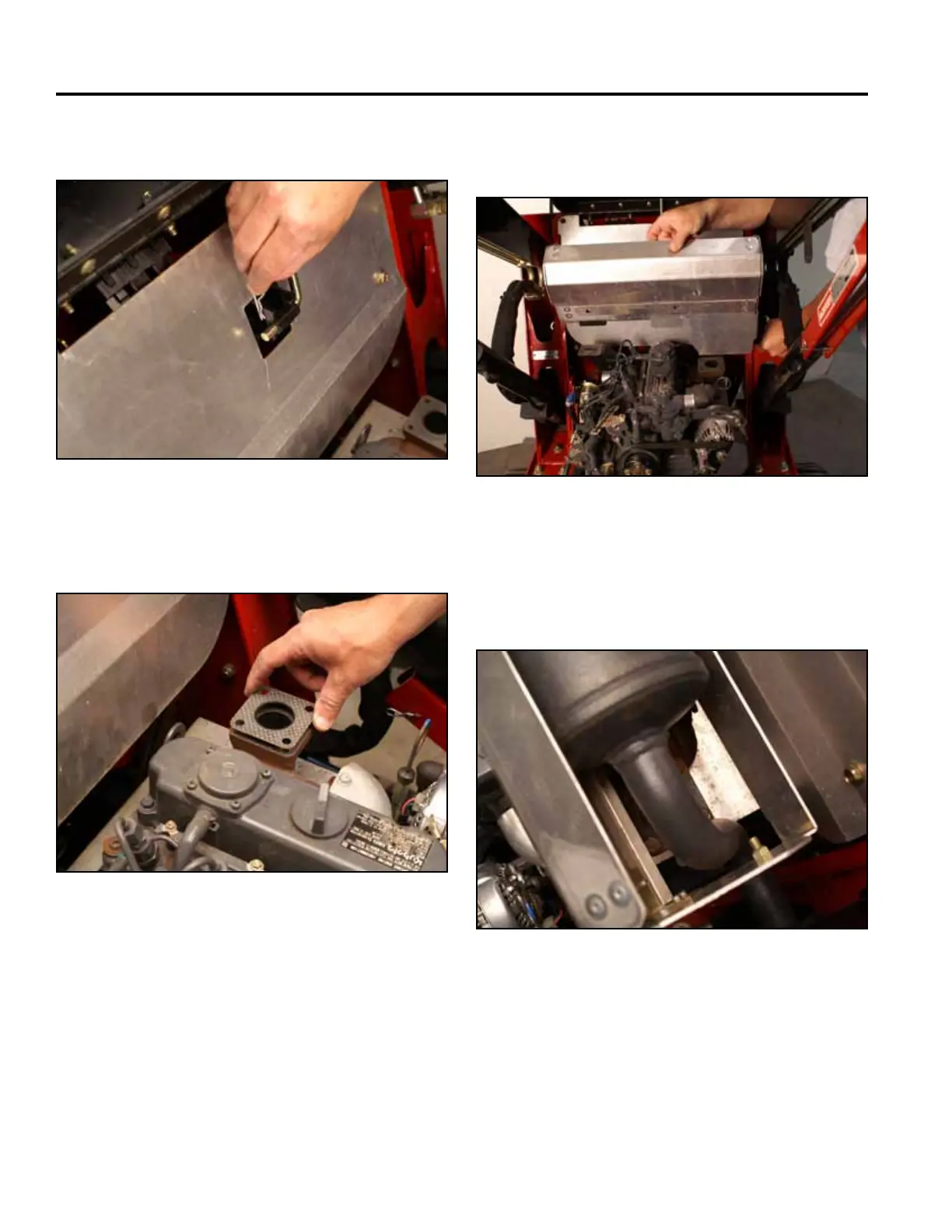

59. Installahairpincotterintothehoodrod(Fig.0555).
Fig 0555 PICT-5417
60. Installanewmanifoldgasket(Fig.0556).
Fig 0556 PICT-5250
61. Positionthemuferassemblyontothemufer
bracketandmanifold(Fig.0557).
Fig 0557 PICT-5416
62. Usinga13mmsocket,install4boltsandwashers
securingthemufertotheenginemanifold(Fig.
0558).
Fig 0558 PICT-5248
