ENGINE
4-127TX525 Service Manual Rev. 000

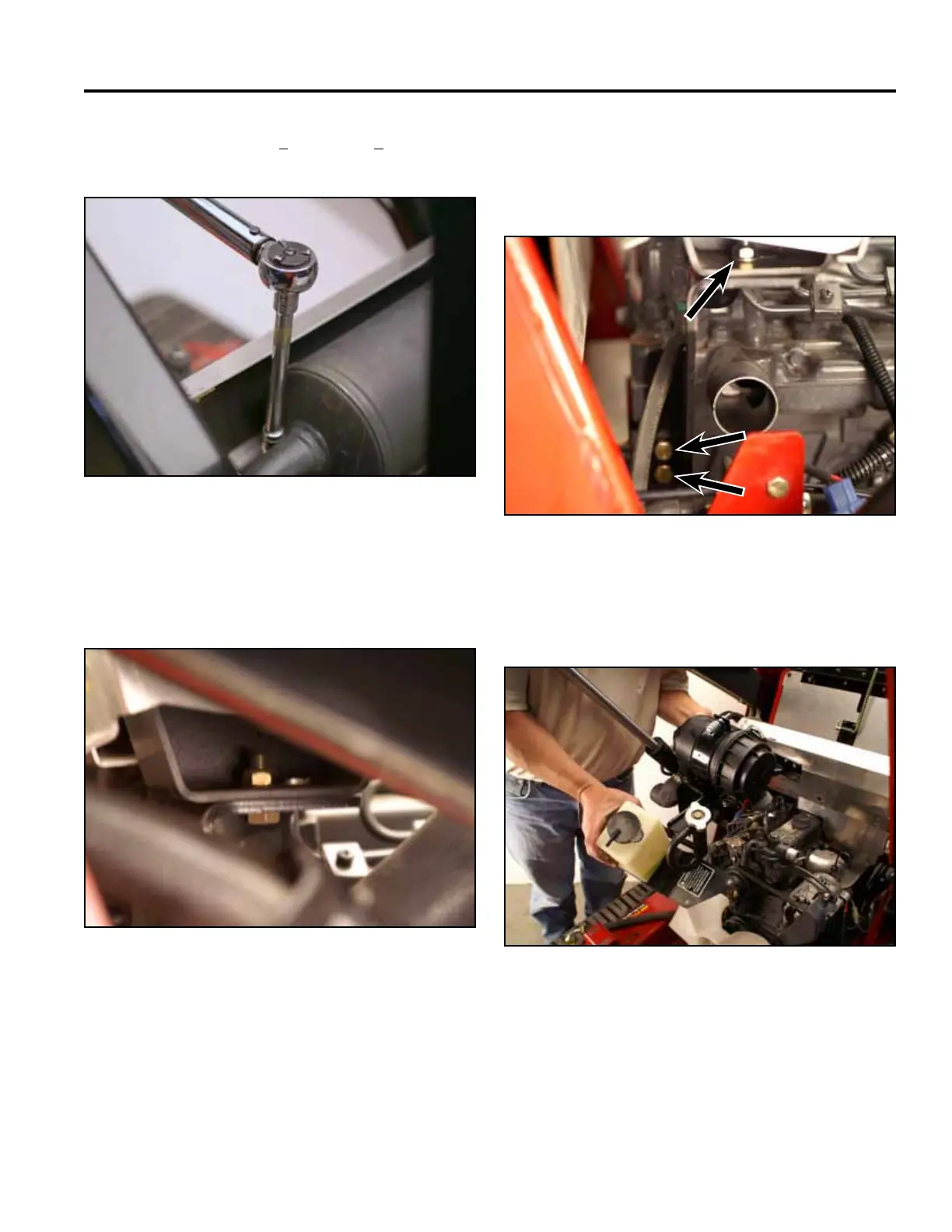

63. Torquethe4boltsto28+3ft-lbs.(38+4Nm)(Fig.
0559).
Fig 0559 PICT-5602a
64. Usingtwo1/2”wrenches,snuglyinstallthebolt,2
washersandnutsecuringthemuferassemblyto
themufermountingbracket(Fig.0560).
Fig 0560 PICT-5245
65. Tightenthe2bolts(previouslylooselyinstalled)
securingthemufermountingbrackettotheengine
block.Tightentheboltsecuringthemufertothe
mufermountingbracket(Fig.0561).
Fig 0561 PICT-5603
66. Positiontheaircleanerandcoolantoverowbottle
assemblyontotheengine(Fig.0562).
Fig 0562 PICT-5413
