87. Install2boltsandnutssecuringtheoverowbottle
assemblytothegrillassembly(Fig.0583).

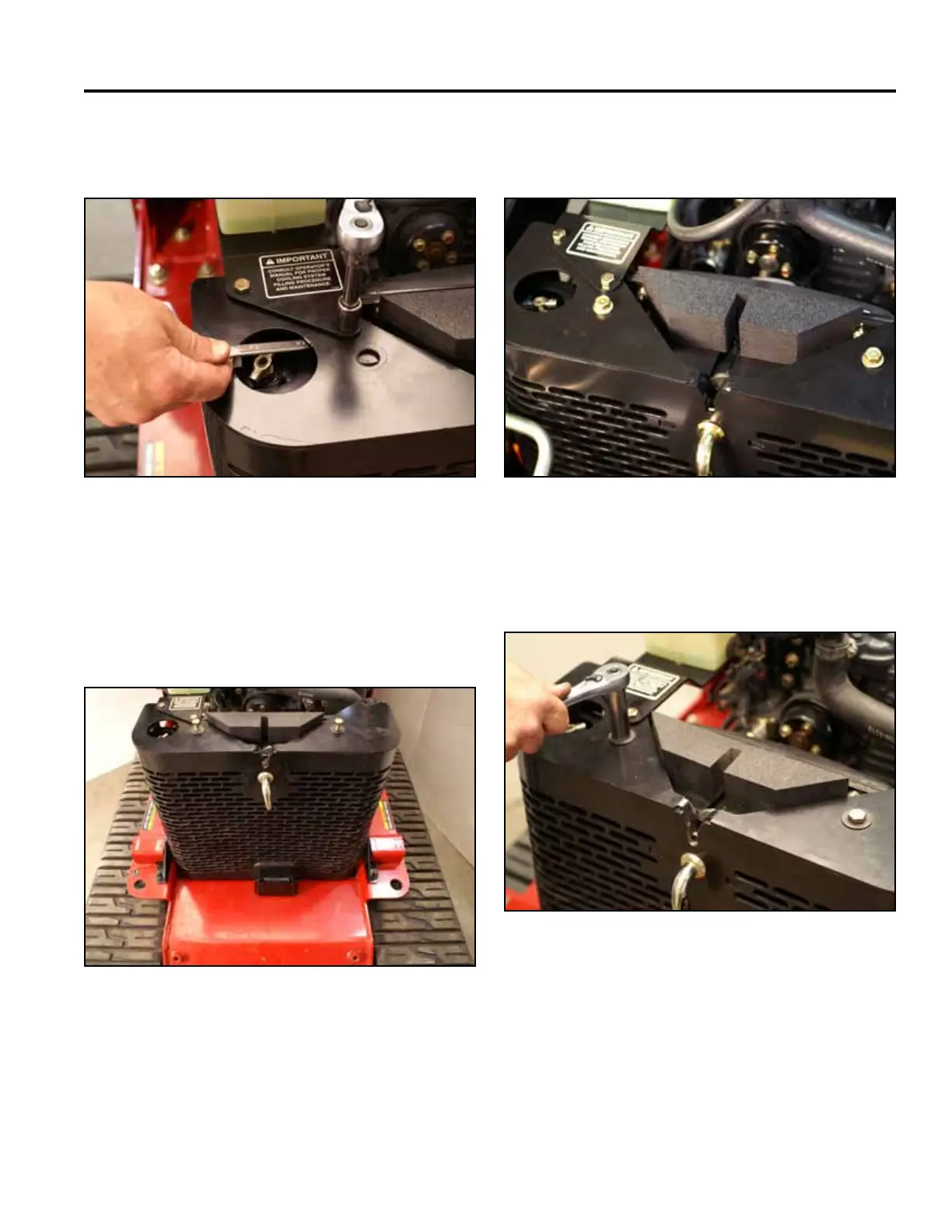

Fig 0583 PICT-5145
88. Slidethegrillassemblybackaligningthemounting
holeswiththeholesintheframe.Looselyinstall
the4boltssecuringthegrillassemblytotheframe
andthe2boltsandwasherssecuringthegrilltothe
radiator(Fig.0584).
Fig 0584 PICT-5146
TX525(#280000001&higher):Have2angehead
bolts,nowashers(Fig.0585).
Fig 0585 PICT-5605
TX525(#270000001-270999999):Have2boltsand
washers(Fig.0586).
Fig 0586 PICT-5604
