ENGINE
4-135TX525 Service Manual Rev. 000

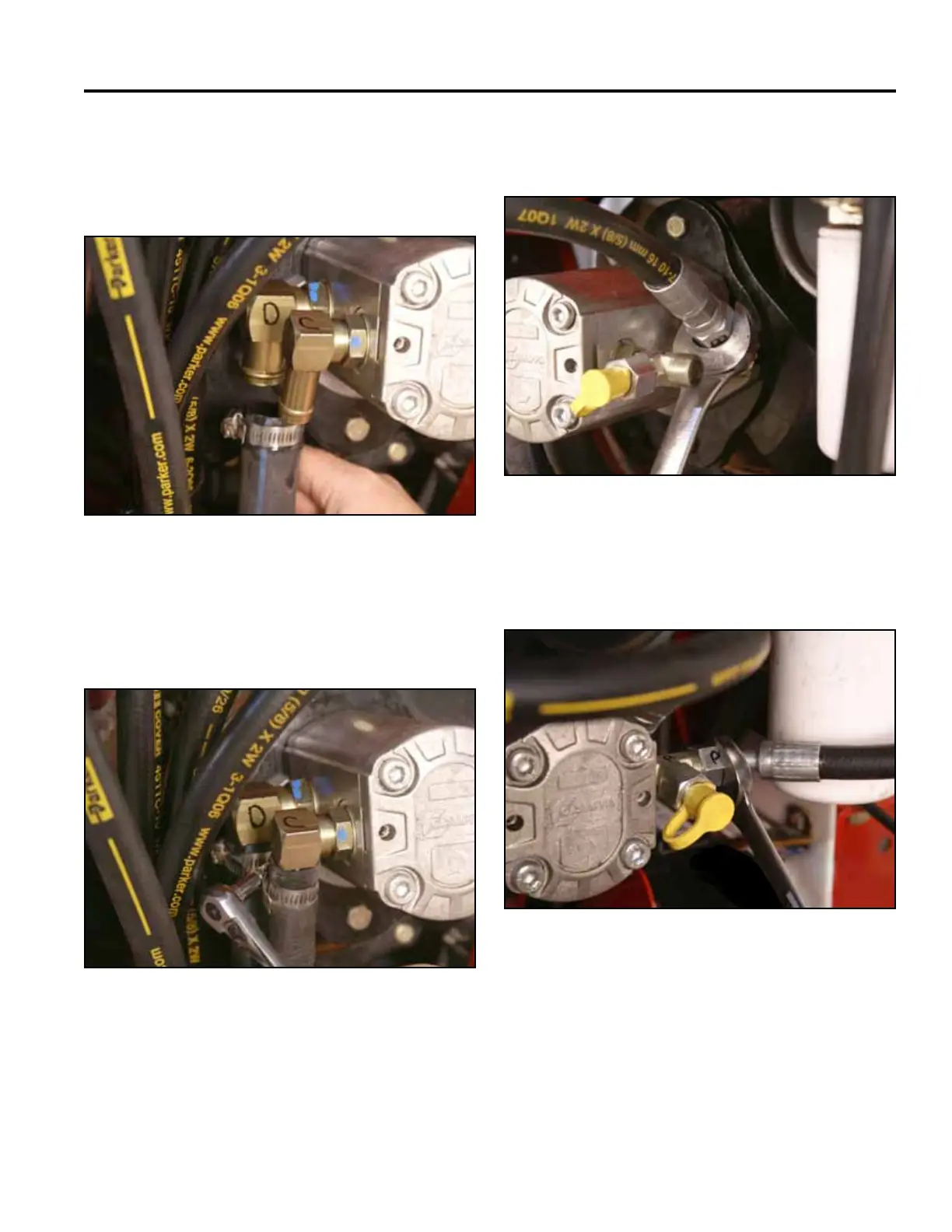

94. Slidethesuctionhosesontothetandempump
suctionttings(Fig.0591).
 C. Suctionlinefromthetank(smallertting).
 D. Suctionlinefromthetank(largertting).
Fig 0591 PICT-4775a
95. Positionthehoseclampsandtightensecuringthe
suctionhosestothepumpttingsmarkedCandD
(Fig.0592).
Fig 0592 PICT-4773a
96. Usinga1-1/8”wrench,installthehydrauliclineto
thepumpttinglabeledB(Fig.0593).
Fig 0593 PICT-4770a
97. Usinga15/16”wrench,installthehydrauliclineto
thetestportt-ttinglabeledA(Fig.0594).
Fig 0594 PICT-4768b
