Toro TX525 - Page 222

ENGINE
4-169TX525 Service Manual Rev. 000

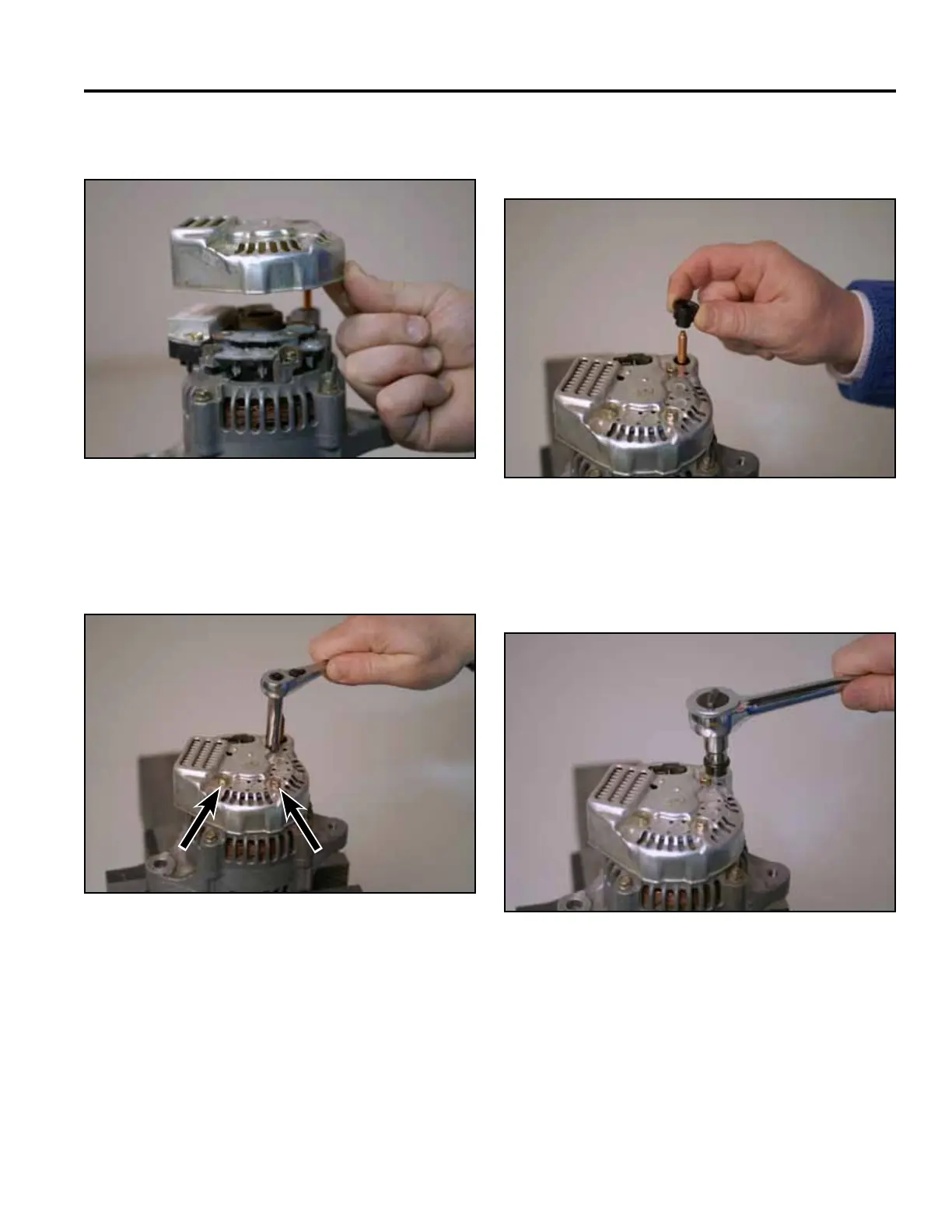

20. Slidetheinsulationbushingontothebatterypost
(Fig.0719).
18. Slidetheendcoverontothealternator(Fig.0717).
Fig 0719 PICT-8263a
Fig 0717 PICT-8260a
19. Usinga7mmsocket,install3boltstosecuretheend
covertothealternator(Fig.0718).
Fig 0718 PICT-8261a
21. Usinga10mmsocket,installthebatterypostnut
(Fig.0720).
Fig 0720 PICT-8265a
