ENGINE
4-175TX525 Service Manual Rev. 000

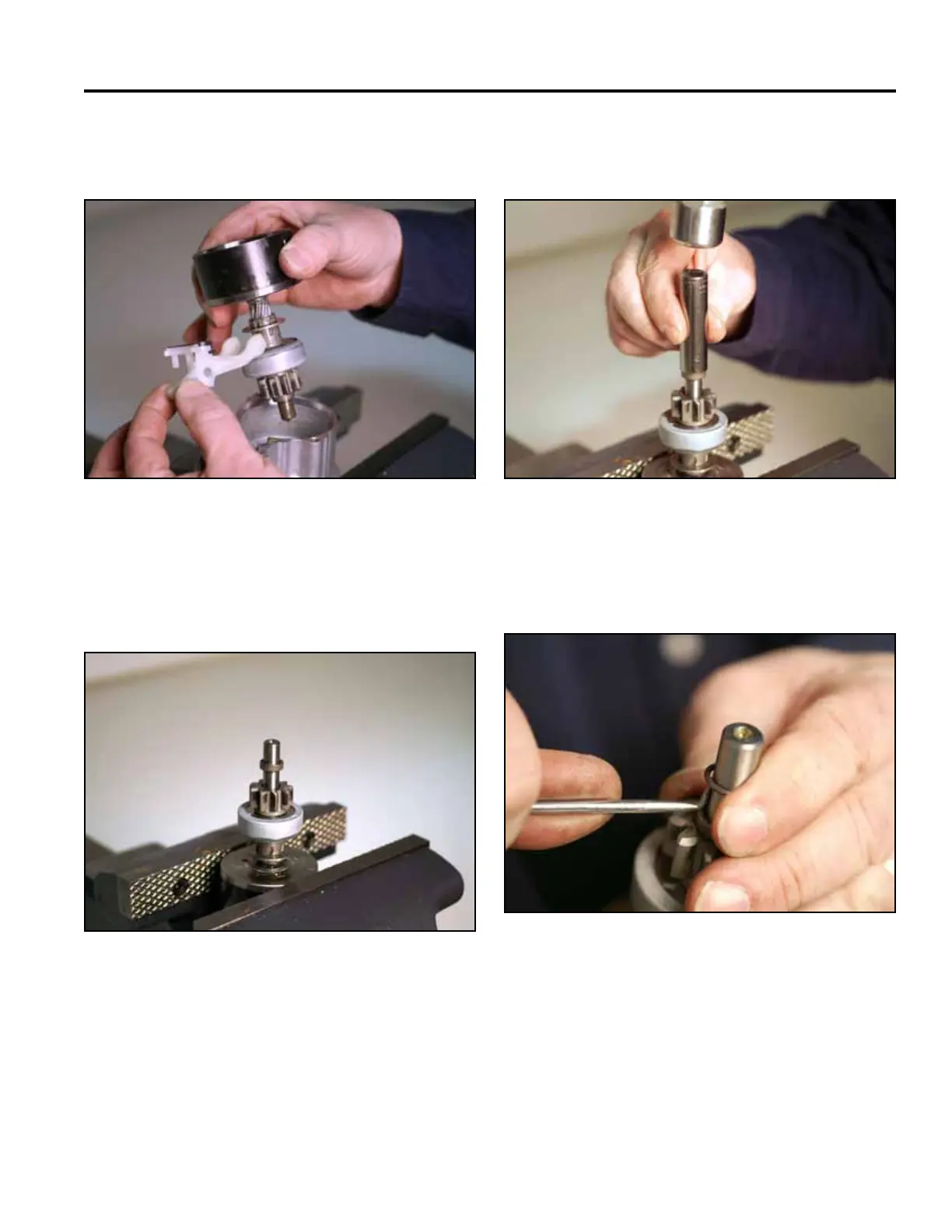

16. Drawouttheshaftassemblywiththedriveleverand
theoverrunningclutchfromthehousing(Fig.0740).
18. Usinga12mmsocket,drivethecollaroffthecirclip
ontheshaftassembly(Fig.0742).
Fig 0740 PICT-8045a
Fig 0742 PICT-8048a
19. Removethecirclipfromtheshaftassembly(Fig.
0743).
17. Removethestarterhousingfromtheviseandclamp
theshaftassemblyintothevisewiththeclutch
assemblyfacingup(Fig.0741).
Fig 0743 PICT-8050a
Fig 0741 PICT-8047a
