21. Liftthespringsbackandslidethe2positivebrushes
intotheopenslotsonthespringholderassembly.
Releasethesprings(Fig.0778).
23. Slidetheframeassemblyontothestarterassembly
aligningthenotchintheframewiththegrommeton
theyoke(Fig.0780).

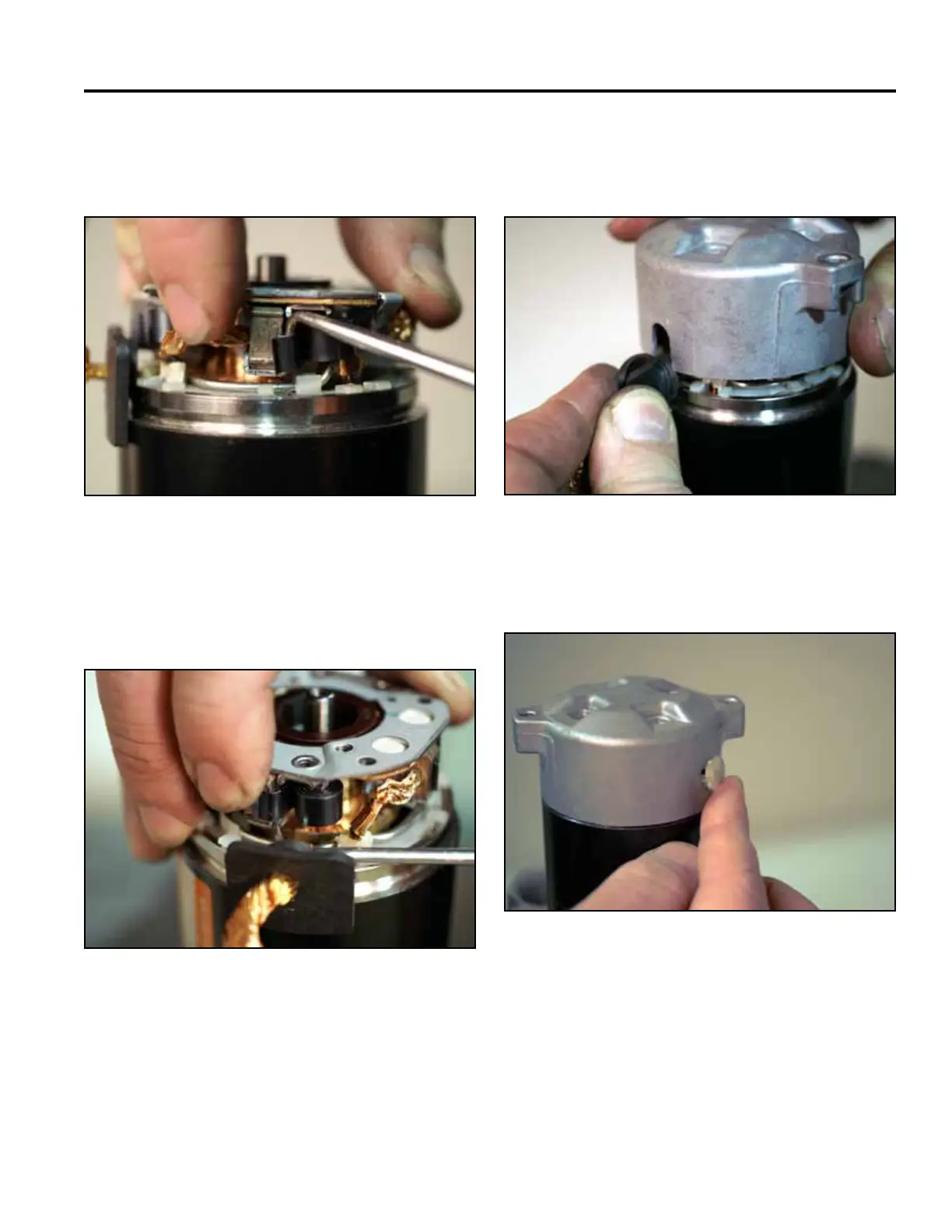

Fig 0778 PICT-8135 Fig 0780 PICT-8141a
24. Insertthecoverintotheframeassembly(Fig.0781).
22. Liftthespringsbackandslidethe2xedbrushes
intothebrushholder.Releasethesprings(Fig.
0779).
Fig 0781 PICT-8145a
Fig 0779 PICT-8137
