ENGINE
4-186 Rev. 000 TX525 Service Manual

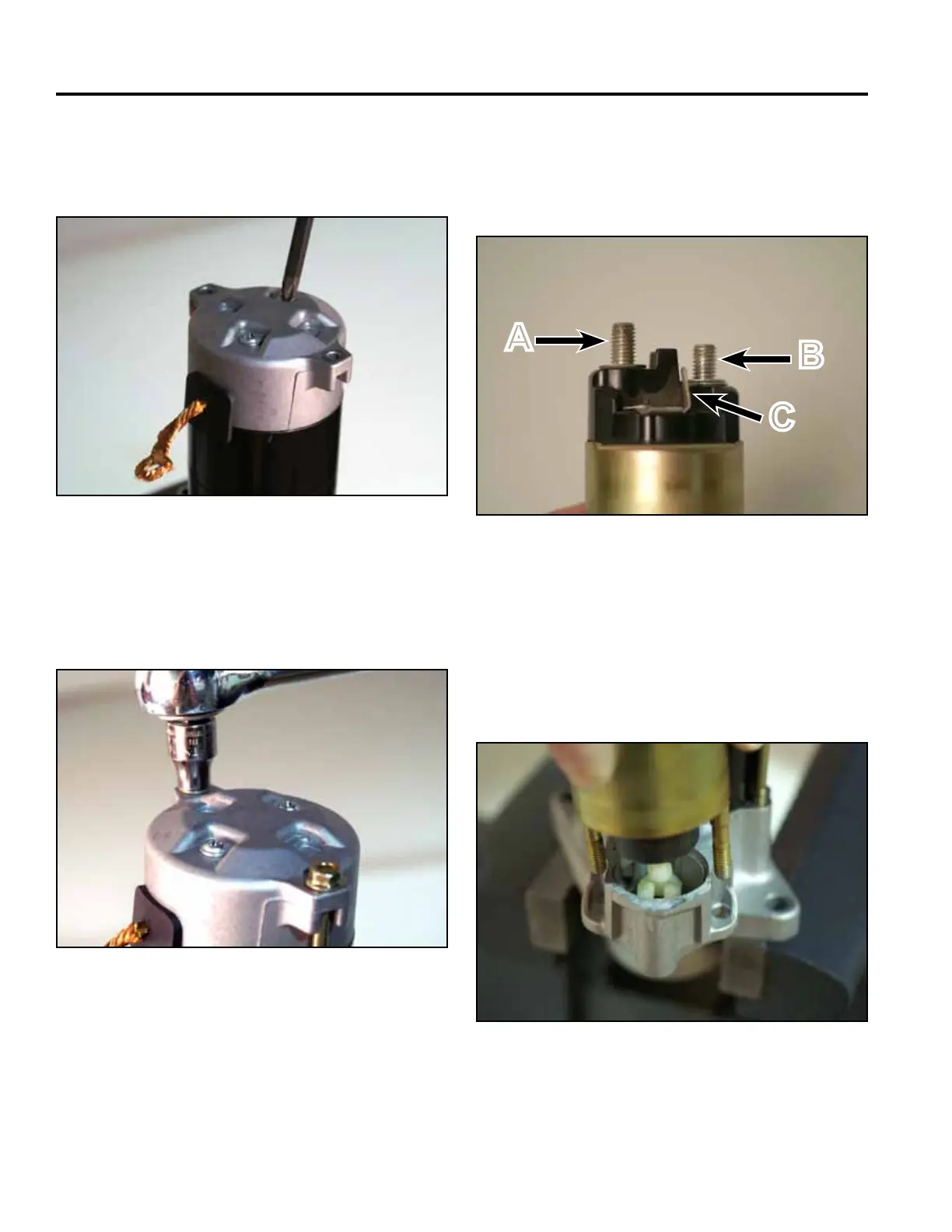

25. UsingaPhillipsscrewdriver,install2screws
securingtheframeassemblytothebrushspring
(Fig.0782).
27. Positionthemagneticswitchontothestarterwiththe
shortterminalpositionedclosesttothestarter.
 MagneticSwitchTerminals(Fig.0784)
Fig 0782 PICT-9119a
Fig 0784 PICT-8149a
A. Tallterminal B. Shortterminal(closest
C. Spadeplug  tothestarter)
26. Usingan8mmsocket,install2throughbolts
securingtheframeassemblytostarterassembly
(Fig.0783).
Fig 0783 PICT-9121a
A
B
C
Note: The end of the solenoid being inserted into
the starter housing must engage with the
starter lever (Fig. 0785).
Fig 0785 PICT-8156
