HYDRAULIC SYSTEM
6-68 Rev. 000 TX525 Service Manual

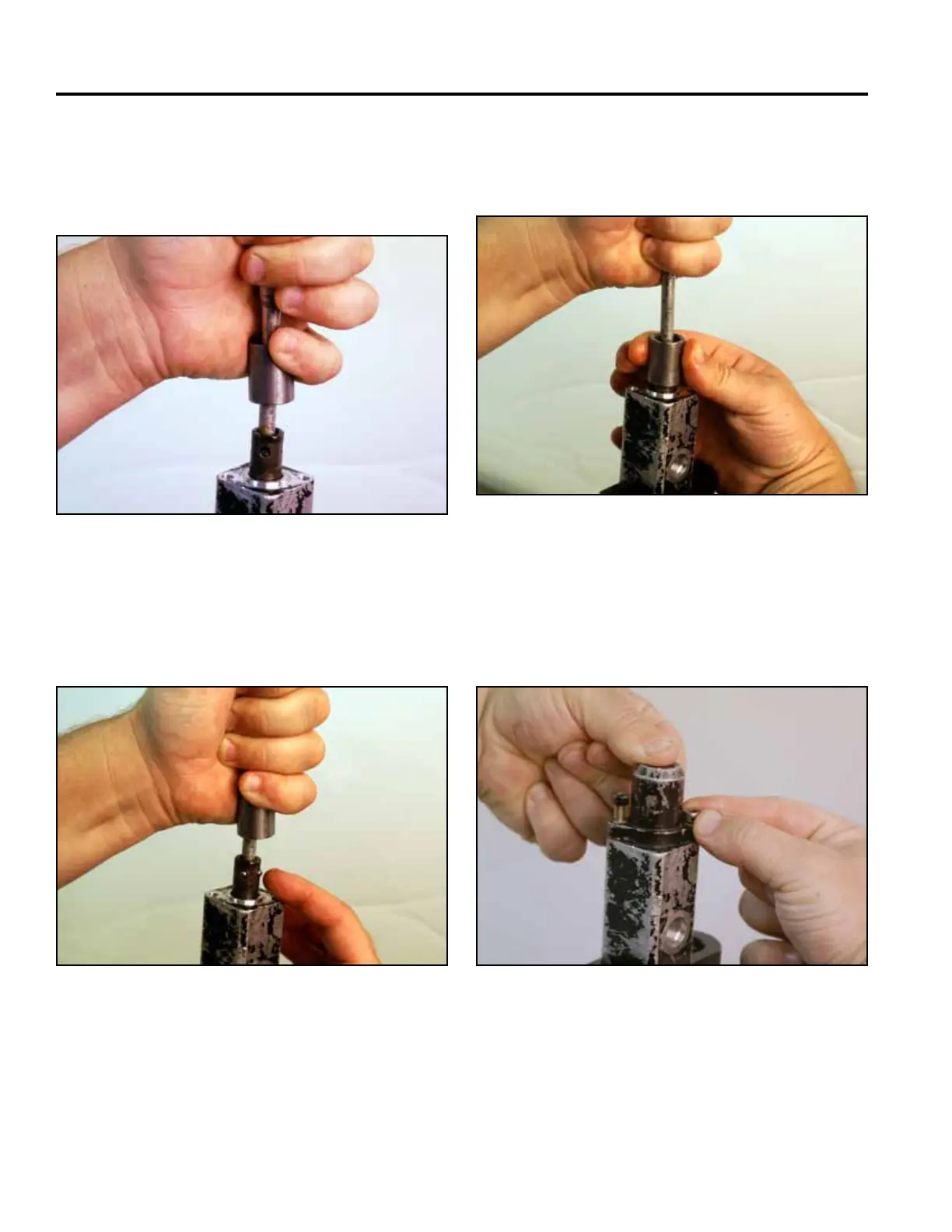

14. Hold the steel collar onto the punch and push down
on the center ball with the punch until the center ball
is below the four holes in the spring retainer (Fig.
1088).
16. Slide the steel collar over the spring retainer and
slowly release the pressure from the center ball (Fig.
1090).
Fig 1088 PICT-2737a
Fig 1090 PICT-2735a
17. Install the spring cap with the 2 screws by pushing
down on the cap and evenly threading and tighten-
ing the two screws with a 4mm Allen wrench (Fig.
1091).
15. Continue holding down the center ball with the
punch and insert the four small steel balls into the
spring retainer (Fig. 1089).
Fig 1091 PICT-2738a
Fig 1089 PICT-2734a
