HYDRAULIC SYSTEM
6-70 Rev. 000 TX525 Service Manual

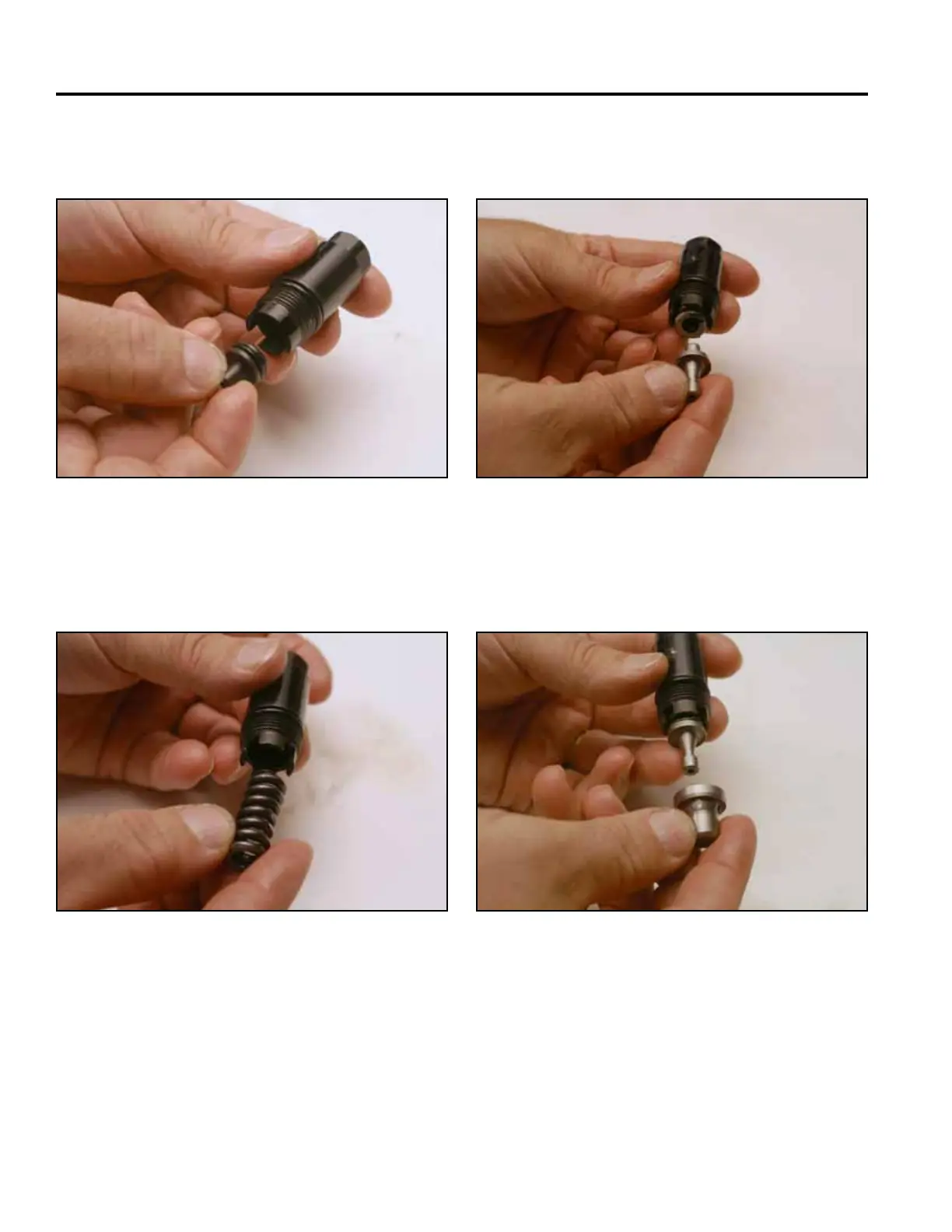

22. Lubricate the plunger and then slide the plunger into
the relief body (Fig. 1096).
24. Slide the steel plunger into the relief body (Fig.
1098).
Fig 1096 PICT-2744a
Fig 1098 PICT-2748a
25. Slide the steel plunger cap onto the plunger in the
relief body (Fig. 1099).
23. Slide the spring onto the plunger in the relief body
(Fig. 1097).
Fig 1099 PICT-2749a
Fig 1097 PICT-2745a
