HYDRAULIC SYSTEM
6-88 Rev. 000 TX525 Service Manual

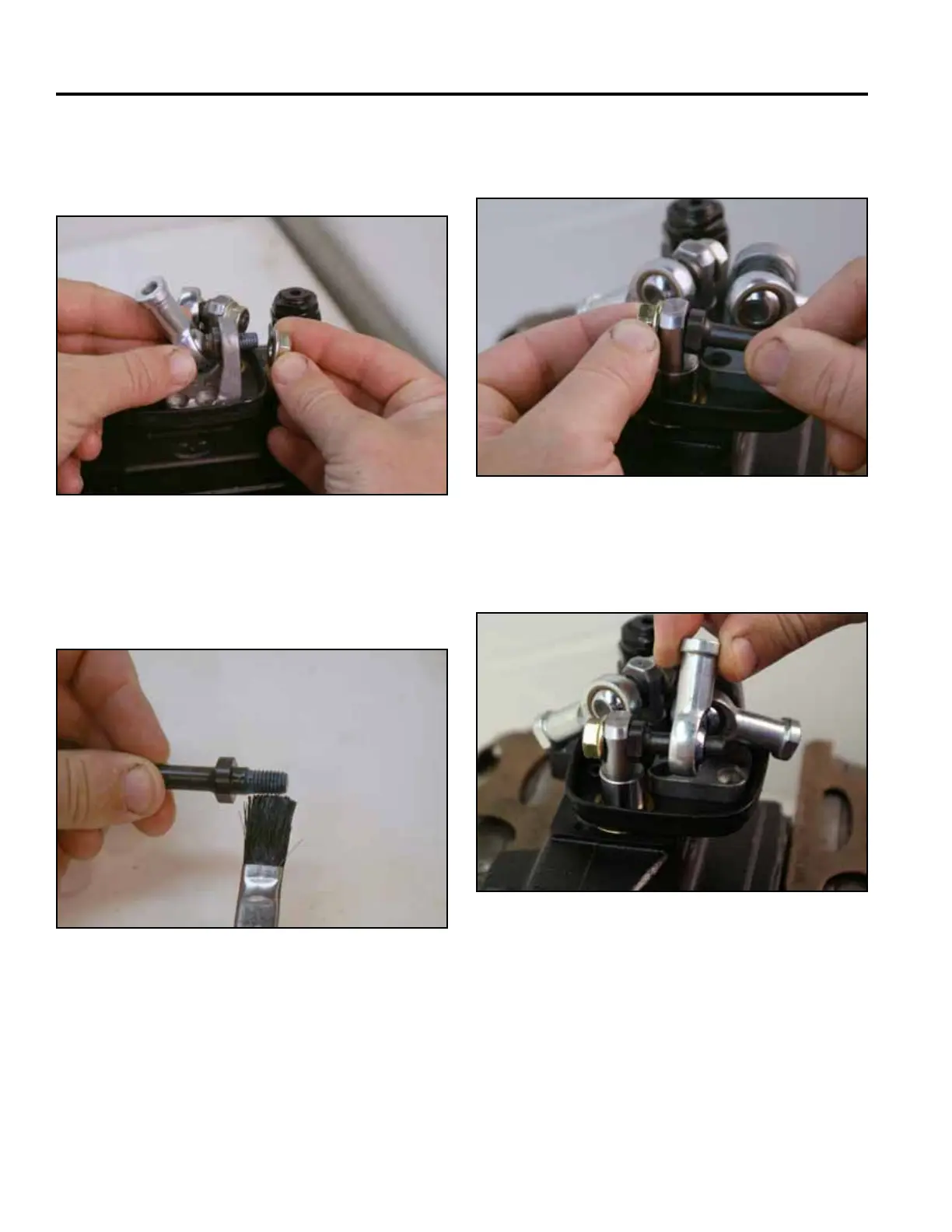

19. Position the pivot joystick joint into the pivot and
install the nut. Torque the nut to 31 ft-lbs. (42 Nm)
(Fig. 1167).
21. Position the joint pin into the tilt spool and install the
nut. Torque the nut to 31 ft-lbs. (42 Nm) (Fig. 1169).
Fig 1167 PICT-2651a
Fig 1169 PICT-2653a
22. Install the end rod onto the joystick pin (Fig. 1170).
20. Apply blue thread locking material to the threads of
the joystick pin (Fig. 1168).
Fig 1170 PICT-2654
Fig 1168 PICT-2652a
