DRIVE SYSTEM
7-22 Rev. 000 TX525 Service Manual

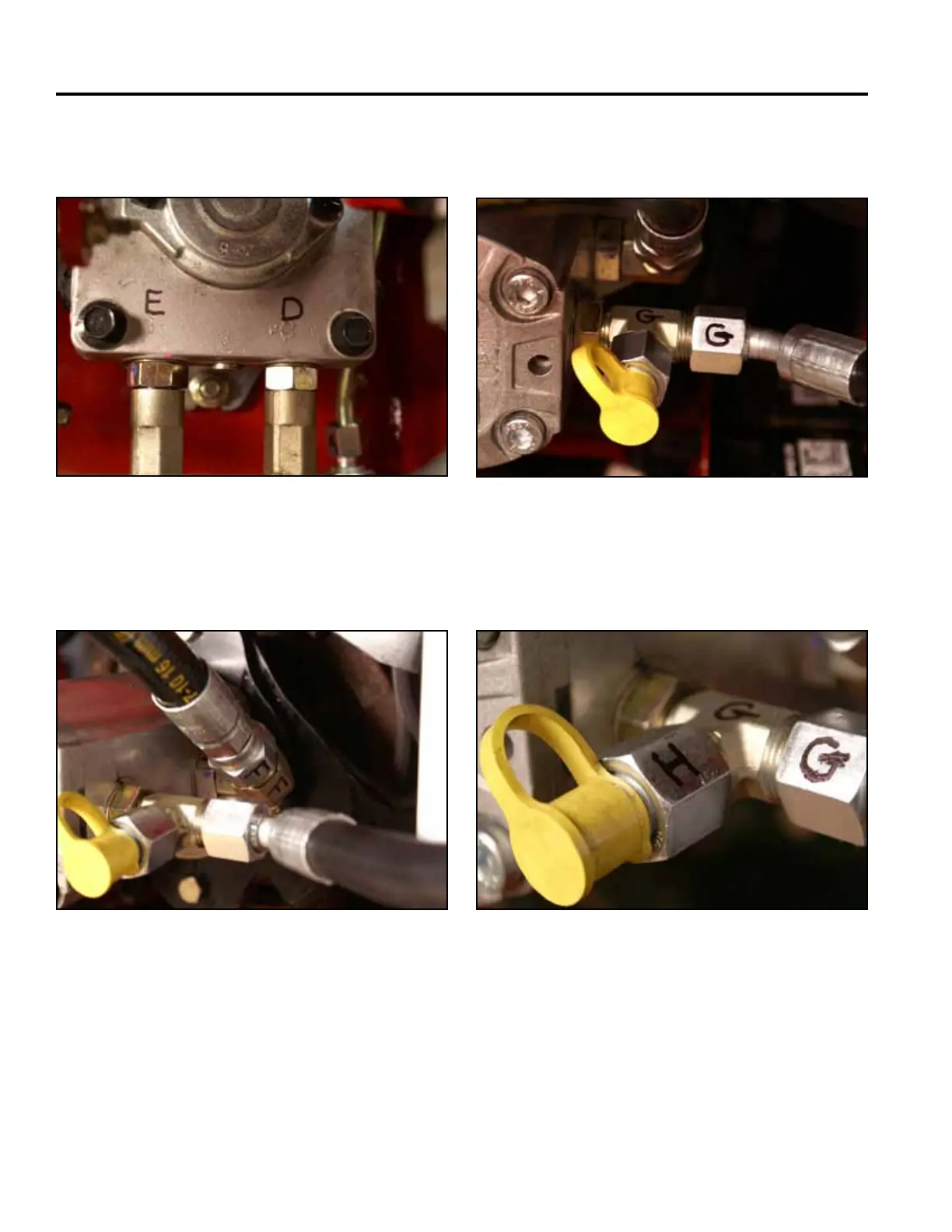

15. Mark the hydraulic pump wheel motor hoses and
ttingswiththelettersDandE(Fig.1340).
Fig 1340 PICT-4747
16. Markthetandempump,hoseandttingrunningto
the 2 spool valve with a letter “F” (Fig. 1341).
18. Markthetandempumptestportttingwiththeletter
“H” (Fig. 1343).
Fig 1341 PICT-4736 Fig 1343 PICT-4740a
17. Markthetandempump,T-ttingandhosewiththe
letter “G” (Fig. 1342).
Fig 1342 PICT-4737
