DRIVE SYSTEM
7-24 Rev. 000 TX525 Service Manual
E. Hydraulic hose running from the “E” port on the
hydrostaticpumptothelowerttingontheleft
wheel motor (Fig. 1348).

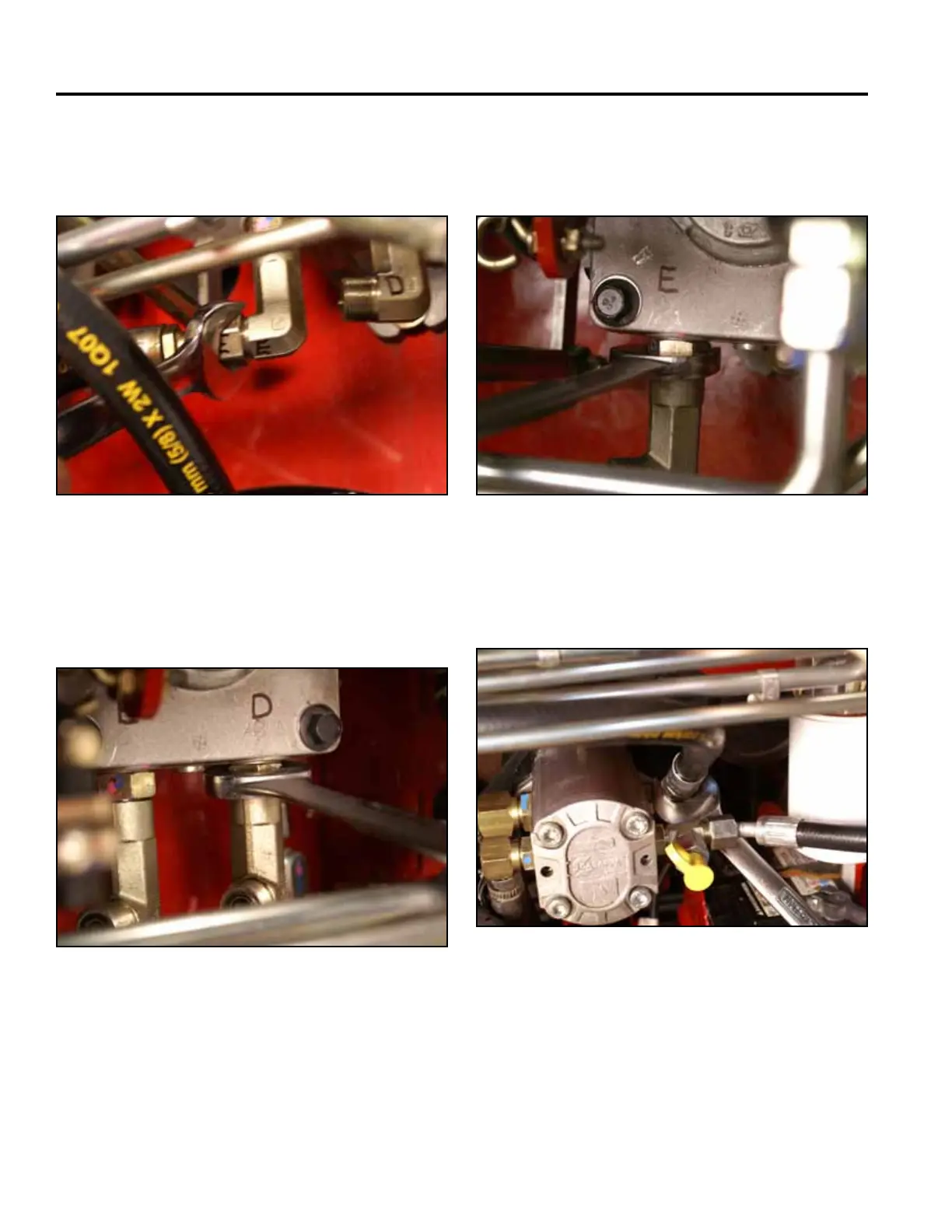

Fig 1348 PICT-4645
20. Using a 15/16” wrench, remove the wheel motor
hosettingsmarked“D”fromtherighthandhy-
draulic pump (Fig. 1349).
22. Using a 1-1/8” wrench, remove the hydraulic hose
marked“F”fromthetandempumptting(Fig.1351).
Fig 1349 PICT-4750
Fig 1351 PICT-4734
21. Using a 15/16” wrench, remove the wheel motor
hosettingsmarked“E”fromtherighthand
hydraulic pump (Fig. 1350).
Fig 1350 PICT-4751a
