DRIVE SYSTEM
7-33TX525 Service Manual Rev. 000
14. Install the hairpin cotter (Fig. 1384).

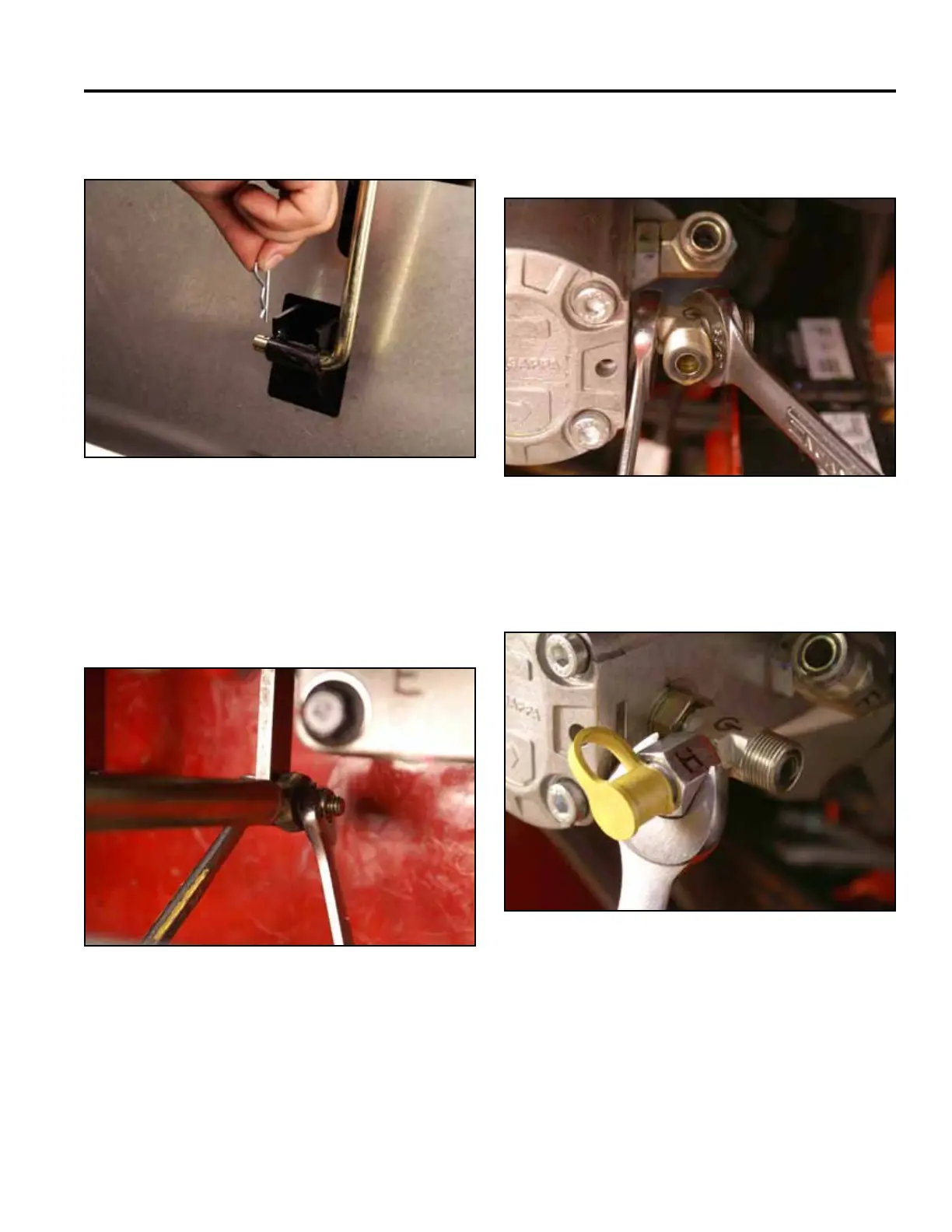

Fig 1384 Belt 001
15. Lower the hood.
16. Using a 1/2” socket and wrench, install the nut and
bolt securing the steering linkage to the right hand
pump control arm (Fig. 1385).
Fig 1385 PICT-4752
17. InstalltheT-ttingmarked“G”intothetandempump
(Fig. 1386).
Fig 1386 PICT-4742a
18. Usinga15/16”wrench,installthetestporttting“H”
ontotheT-ttingmarked“G”(Fig.1387).
Fig 1387 PICT-4741a
