DRIVE SYSTEM
7-35TX525 Service Manual Rev. 000

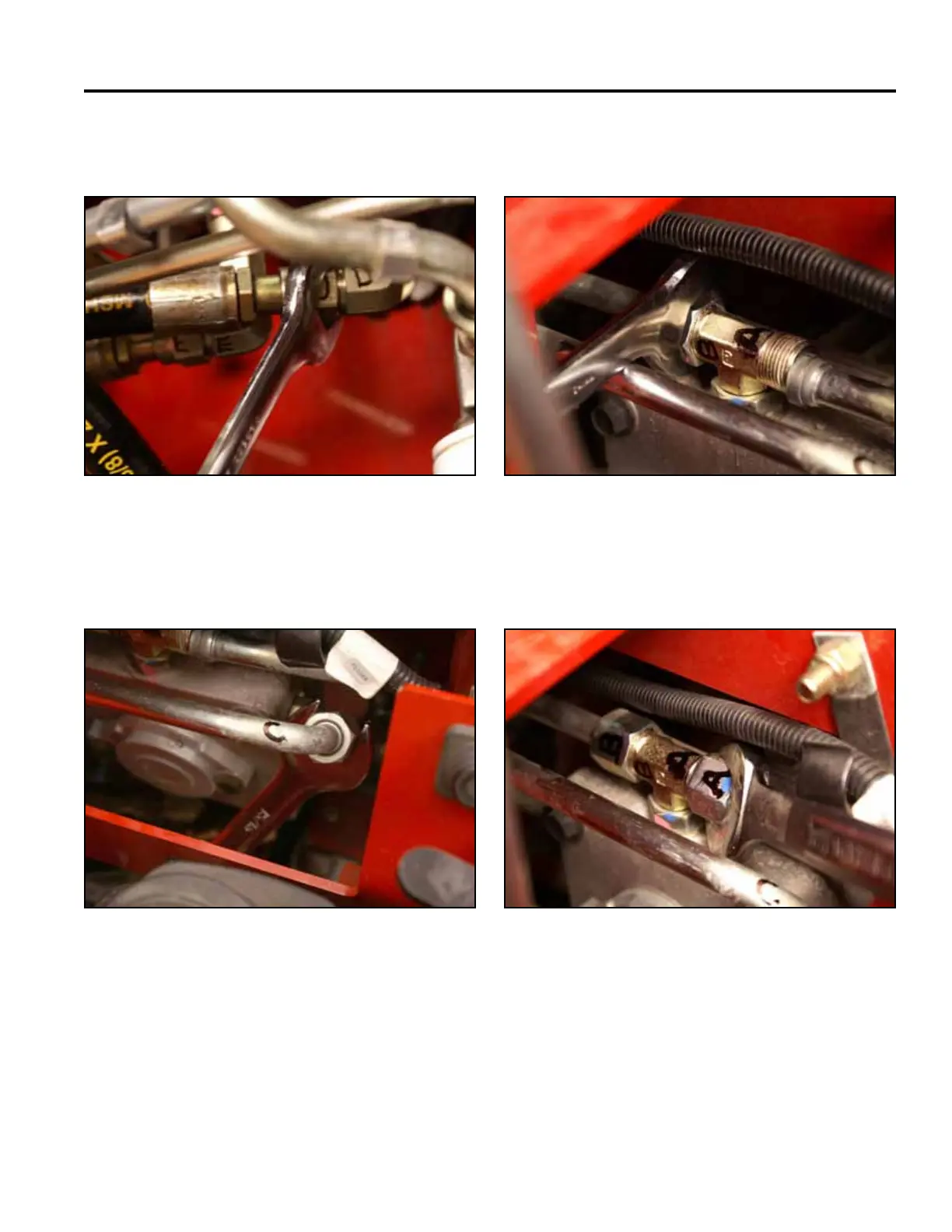

D. Wheelmotorhosemarked“D”tothetting
marked “D” (Fig. 1392).
Fig 1392 PICT-4644
C. Casedrainlinemarked“C”tothettingmarked
“C” (Fig. 1393).
Fig 1393 PICT-4643a
B. Inlet line from the left hand hydrostatic pump
marked“B”tothettingmarked“B”(Fig.1394).
Fig 1394 PICT-4641
A. Inletlinefromthehydraulicoilltermarked“A”
tothettingmarked“A”(Fig.1395).
Fig 1395 PICT-4636
