DRIVE SYSTEM
7-52 Rev. 000 TX525 Service Manual

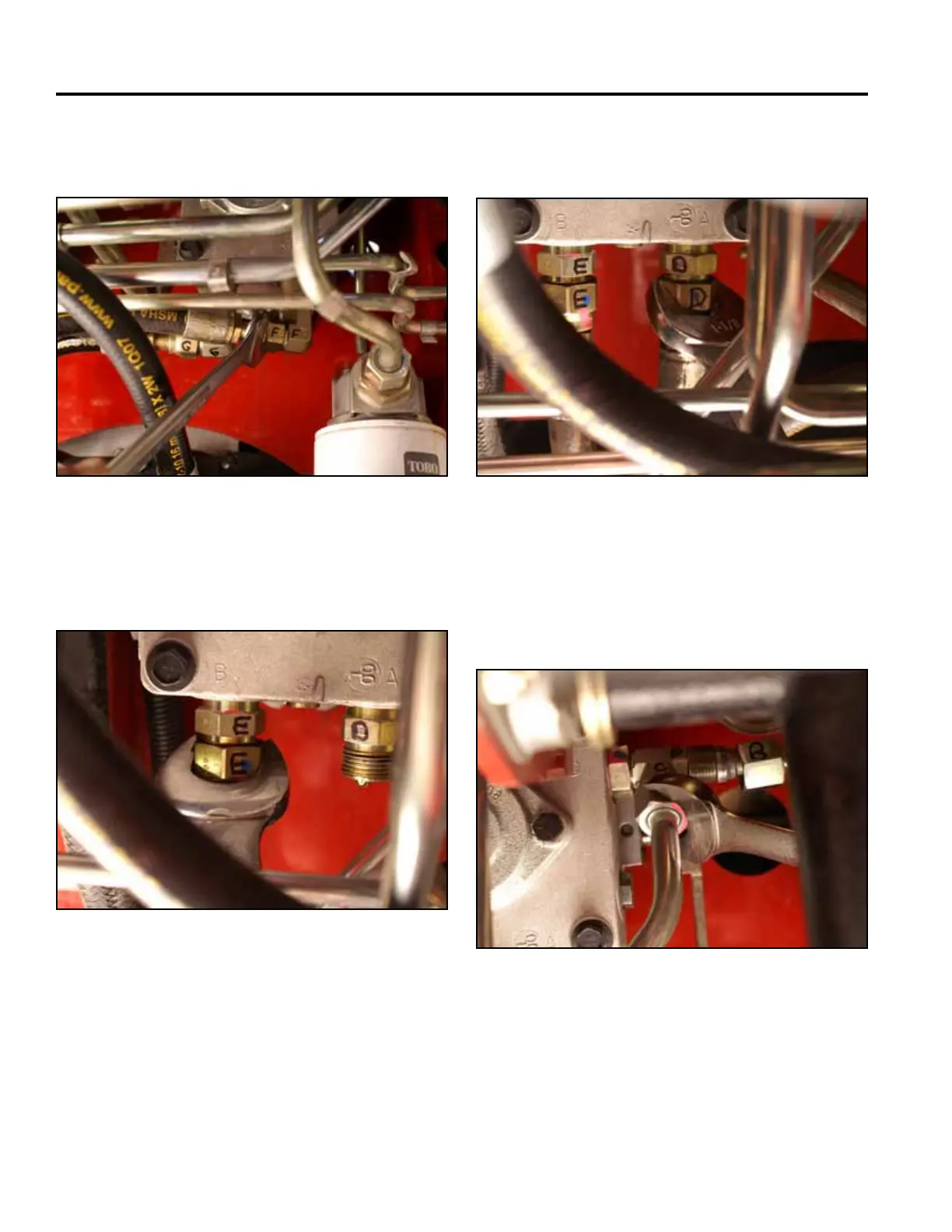

F. Hydraulic hose coming from the lower port on
the left hand wheel motor (Fig. 1459).
Fig 1459 PICT-4621
E. Hydraulic hose coming from the upper port on
the right hand wheel motor (Fig. 1460).
Fig 1460 PICT-4616
D. Hydraulic hose coming from the lower port on
the right hand wheel motor (Fig. 1461).
Fig 1461 PICT-4615
17. Using a 15/16” wrench, connect the left hand hydro-
static pump lines as follows:
C. Case drain line returning to the hydraulic oil tank
(Fig. 1462).
Fig 1462 PICT-4614
