BRAKES
8-22 Rev. 000 TX525 Service Manual

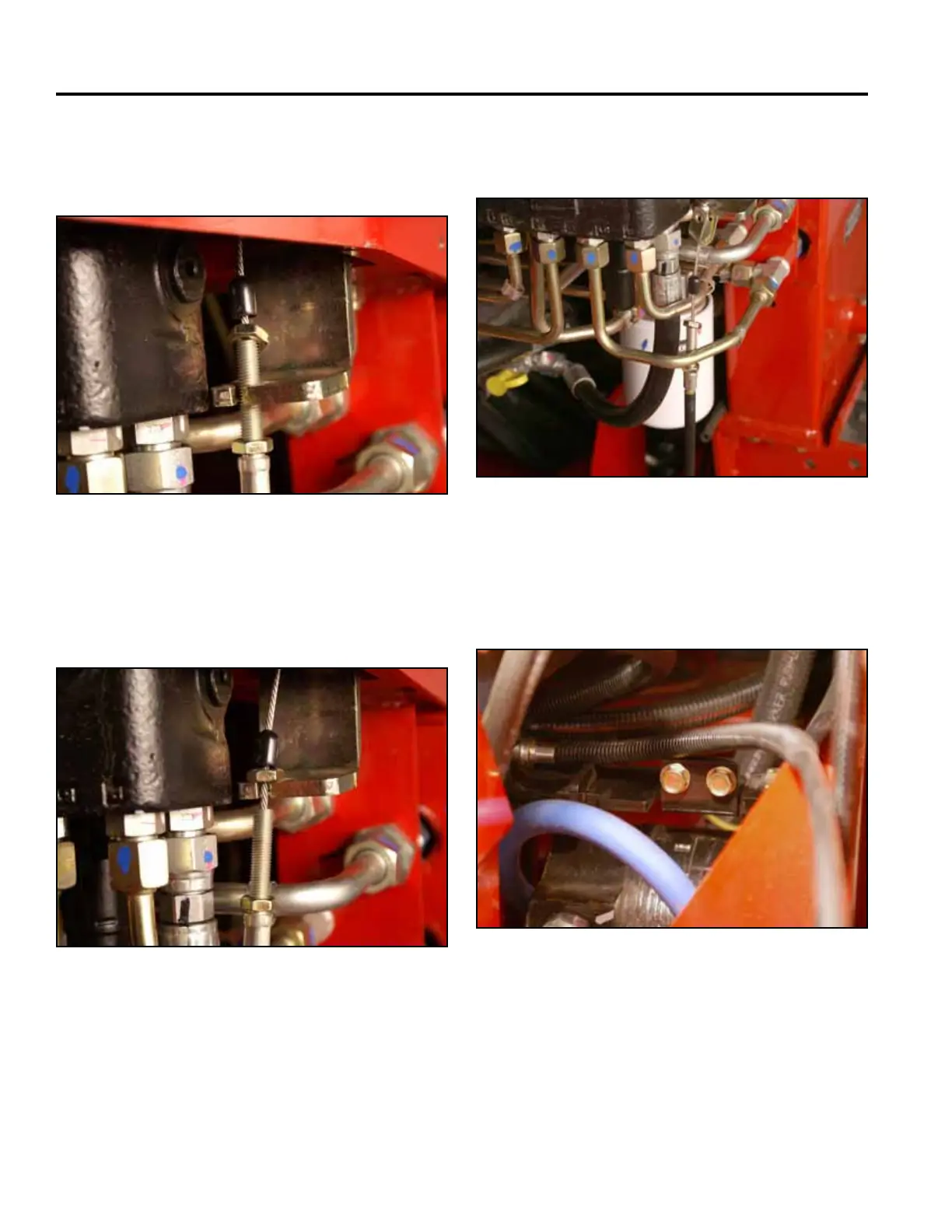

20. Pull down on the cable and slide the threaded
portion of the brake cable assembly out of the slot
(Fig. 1717).
Fig 1717 PICT-4351
21. Pull the brake cable down through the hydraulic lines
(Fig. 1718).
19. Slide the rubber boot up onto the brake cable and
remove the top nut from the threaded portion of the
brake cable (Fig. 1716).
Fig 1718 PICT-4352a
Fig 1716 PICT-4350
22. Using a 1/2” socket, remove the 2 bolts holding the
right brake plate to the right brake mounting bracket
(Fig. 1719).
Fig 1719 PICT-4355a
