BRAKES
8-30 Rev. 000 TX525 Service Manual

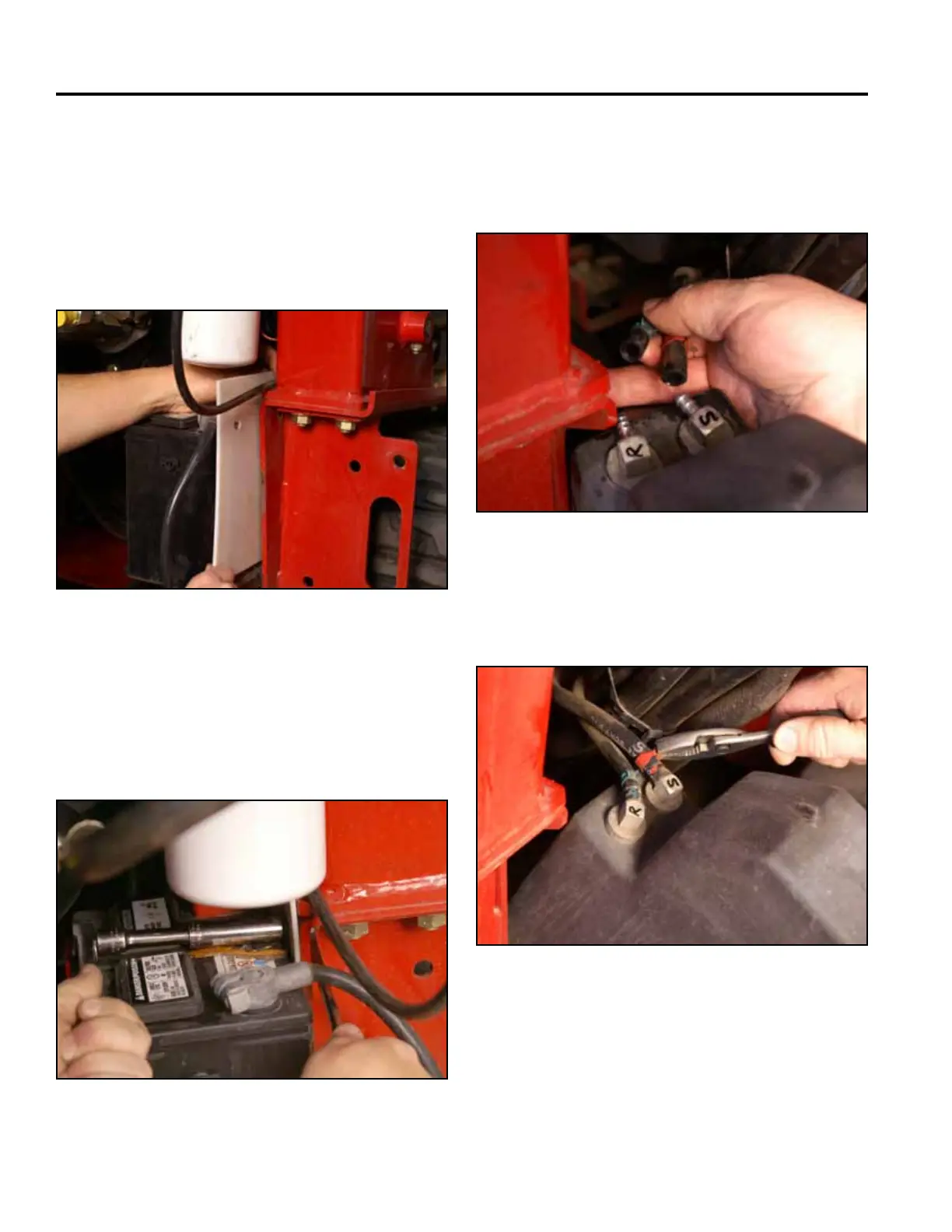

14. Slide the battery partially into the battery mount.
Install the positive battery cable to the positive
battery terminal. Slide the battery farther into the
battery mount. Install the negative battery cable to
the negative battery terminal. Slide the battery guard
in between the battery and the frame so that the hole
in the guard lines up with the battery clamp mounting
hole in the frame (Fig. 1745).
Fig 1745 PICT-4330
15. Position the battery clamp into the slot on the battery
mount and line up the mounting hole with the hole in
the frame. Using a 1/2” socket and wrench, install a
bolt, washer and nut to secure the battery clamp to
the frame (Fig. 1746).
17. Position the 2 fuel hose clamps to secure the fuel
linestothefueltankttings(Fig.1748).
Fig 1746 PICT-4310a
Fig 1748 PICT-4264
16. Slidethe2fuellinesontothefueltankttings.Note
the location markings (Fig. 1747).
S - Fuel suction line
R - Fuel return line
Fig 1747 PICT-4265
