ENGINE
4-3TX525 Service Manual Rev. 000

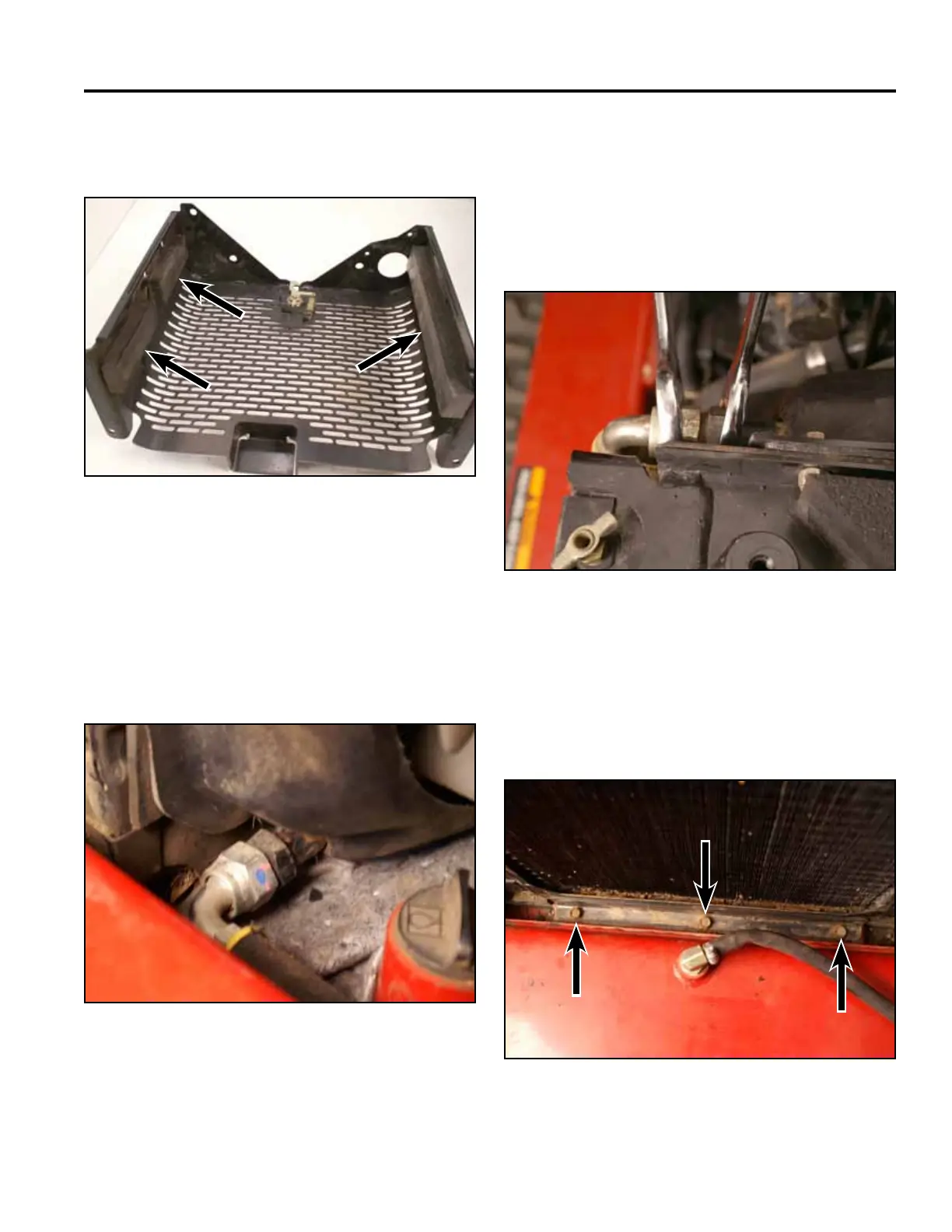

11. Placeanabsorbenttowelundertheoilcoolerinlet
ttinglocatedonthelowerlefthandcorneroftheoil
cooler.
12. Usinga1-1/16”anda1-1/8”wrench,removetheoil
coolerinletlinefromtheoilcoolerinlettting(Fig.
0087).
14. Placeanabsorbenttowelundertheoilcooleroutlet
ttinglocatedontheupperrighthandcornerofthe
oil cooler.
15. Usinga1-1/16”anda1-1/8”wrench,removetheoil
cooleroutletlinefromtheoilcooleroutlettting(Fig.
0088).
Fig 0088 PICT-4968a
Fig 0087 PICT-4965
16. Capthehydrauliclineandttingsodebrisdoesnot
enterthesystem.
17. Usinga1/2”socket,removethe3boltssecuringthe
radiatormounttotheframe(Fig.0089).
Fig 0089 PICT-4969
10. Inspectthefoamsealsontheinsideofthegrillas-
sembly.Replaceifwornordamaged(Fig.0086).
13. Capthehydrauliclineandttingsodebrisdoesnot
enterthesystem.
Fig 0086 PICT-5138a
