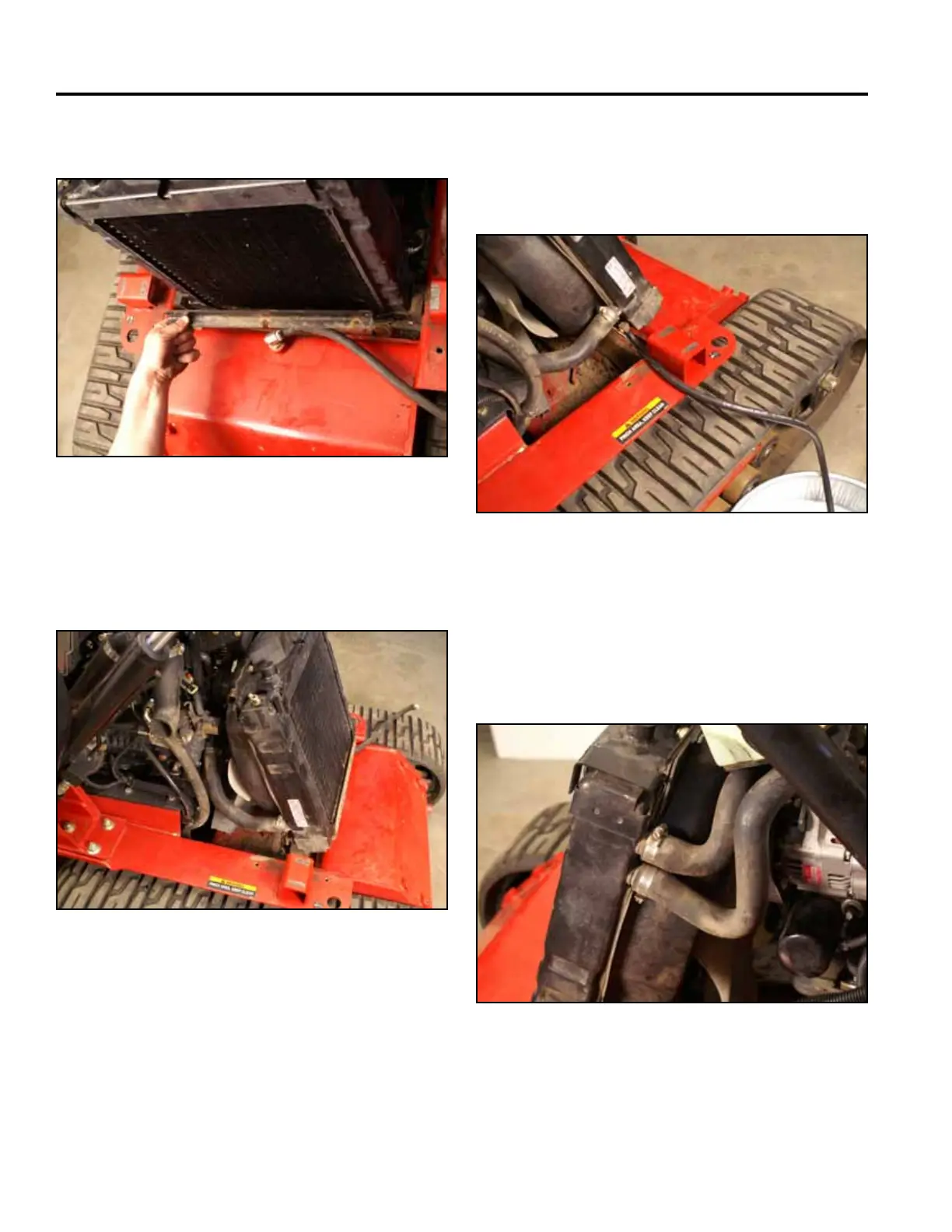

18. Removethefrontradiatormount(Fig.0090). 20. Slidealengthof5/16”hoseontothepetcockdrain.
Placetheotherendofthehoseintoadrainpan.
Openthepetcockandremovetheradiatorcapto
drainthecoolant(Fig.0092).
Fig 0092 PICT-4974
Fig 0090 PICT-4971
21. Removethedrainhoseandclosethepetcock.
22. Loosenthe2hoseclampssecuringthe2radiator
hosestothelefthandsideoftheradiator(Fig.
0093).
19. Tilttheradiator/oilcoolerassemblyforwardandlift
itoutoftheframesothatthepetcockdrainisabove
theframe(Fig.0091).
Fig 0093 PICT-4975
Fig 0091 PICT-4973
