8-48 Phaser 6250 Color Laser Printer Service Manual
12. On the right side of the printer, disconnect P/J50 and P/J52 from the Motor
Driver Board .
13. Free the wiring harness on the right side from the wire guides on the right side of
the printer housing.

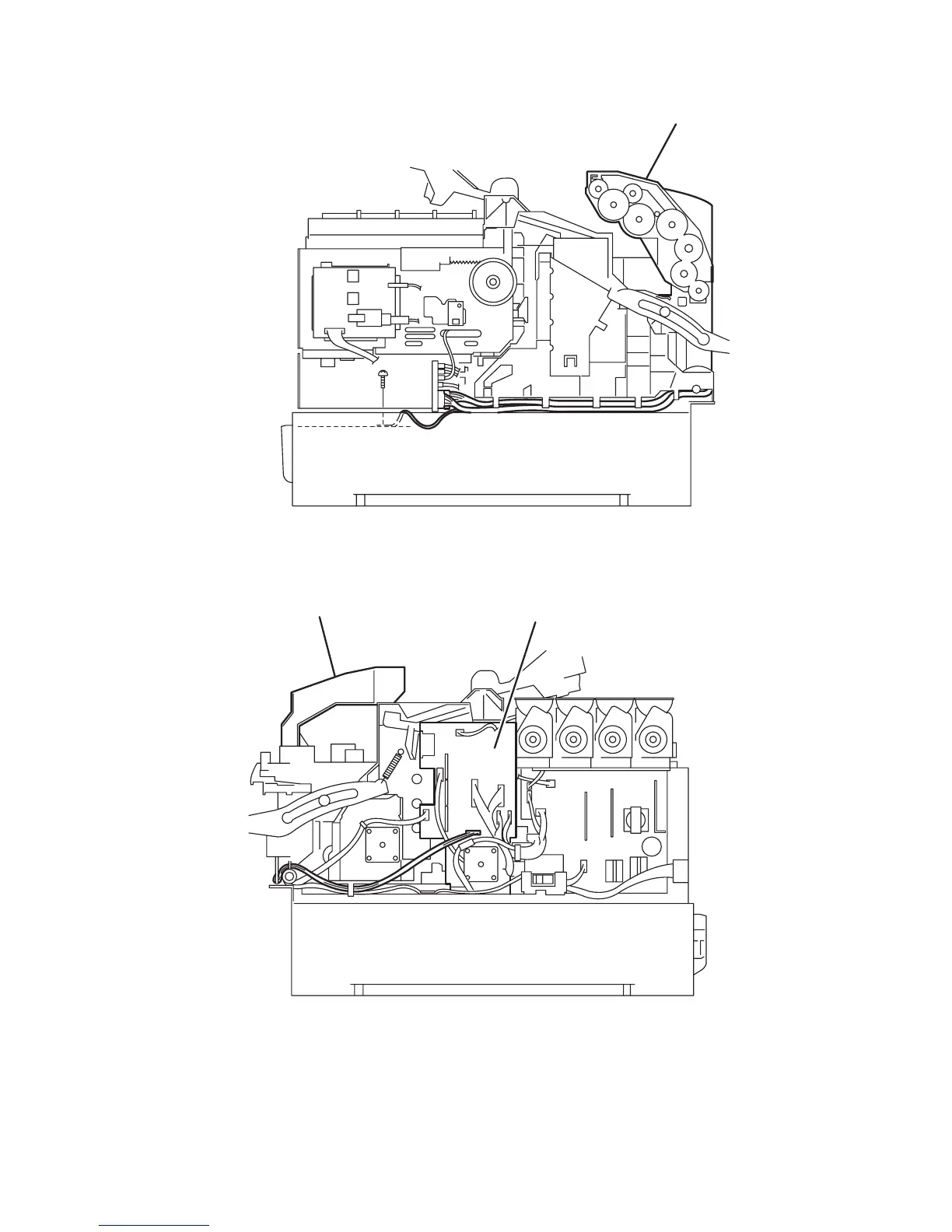

CHUTE ASSY OUT
CHUTE ASSY OUT
LEFT SIDE VIEW
RIGHT SIDE VIEW
MOTOR DRIVER BOARD
6250-175
