YASKAWA AC Drive-A1000 User Manual

Digital Operator
Display
Name
Minor Fault
Output
(H2-oo =
10)
Page
rUn
During Run 2, Motor Switch
Command Input
YES 322
SE
MEMOBUS/Modbus Test Mode
Fault
YES 322
TrPC IGBT Maintenance Time (90%) YES 322
UL3 Undertorque 1 YES 322
Digital Operator
Display
Name
Minor Fault
Output
(H2-oo =
10)
Page
UL4 Undertorque 2 YES 323
UL5
Mechanical Weakening
Detection 2
YES 314
Uv Undervoltage YES 323
voF Output Voltage Detection Fault YES 323
<1>
Output when H2-oo = 2F.
<2> Terminals H1, H2, DM+, and DM- on 600 V class models are designed to the functionality, but are not certified to EN61800-5-1, EN954-1/ISO13849
Cat. 3, IEC/EN61508 SIL2, Insulation coordination: class 1.
n
Operation Errors

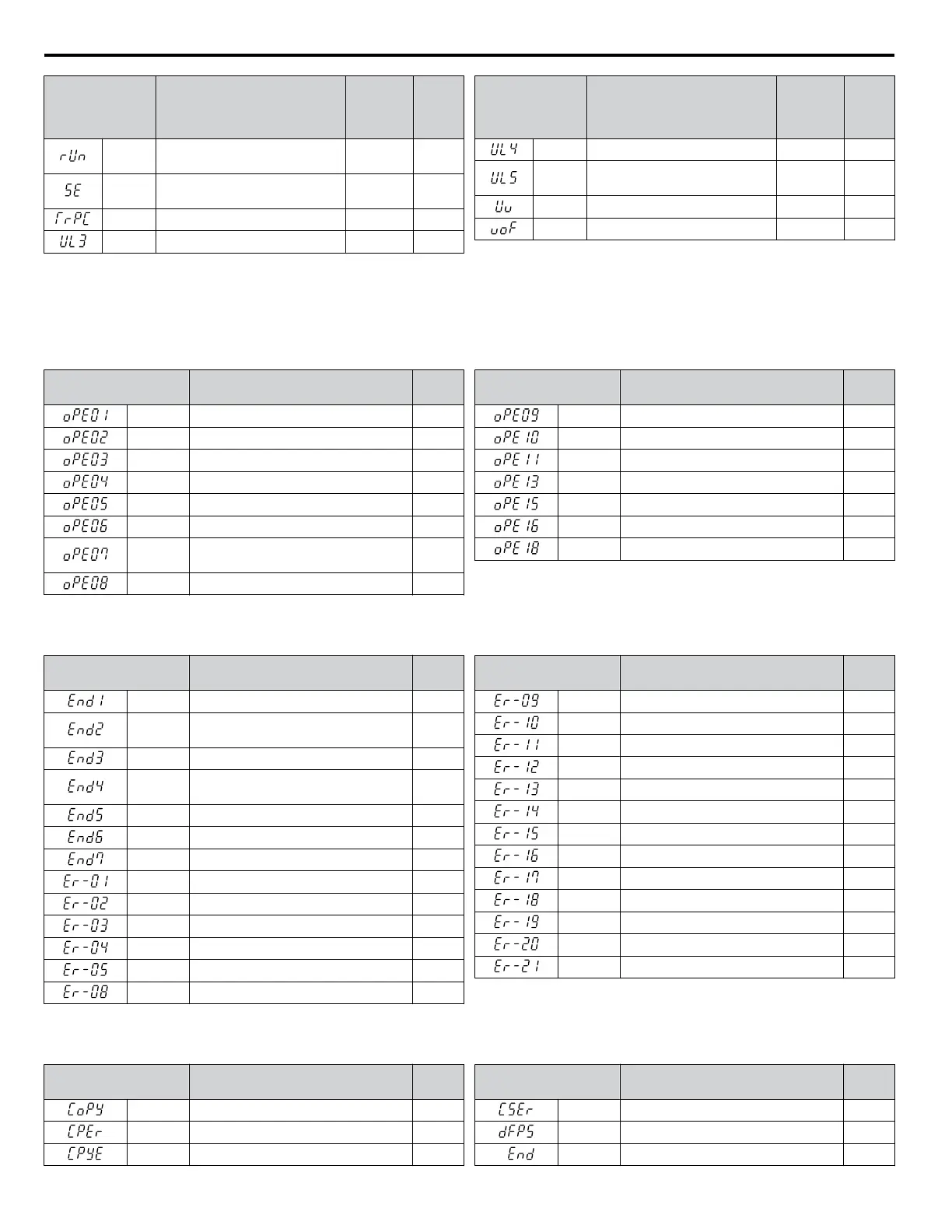

Table 6.11 Operation Error Displays
Digital Operator
Display
Name Page
oPE01 Drive Unit Setting Error 324
oPE02 Parameter Setting Range Error 324
oPE03 Multi-Function Input Setting Error 324
oPE04 Terminal Board Mismatch Error 325
oPE05 Run Command Selection Error 325
oPE06 Control Method Selection Error 325
oPE07
Multi-Function Analog Input Selection
Error
325
oPE08 Parameter Selection Error 326
Digital Operator
Display
Name Page
oPE09 PID Control Selection Error 326
oPE10 V/f Data Setting Error 326
oPE11 Carrier Frequency Setting Error 327
oPE13 Pulse Train Monitor Selection Error 327
oPE15 Torque Control Setting Error 327
oPE16 Energy Saving Constants Error 327
oPE18 Online Tuning Parameter Setting Error 327
n
Auto-Tuning Errors
Table 6.12 Auto-Tuning Error Displays
Digital Operator
Display
Name Page
End1 Excessive V/f Setting 328
End2
Motor Iron Core Saturation Coefficient
Error
328
End3 Rated Current Setting Alarm 328
End4
Adjusted Slip Value Fell Below Lower
Limit
328
End5 Resistance Between Lines Error 328
End6 Leakage Inductance Alarm 328
End7 No-Load Current Alarm 328
Er-01 Motor Data Error 329
Er-02 Alarm 329
Er-03 STOP Button Input 329
Er-04 Line-to-Line Resistance Error 329
Er-05 No-Load Current Error 329
Er-08 Rated Slip Error 329
Digital Operator
Display
Name Page
Er-09 Acceleration Error 330
Er-10 Motor Direction Error 330
Er-11 Motor Speed Error 330
Er-12 Current Detection Error 330
Er-13 Leakage Inductance Error 330
Er-14 Motor Speed Error 2 330
Er-15 Torque Saturation Error 330
Er-16 Inertia ID Error 330
Er-17 Reverse Prohibited Error 331
Er-18 Induction Voltage Error 331
Er-19 PM Inductance Error 331
Er-20 Stator Resistance Error 331
Er-21 Z Pulse Correction Error 331
n
Errors and Displays When Using the Copy Function
Table 6.13 Copy Errors
Digital Operator
Display
Name Page
CoPy Writing parameter settings (flashing) 332
CPEr Control mode mismatch 332
CPyE Error writing data 332
Digital Operator
Display
Name Page
CSEr Copy unit error 332
dFPS Drive model mismatch 332
End Task complete 332
6.3 Drive Alarms, Faults, and Errors
298
YASKAWA ELECTRIC SIEP C710616 31B YASKAWA AC Drive – A1000 Technical Manual
